ALP 500 - Heat protection made of E-glass fabric

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

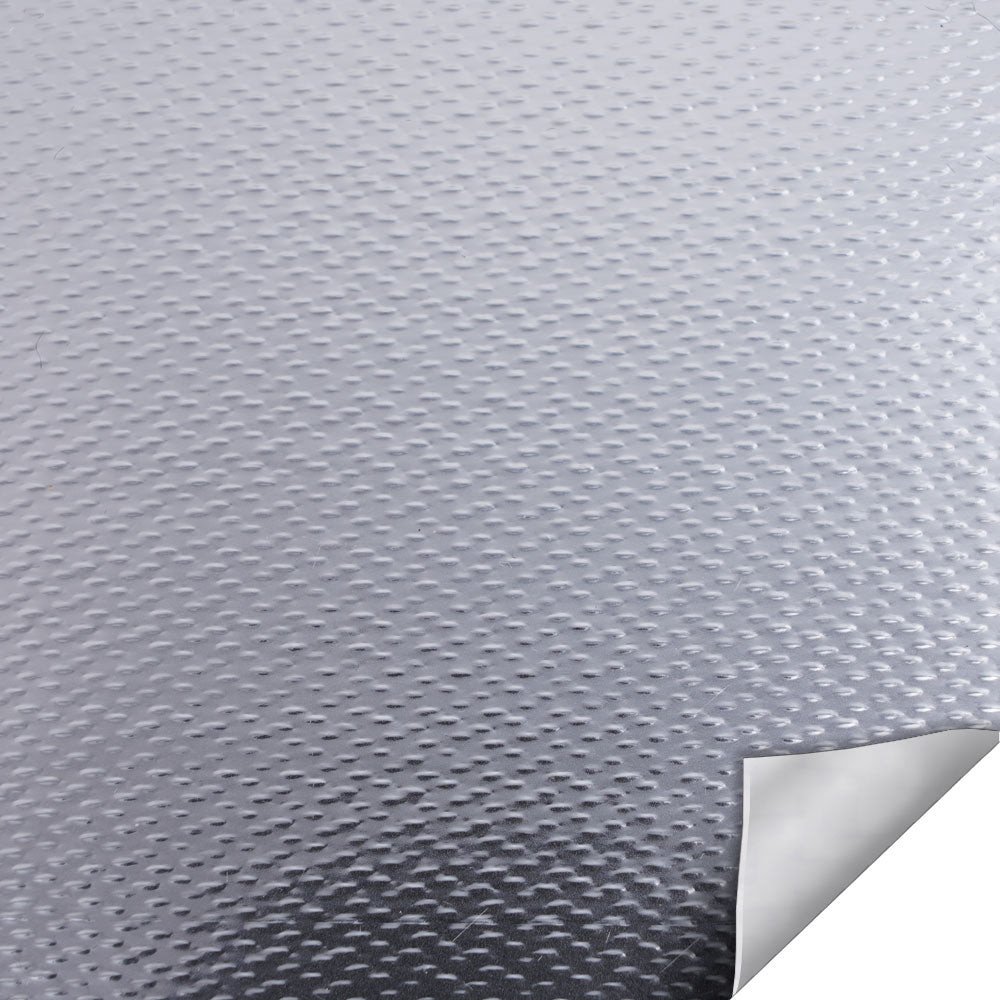

ALP 500 is a multi-layered heat protection material based on an E-glass fabric, laminated on both sides with aluminized PET film and coated with PU on the reverse side. The material structure combines good thermal resistance with low weight and high flexibility.



Typical Material Properties

  • E-glass fabric with aluminized PET film on both sides
  • PU coated on the reverse side
  • Weight: approx. 490 g/m²
  • Thickness: approx. 0.45 mm
  • Temperature range: –50 °C to +180 °C continuously, +200 °C for short periods



Typical Applications

  • Heat-reflective thermal insulation
  • Shielding against radiant heat
  • Industrial heat protection applications



Specifications

  • REACH:Compliant
  • Flammability:Self-extinguishing
  • Thickness:0.017 inch
  • Thickness deviation:+/- 15%
  • Maximum operating temperature:350°F (177°C)
  • Minimum operating temperature:-58°F (-50°C)
  • RoHS:RoHS-11
  • Durability:60 months
  • Tear resistance:>350 daN/50 mm (chain) | >250 daN/50 mm (filling)
  • Flexibility:Better

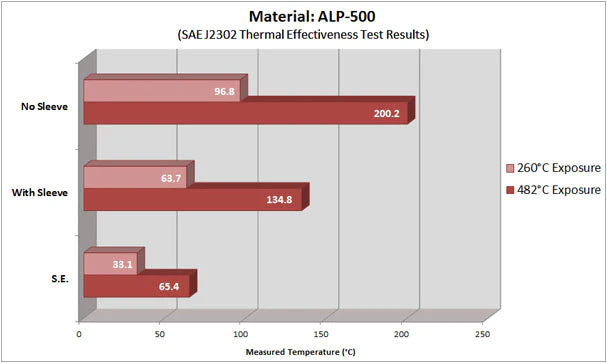

Thermal Eeffectiveness

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper Technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
