ALP 600 - Heat protection made of E-glass fabric

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

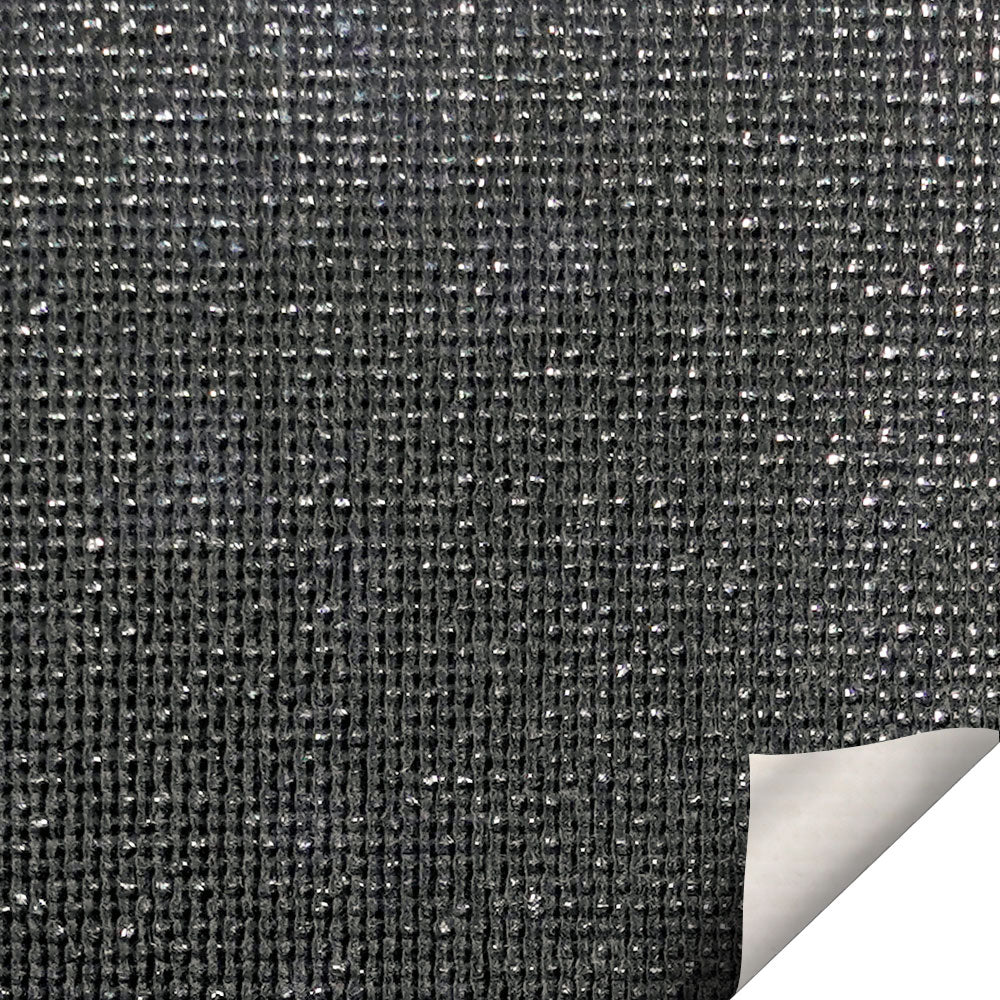

ALP 600 is a reinforced heat protection material based on an E-glass fabric with aluminized PET film on both sides and a PU-coated backing. Compared to ALP 500, it has a higher basis weight and greater material thickness.

Typical material properties

  • E-glass fabric with aluminized PET film
  • Back side PU-coated
  • Weight per unit area: approx. 800 g/m²
  • Thickness: approx. 0.85 mm
  • Temperature range: -50 °C to +180 °C continuous, +200 °C short-term

Typical areas of application

  • Heat protection with increased mechanical stability
  • Heat reflection in industrial environments
  • Shielding against radiant heat

Specifications

  • Basis weight:800 ± 15% g / m²
  • Thickness:0.85 ± 15%mm
  • Binding:canvas
  • Min. application temperature 24 hrs:- 50 °C
  • Max. application temperature permanent 1000 hours / short term 24 hours:+ 180 / + 200 °C
  • Fire behaviour:Passed 10 sec.

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
