ALSEAL-S10-ZIPVIRA - Thermal insulation with abrasion protection

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

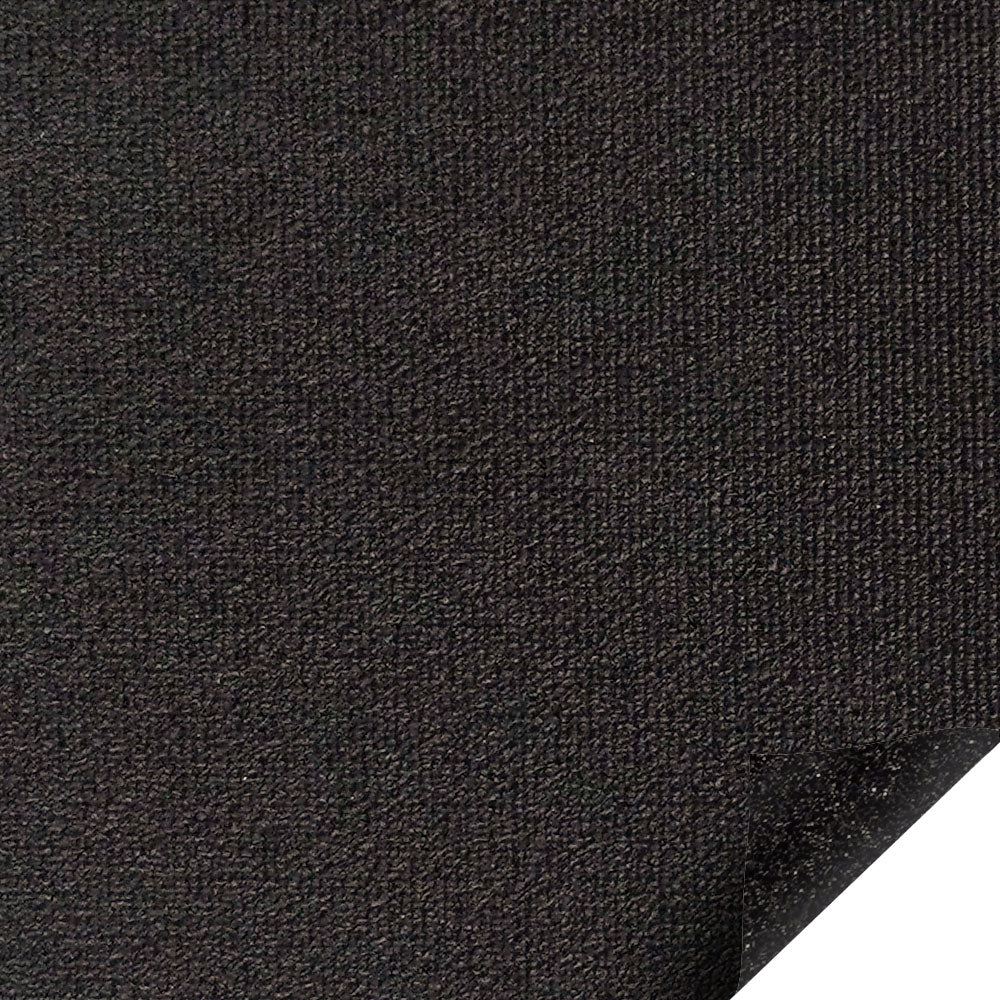

ALSEAL-S10-ZIPVIRA is a composite heat protection material made of TREVIRA-CS fabric coated on one side with PU on a PUR foam base. The construction combines effective thermal insulation with mechanical protection at a low weight.

Typical material properties

  • TREVIRA CS fabric, PU-coated on one side
  • PUR foam layer
  • Total thickness: approx. 10.5 mm
  • Weight per unit area: approx. 1060 g/m²
  • Temperature range up to +120 °C continuous

Typical areas of application

  • Insulating heat protection
  • Applications with additional mechanical protection
  • Automotive and industrial applications

Specifications

  • Basis weight:1060 ± 10% g / m²
  • Thick fabrics:0.6 ± 10%mm
  • Thickness PUR foam:10 ± 20%mm
  • Thickness composite material:10.5 ± 15%mm
  • Compressive stress CV40:5.9kPa
  • Min. application temperature 24 hrs:- 40 °C
  • Max. application temperature of fabric permanently 1000 hours / short-term 24 hours:+ 100 / + 125 °C
  • Max. application temperature PUR foam permanent 1000 hours / short term 24 hours:+ 120 / + 150 °C
  • Fire behaviour:B ≤ 5.00 mm / min

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
