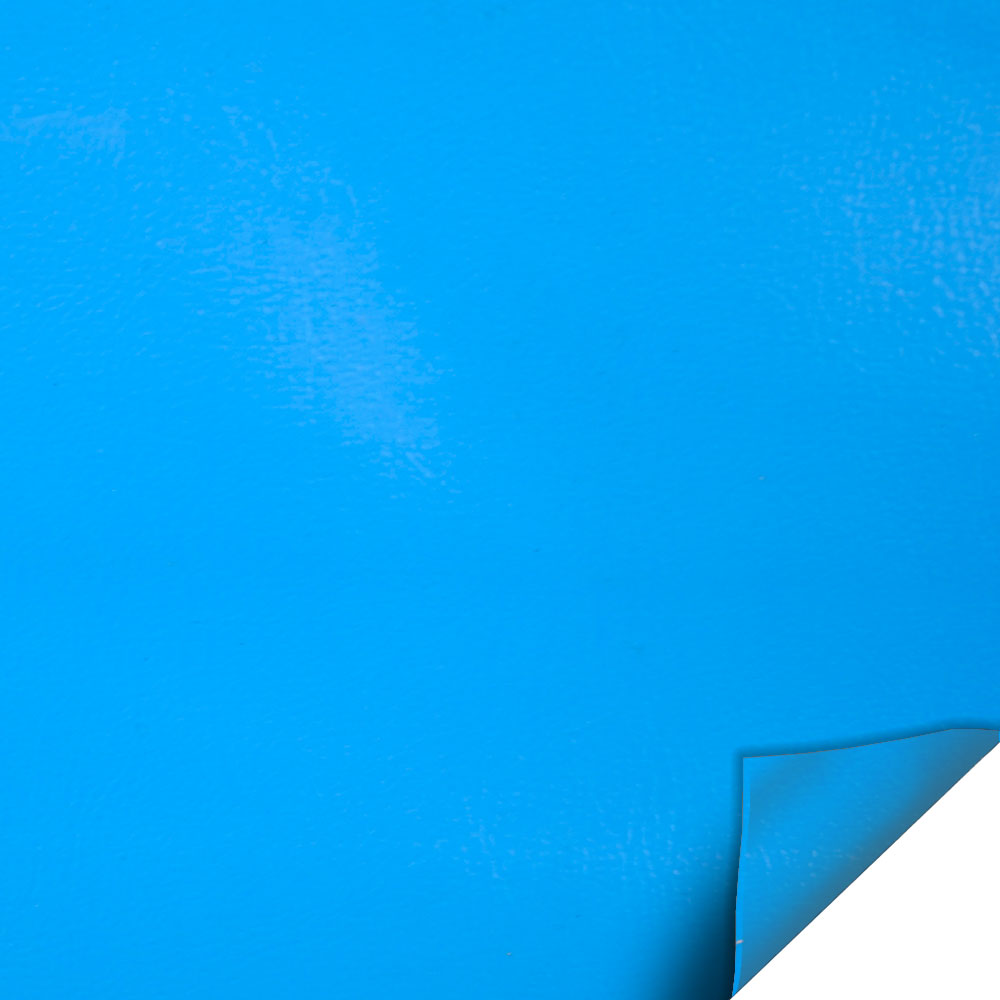

GP-0.35-BL - Soft PVC sheath in blue

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

GP-035-BL is a thin-walled, flexible PVC film in blue. It is suitable as a base material for cable sheathing with low wall thickness and defined electrical insulation.

Typical material properties

  • Soft PVC film, color: blue
  • Temperature range: -20 °C to +105 °C
  • Foil thickness: approx. 0.35 mm
  • High elongation at break
  • Dielectric strength: approx. 30 kV/mm

Typical areas of application

  • Thin-walled cable sheathing
  • Color-coded cable protection solutions
  • Industrial applications with limited installation space

Specifications

  • Color:blue
  • Temperature range:- 20 to + 105 °C
  • Film thickness:0.35 ±10%mm
  • Dimensional stability 10 min. / 60°C:-1.0 / +0.5%
  • Dielectric strength:approx. 30 kV / mm
  • Burning behavior:fulfilled
  • Locking system:All types of closure, zipper from D 12 mm

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
