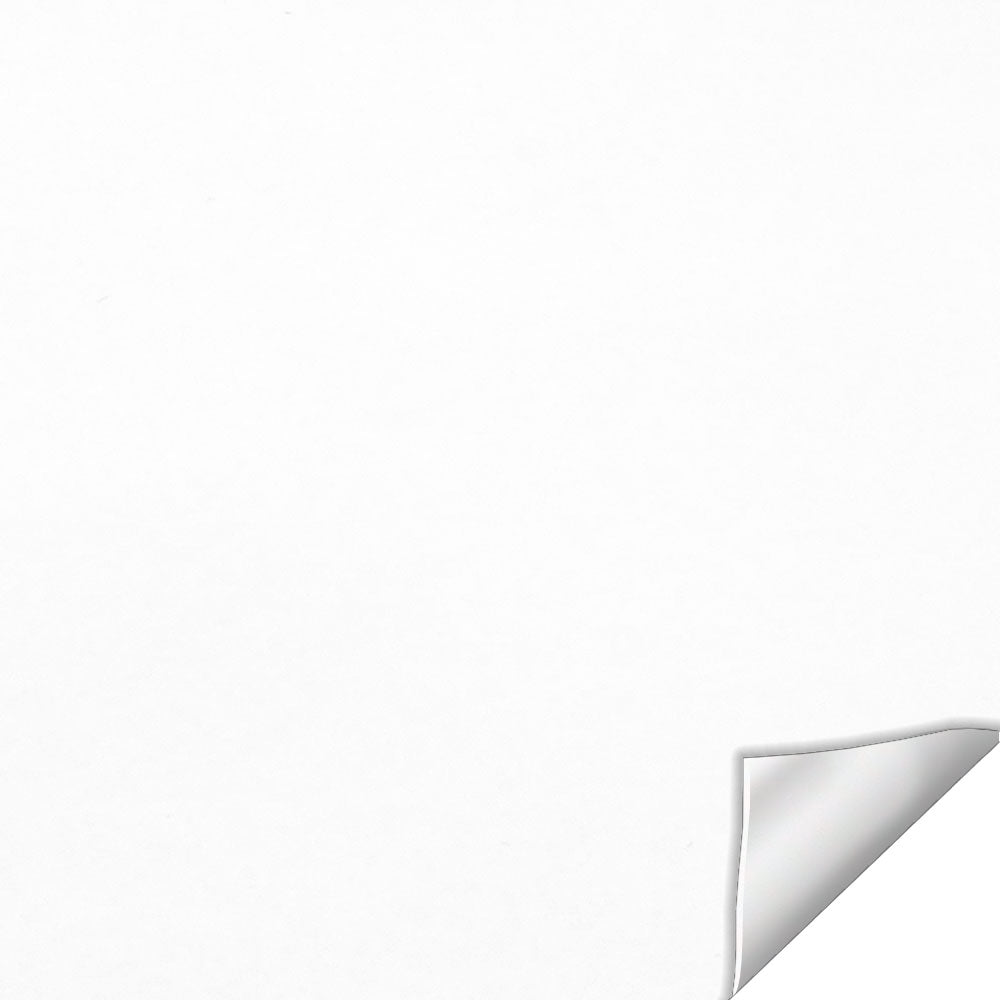

63-04-W - Soft PVC sheathing 0.4 mm in white

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

63-04-W is a soft white PVC film that is UL registered, self-extinguishing and cadmium-free. It serves as a base material for flexible cable sheathing where defined mechanical and electrical properties are required.

Typical material properties

  • Soft PVC film, color: white
  • Temperature range: -20 °C to +105 °C
  • UL-registered, self-extinguishing, cadmium-free
  • Foil thickness: approx. 0.4 mm
  • Dielectric strength: approx. 30 kV/mm
  • High elongation at break

Typical areas of application

  • Base material for flexible cable sheathing
  • Industrial applications requiring self-extinguishing PVC film
  • Environments with electrical insulation requirements

Specifications

  • Color:white
  • Temperature range:- 20 to + 105°C
  • Film thickness:0.4 ±10%mm
  • Dimensional stability 10 min. / 60°C:-1.0 / +0.5%
  • Dielectric strength:approx. 30 KV / mm
  • Burning behavior:fulfilled
  • Locking system:All types of closure, zipper from D 12 mm

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
