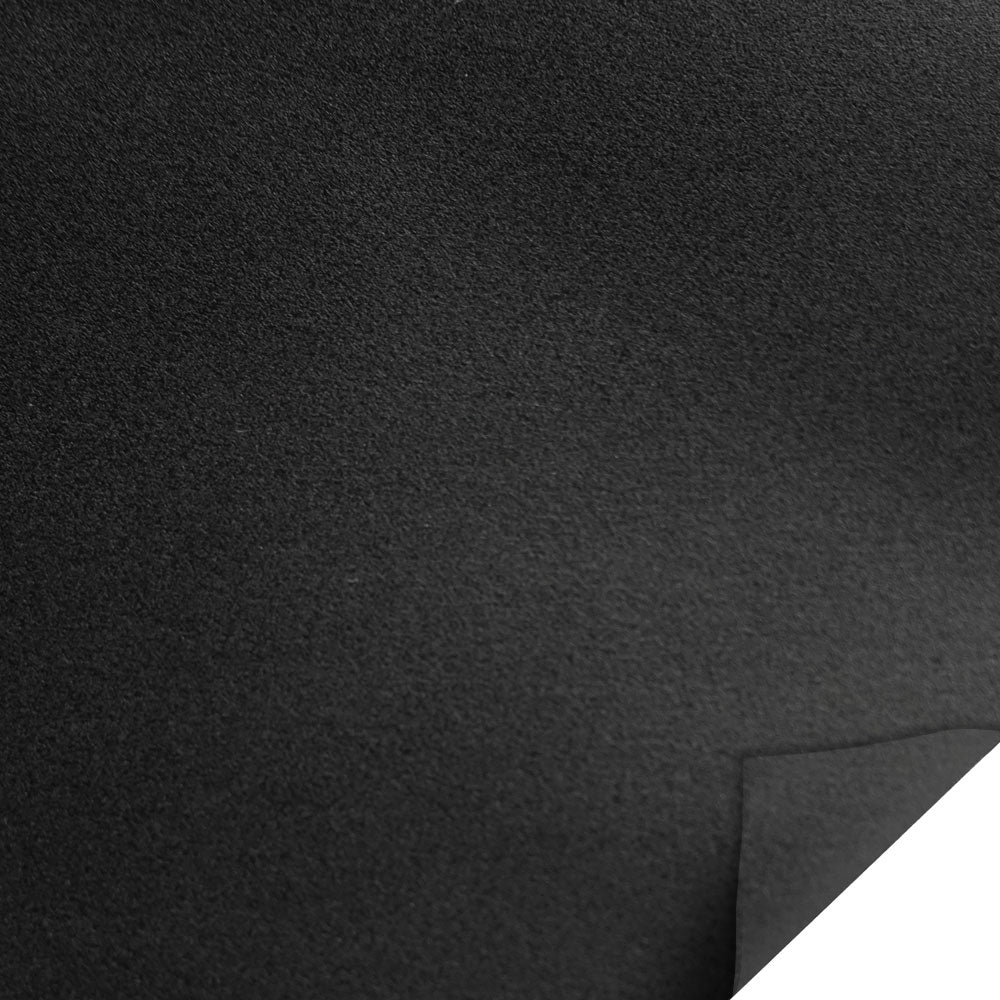

GP-05 - Soft PVC sheath 0.5 mm

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

GP-05 is a robust, soft black PVC film that is self-extinguishing and cadmium-free. It is designed for cable sheathing with increased mechanical requirements and extended temperature ranges.

Typical material properties

  • Soft PVC film, color: black
  • Temperature range: -40 °C to +105 °C
  • Self-extinguishing, cadmium-free
  • Foil thickness: approx. 0.5 mm
  • High basis weight
  • High electrical dielectric strength

Typical areas of application

  • Robust cable sheathing
  • Industrial applications with low temperatures
  • Cable protection solutions for increased mechanical stress

Specifications

  • Color:black
  • Temperature range:- 40 to + 105 °C
  • Basis weight:680 ± 15 g/m²
  • Film thickness:0.5 ± 10 % mm
  • Dimensional stability 10 min. / 70°C:max. -2.5%
  • Dielectric strength:>30kV/mm
  • Burning behavior:Self-extinguishing, K1, B2
  • Locking system:All types of closure, zipper from D 12 mm

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
