GPs - Soft PVC sheath 0.3 mm

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

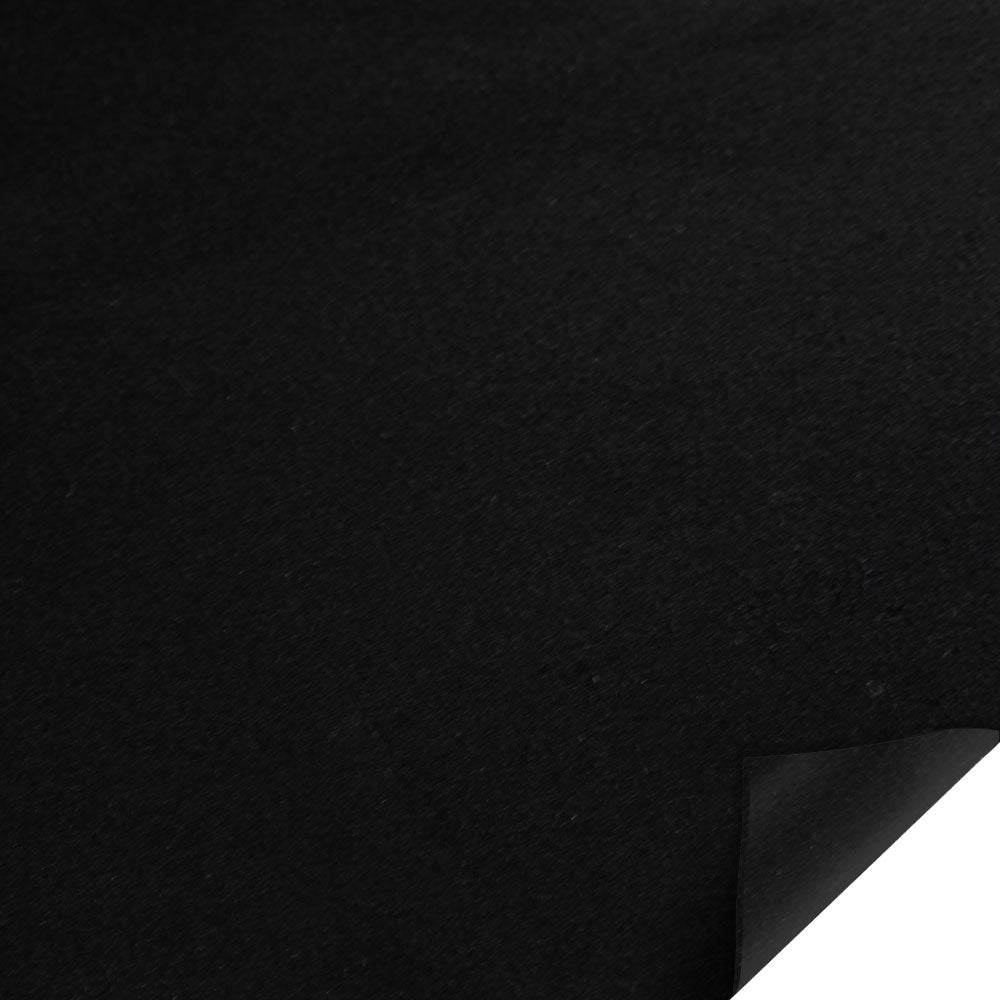

GPs is a lightweight, flexible black PVC film that is self-extinguishing. It is suitable as a material base for cable sheathing with low weight and high electrical insulation capacity.

Typical material properties

  • Soft PVC film, color: black
  • Temperature range: -40 °C to +105 °C
  • Self-extinguishing
  • Thin film
  • Low basis weight
  • Very high dielectric strength

Typical areas of application

  • Lightweight, flexible cable sheathing
  • Applications with a focus on low weight
  • Industrial cable protection solutions with insulation requirements

Specifications

  • Color:black
  • Temperature range:- 40 to + 105 °C
  • Basis weight:385 ± 5 g/m²
  • Locking system:Zipper from D12 mm
  • Film thickness:0.3 ± 10%mm
  • Dimensional stability 10 min. / 70°C:max. -2.5%
  • Dielectric strength:>35kV/mm
  • Burning behavior:Self-extinguishing, K1, B2

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
