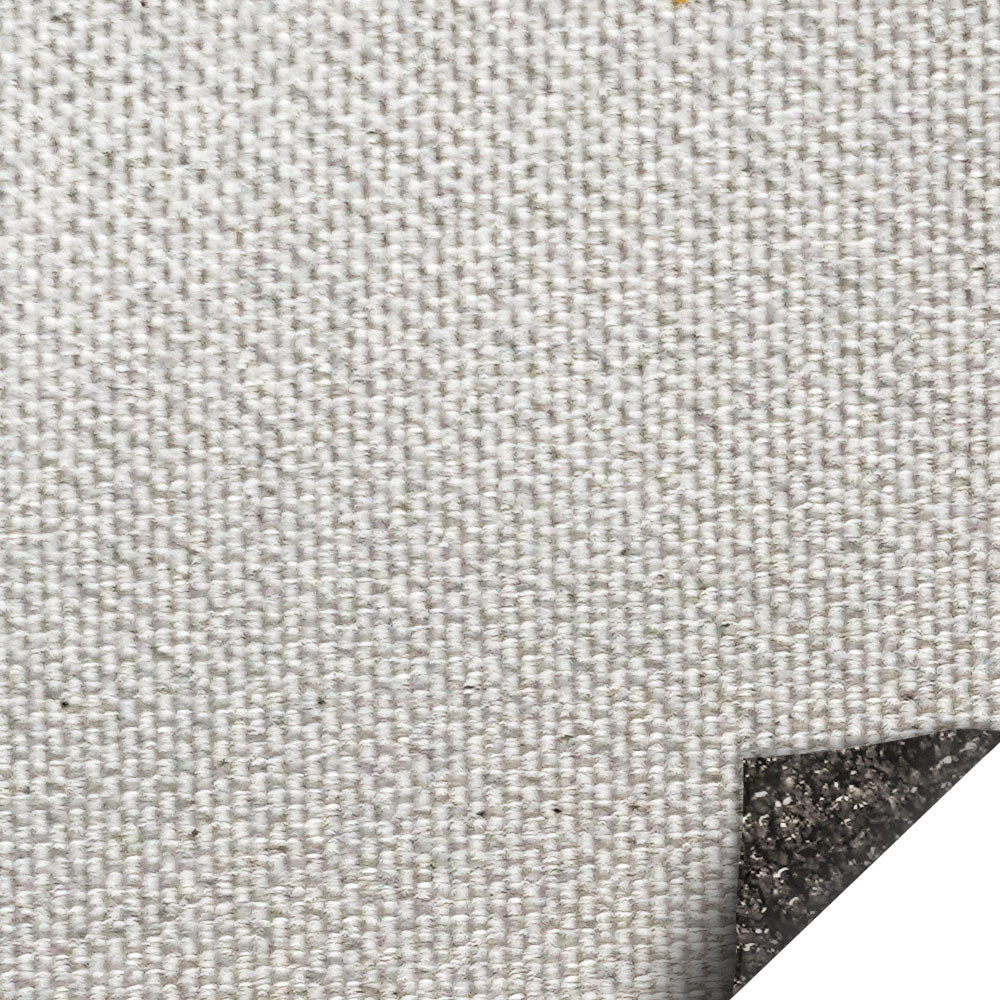

GRAPEX-1000 - Glass fibre fabric with expanded graphite

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

GRAPEX 1000 is a flame-resistant, heat-resistant material based on a glass fabric reinforced with stainless steel threads and an intumescent graphite coating.

Typical material properties

  • Glass fabric with stainless steel threads
  • Intumescent graphite coating
  • Weight per unit area: approx. 1000 g/m²
  • Thickness: approx. 0.97 mm
  • Temperature range: -50 °C to +180 °C

Typical areas of application

  • Flame retardant and fire protection applications
  • Active heat protection in case of fire exposure
  • Commercial vehicle and industrial applications

Specifications

  • Basis weight:1000 +/-15% g / m²
  • Thickness:0.97 +/-15%mm
  • Binding:Panama
  • Tensile strength of warp (raw fabric):900 +/-10% N / cm
  • Tear strength weft (raw fabric):800 +/-10% N / cm
  • Temperature behavior:The non-reversible expansion of the expandable graphite begins at approx. 180°C and protects against further exposure to heat and fire
  • Burning behavior:self-extinguishing

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
