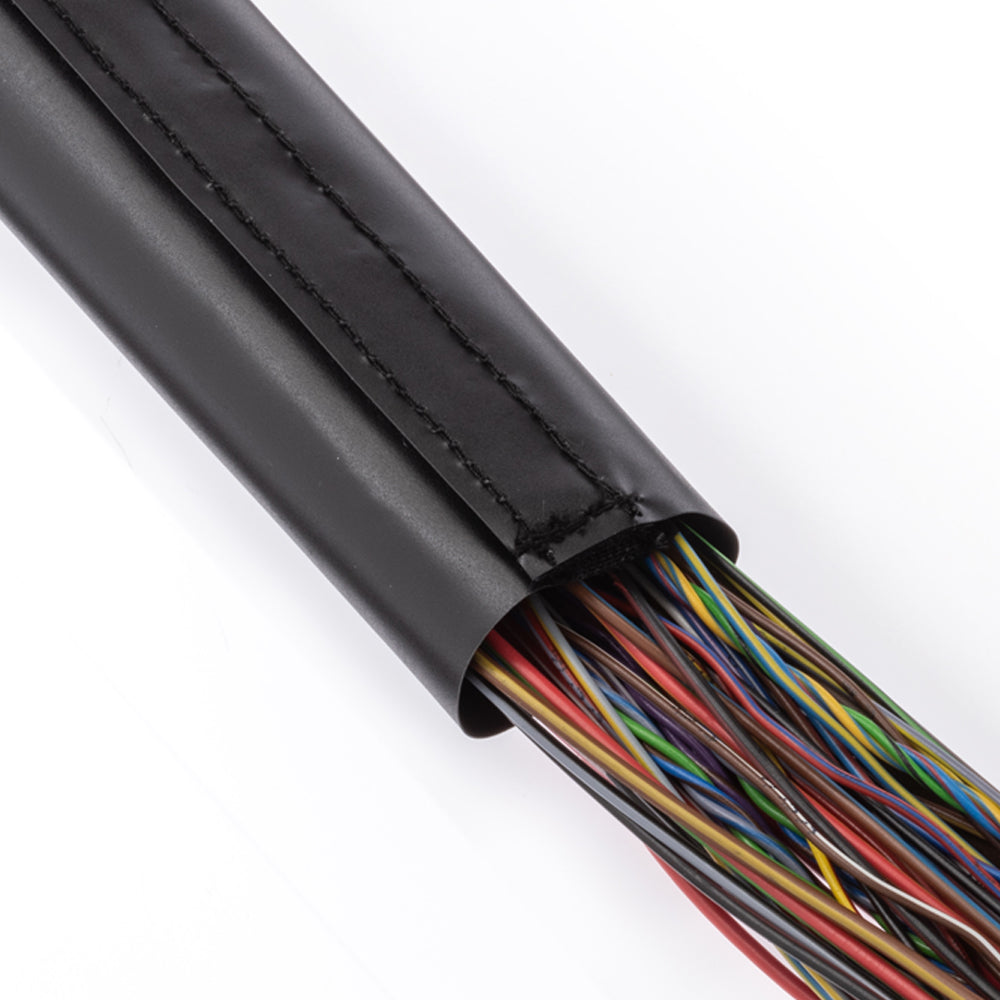

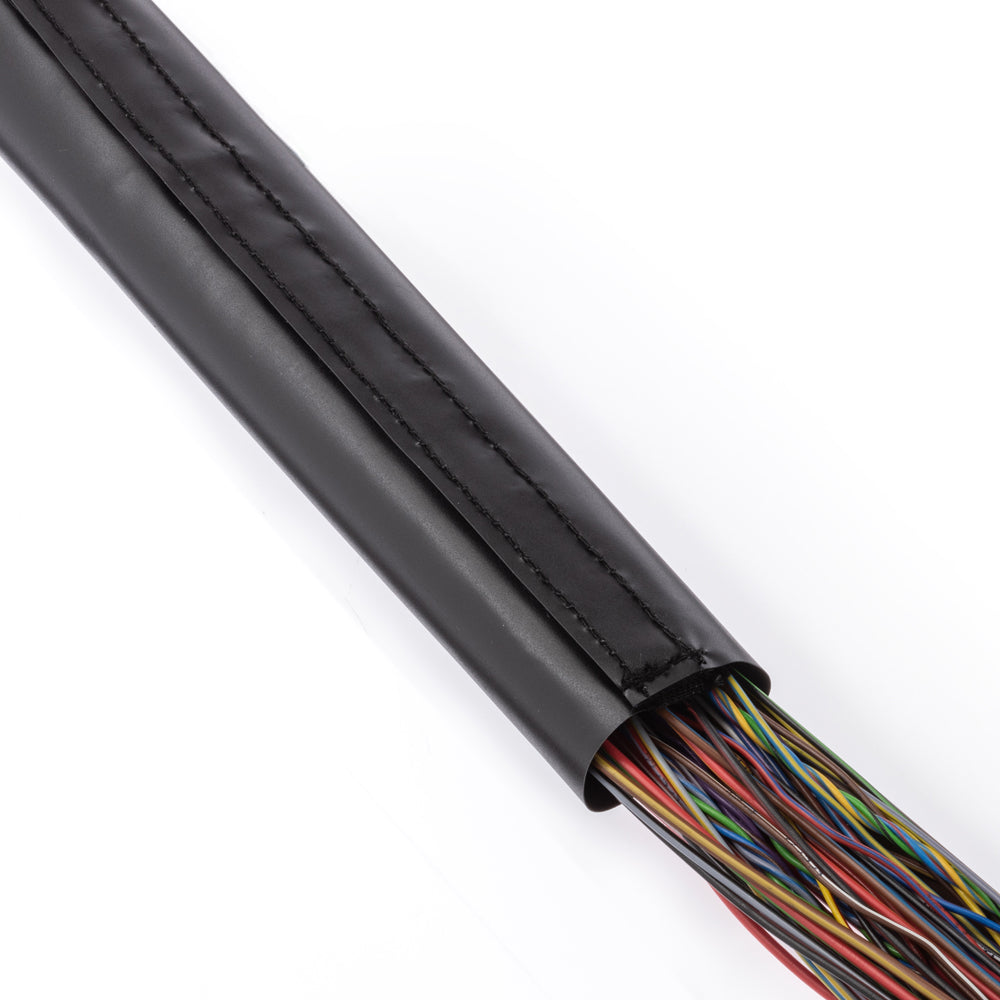

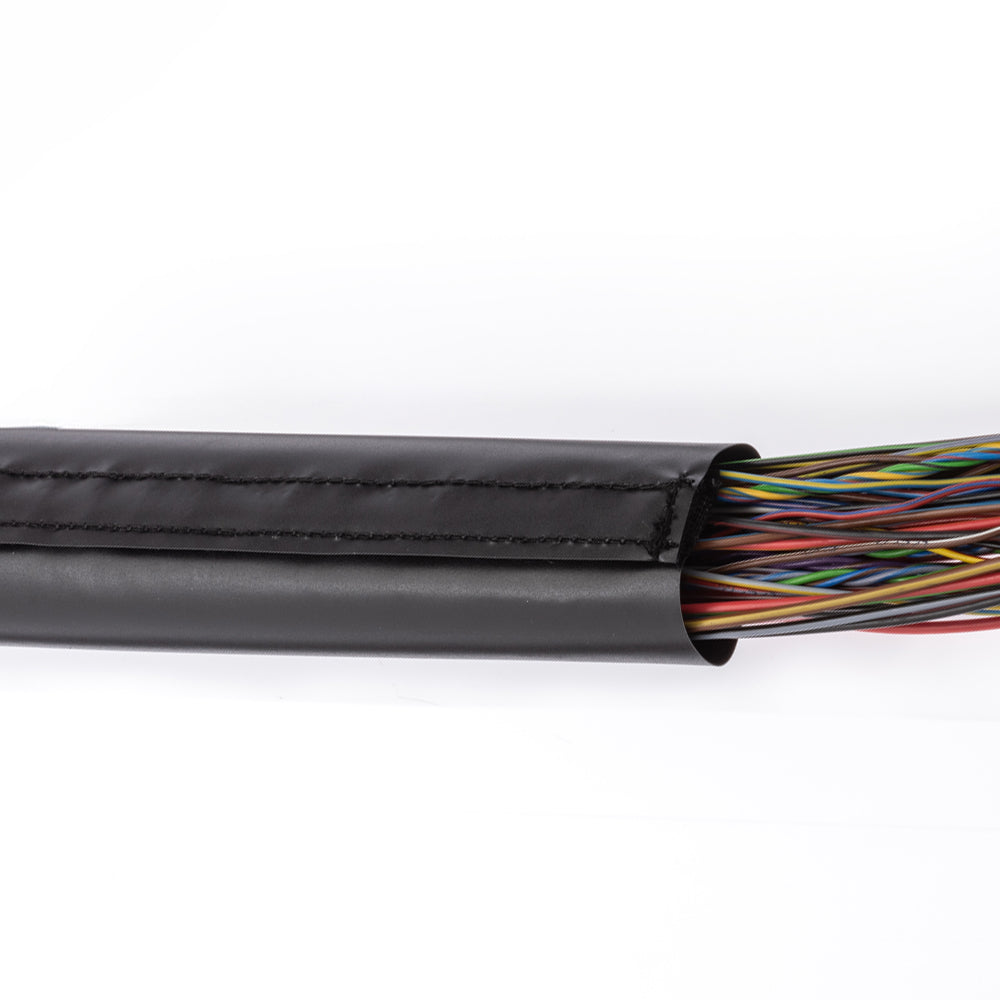

ZTV-x/x-GPs-B, general purpose cable bundling
Material Specification: gp 0 35 bl
Print Datasheet

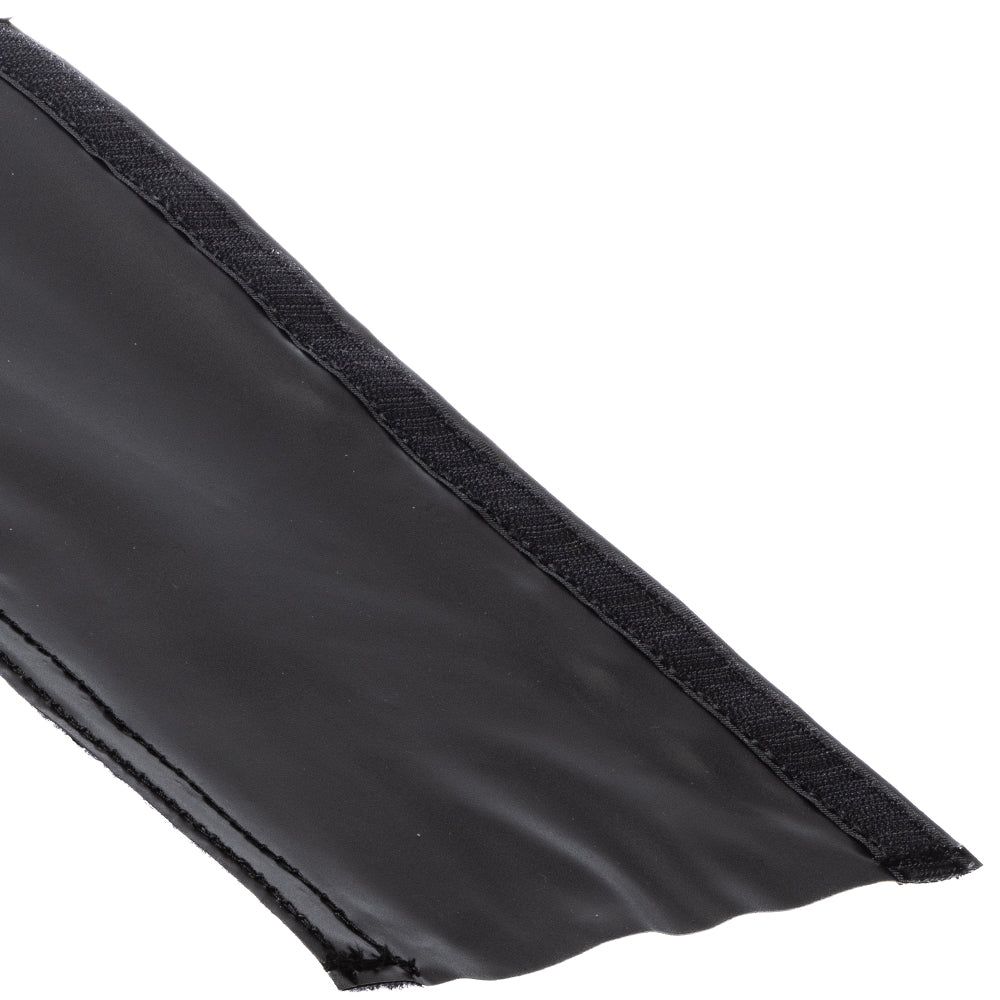

Soft PVC film, 0.3 mm thick, self-extinguishing, cadmium-free, continuous operating temperature up to 105°C. Available in various diameters and with overlaps. Typical applications: automotive, transportation, robotics, energy, power and utilities.

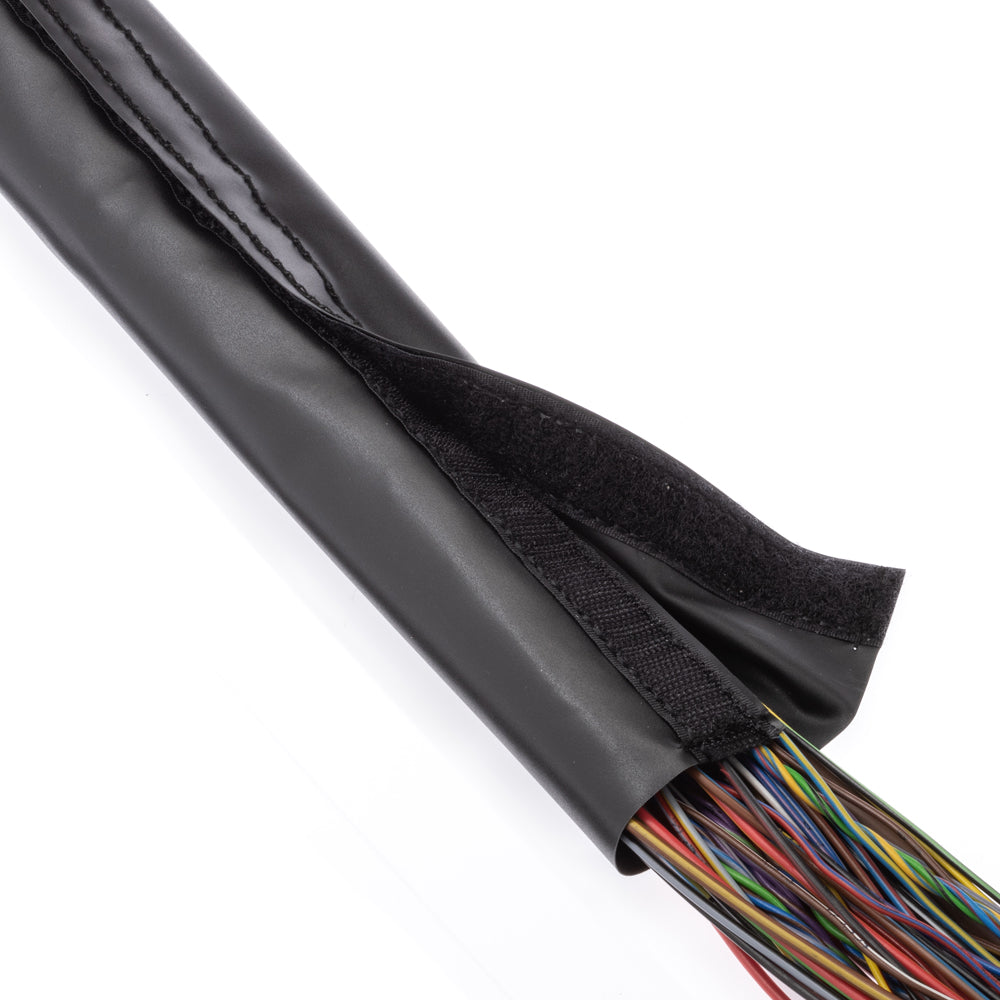

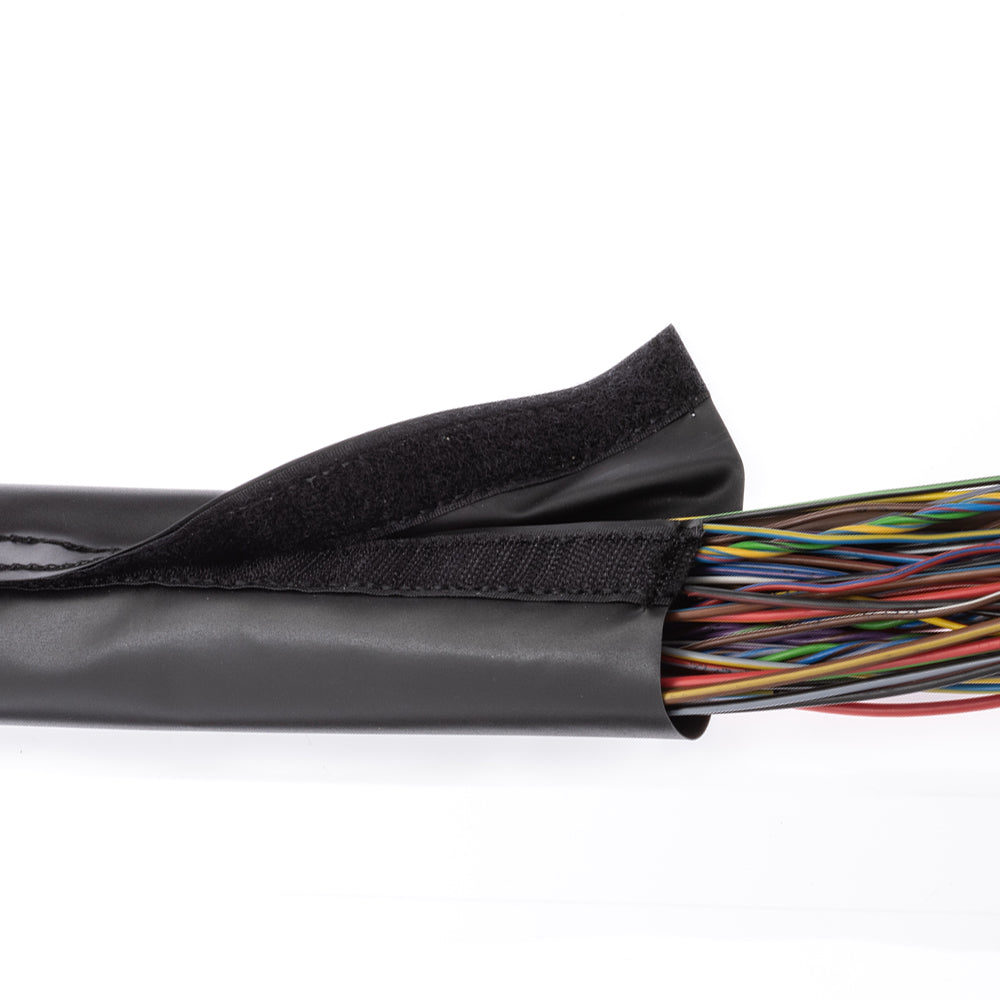

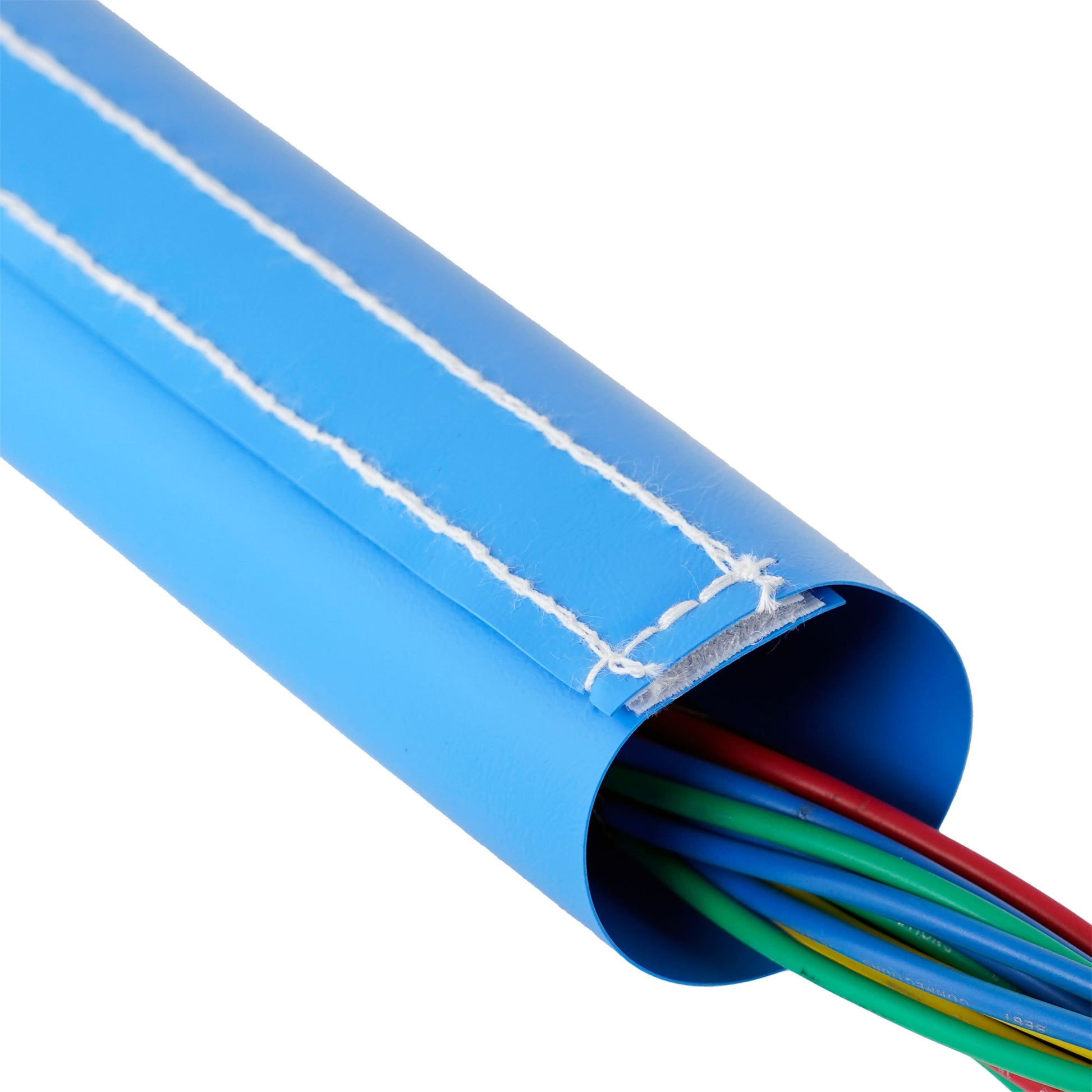

GPs B with V-lock is the user-friendly solution for dynamic environments and frequent access. The PVC film is cadmium-free, self-extinguishing, and resistant to abrasion, UV/ozone, and many media. The hook-and-loop fastener can be opened and closed without tools – even on cables that are already in place.
Available for diameters of 20–100 mm; custom sizes possible. Typical temperature range: –30°C to +105°C.

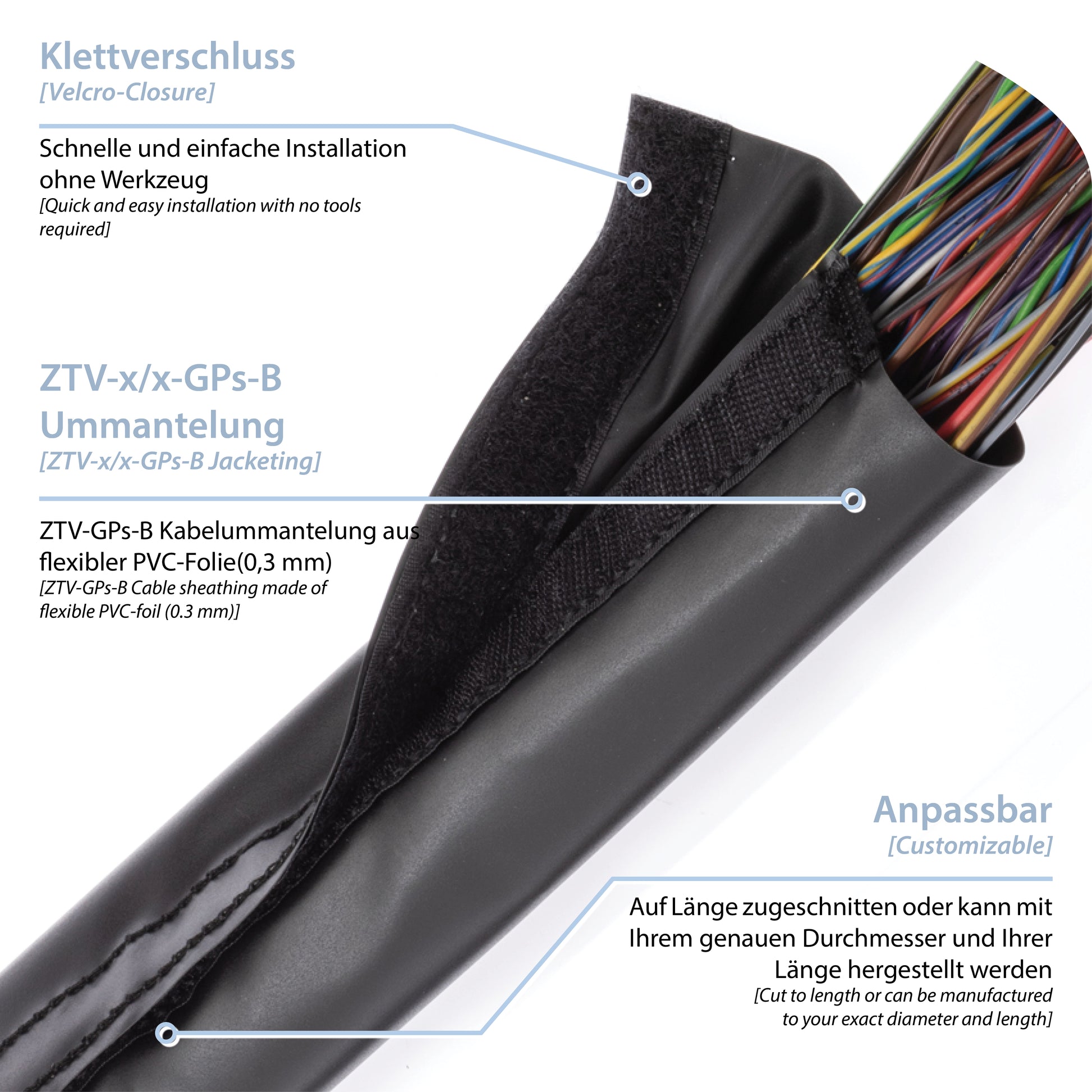

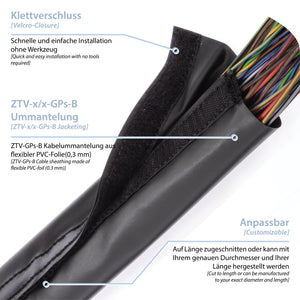

Advantages:
- V-fastener (hook and loop) – tool-free, quick, reusable
- Flexible, self-extinguishing PVC film, cadmium-free
- Resistant to abrasion, UV/ozone and liquids
- Ideal for modular systems and frequent modifications
- Typical temperature range: -30°C to +105°C
Areas of application:
- Installations with frequent access requirements
- Modular cable systems, installation/retrofits
- Testing and development areas
- Temporary cabling in flexible workflows
Material Specification
ZTV-x/x-GPs-B, general purpose cable bundling
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
