ZTV-x/x-GPs/63-B, general purpose cable bundling

0.3 mm PVC sheathing with Velcro closure for flexible all-purpose cable bundling with UL approval.

Material Specification: gps

Part Number:

Print Datasheet
View full details

Overview

Soft PVC film, 0.3 mm thick, UL registered, self-extinguishing, cadmium-free, continuous operating temperature up to 105°C. Available in various diameters and with overlap. Typical applications: automotive, transportation, robotics, energy, power and utilities.

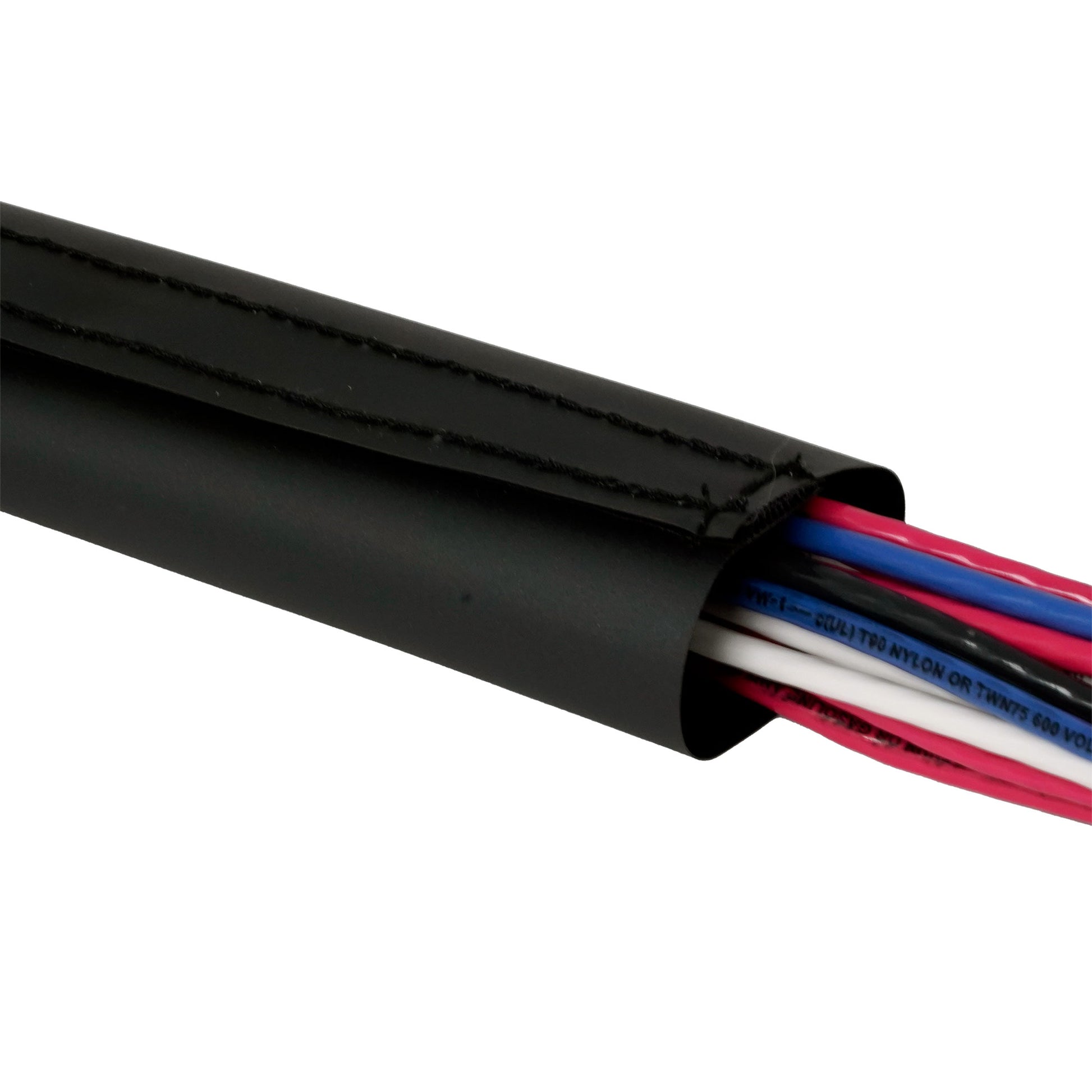

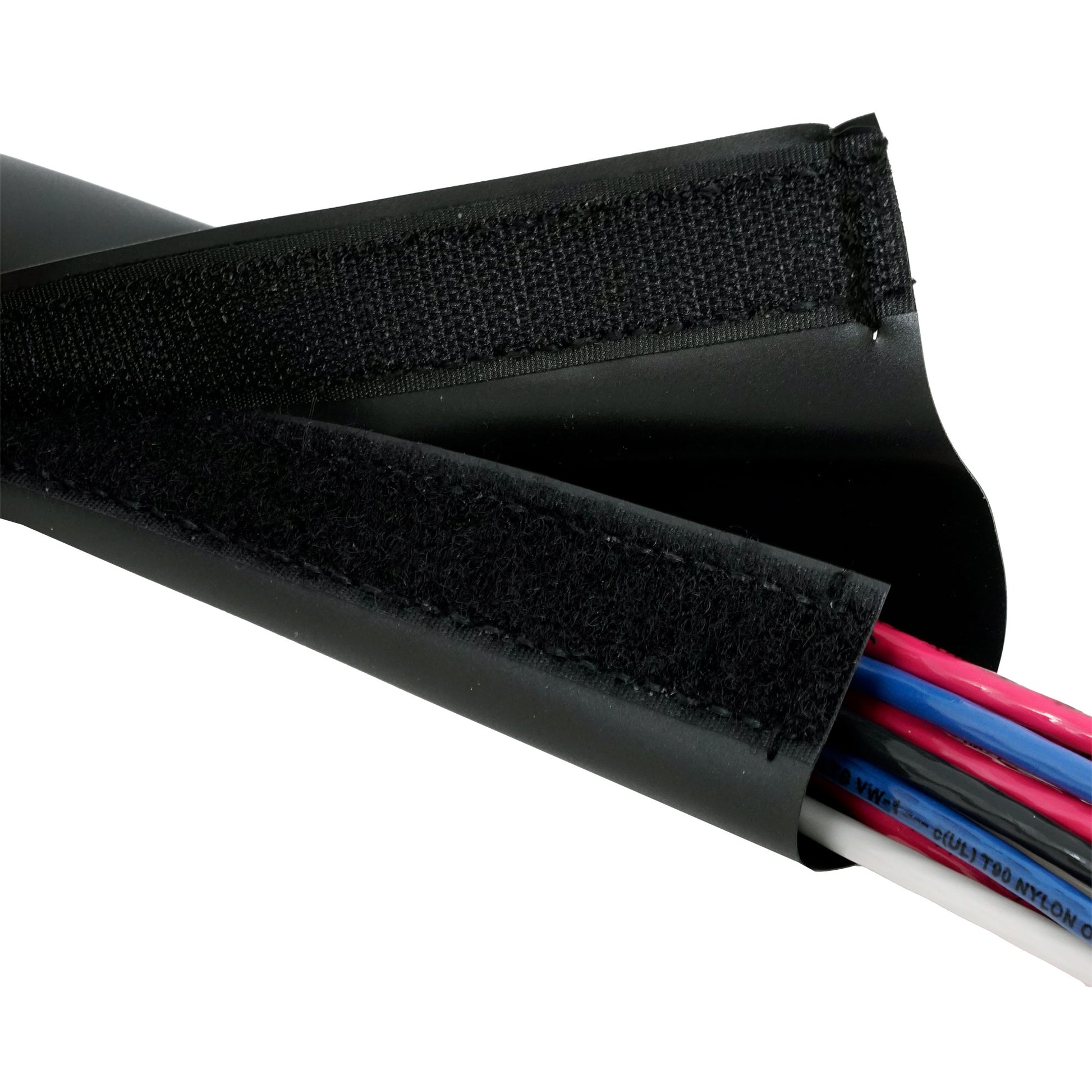

The GPs/63 cable jacket with V-lock offers a highly flexible, tool-free installation solution for cable protection. The robust fabric effectively protects against abrasion and dirt, while the hook-and-loop fastener allows for quick installation and easy adjustment. Ideal for applications requiring frequent opening or adjustment.

Available in sizes from Ø 20 mm to Ø 100 mm; custom sizes are always possible.

Advantages:

  • Tool-free assembly
  • High abrasion and tear resistance
  • Easily reusable
  • Flexible adaptation to cable bundles

Areas of application:

  • Prototyping and test environments
  • Mechanical and equipment engineering
  • Automotive and commercial vehicle technology
  • aviation technology

Material Specification
