ISOSAM-300/2.5 – Heat protection with glass fabric and felt

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

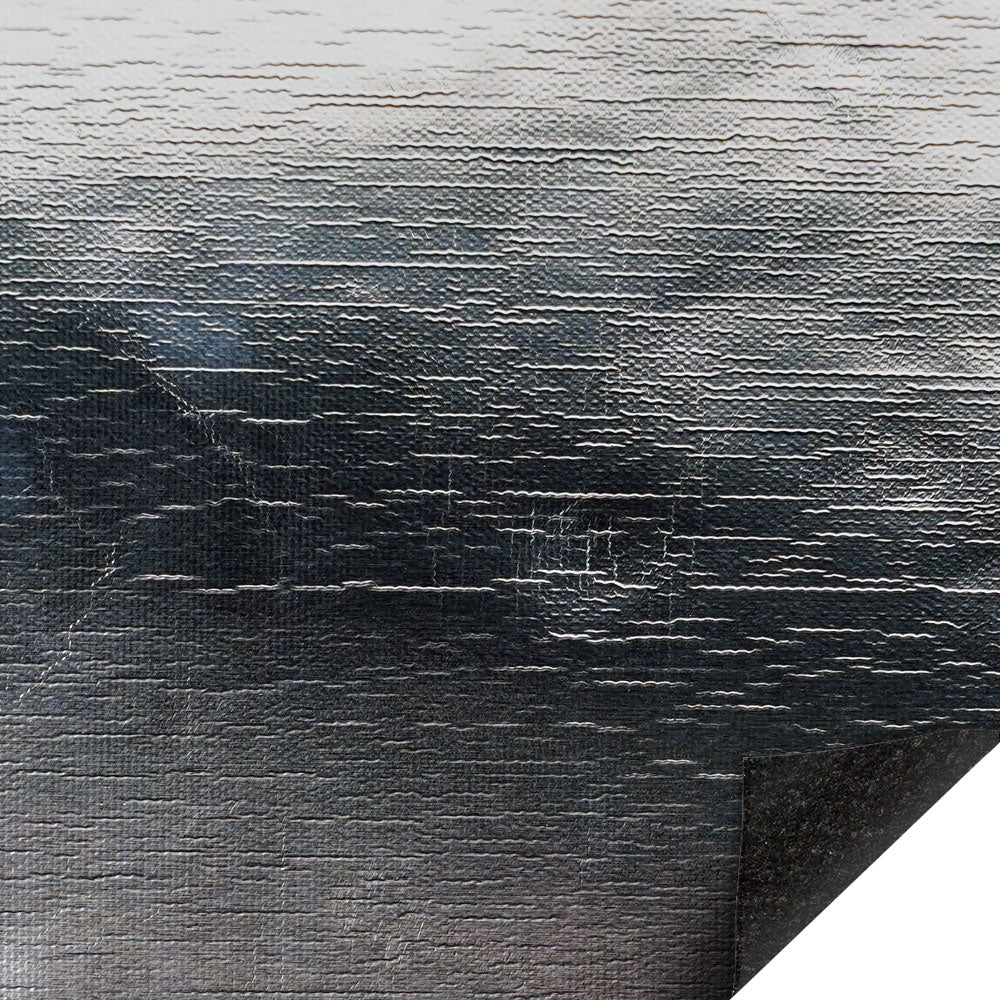

ISOSAM 300/2.5 is an insulating heat protection material made of aluminium-laminated E-glass fabric with Preox felt on the back.

Typical material properties

  • Aluminum foil on E-glass fabric
  • Preox felt approx. 2.5 mm
  • Thickness: approx. 2.3 mm
  • Temperature range: -40 °C to +230 °C continuous

Typical areas of application

  • Heat-insulating heat protection
  • Combination of reflection and isolation
  • Industrial high-temperature applications

Specifications

  • Basis weight:650 ± 15% g / m²
  • Thickness:2.3 ± 15%mm
  • Binding:canvas
  • Min. application temperature 24 hrs:- 40 °C
  • Max. application temperature permanent 1000 hours / short-term 168 hours:+ 230 / + 240 °C
  • Fire behaviour:Passed 10 sec.

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
