ISOVACUFLECT 500/5 - Al-coated glass fabric with felt

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

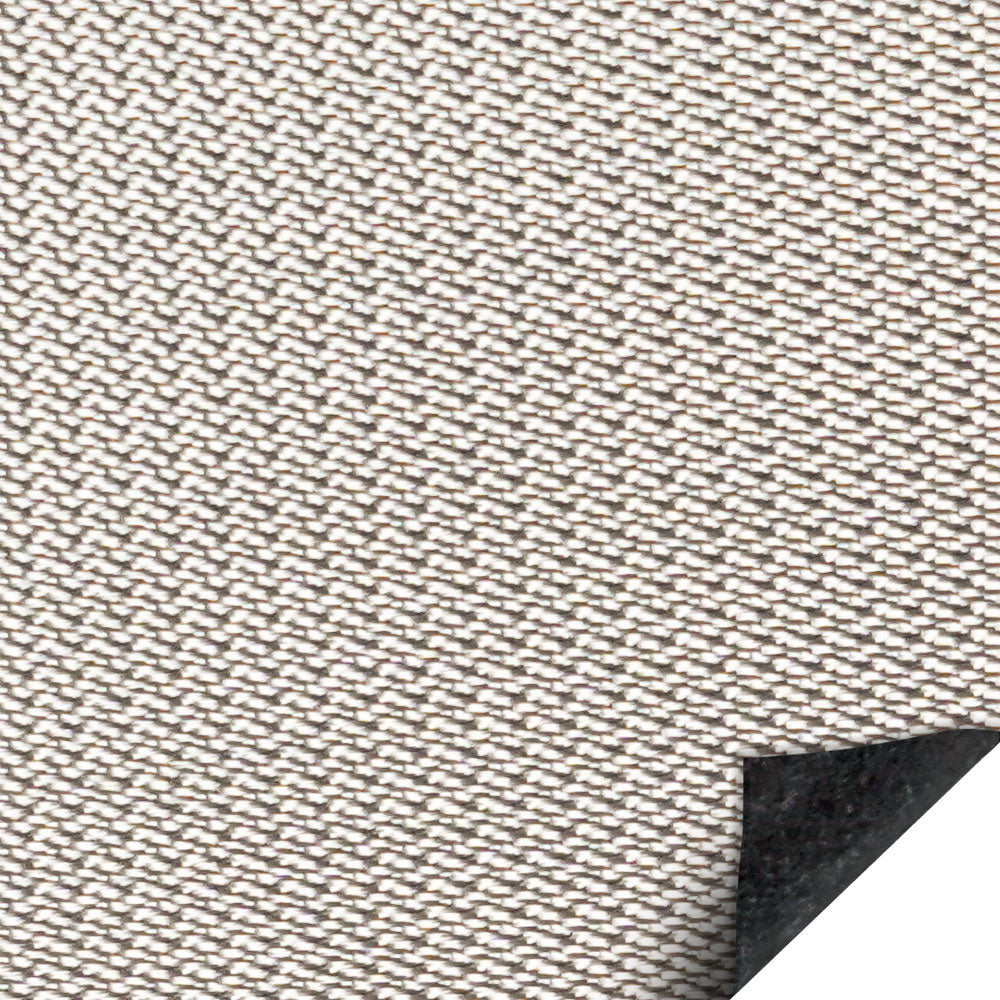

ISOVACUFLECT® 500/5 is based on the VACUFLECT® system and combines aluminium-vaporized E-glass fabric with a silicone backing and Preox felt.

Typical material properties

  • Aluminium-coated E-glass fabric
  • Silicone back coating
  • Preox felt approx. 4.5 mm
  • Temperature range: -40 °C to +240 °C continuous

Typical areas of application

  • High-temperature heat protection
  • Applications with high insulation requirements
  • Industrial shielding and insulation solutions

Specifications

  • Basis weight:1100 ± 15% g / m²
  • Thickness:4.5 ± 15%mm
  • Binding:3/1 cross body
  • Min. application temperature 24 hrs:- 40 °C
  • Max. application temperature permanent 1000 hours / short term 24 hours:+ 240 / + 270 °C
  • Fire behaviour:Passed 10 sec.

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
