Polyester (PET) material

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

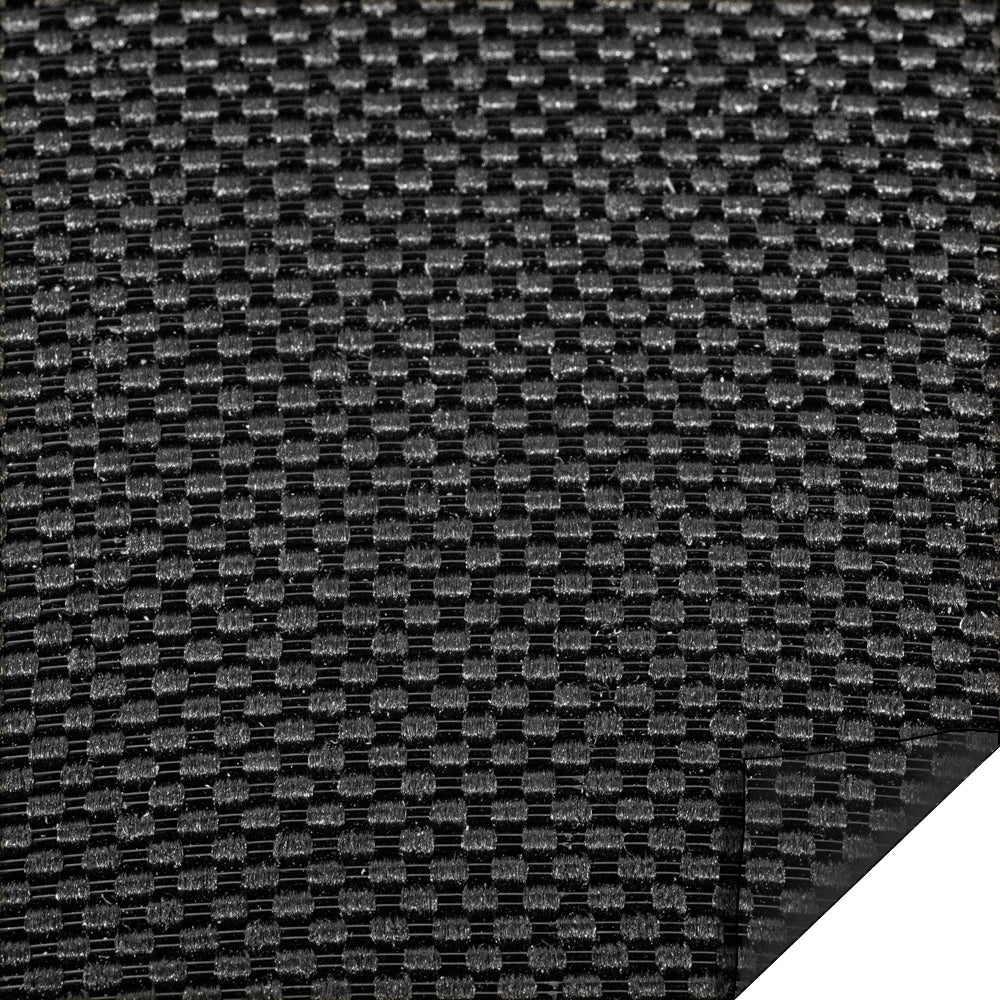

The PET fabric consists of polyester monofilaments and multifilaments with a defined thread thickness of 0.25 mm (±0.02 mm). The textile construction enables high mechanical strength combined with low weight.

The material is designed for a permanent temperature range of −50 °C to +150 °C. The melting point is approx. +250 °C (±5 °C).

The polyester fabric is self-extinguishing according to UL 94 V-0 and complies with fire standard UN ECE R-118-03 Annex 8. It is silicone-free, halogen-free, and RoHS-compliant.

With an average abrasion resistance of 2000 double strokes according to ISO 6722-1, the fabric offers a robust surface for industrial applications. In addition, the material has good resistance to brake fluid, fuel, engine oil, and other typical media.

Typical material properties:

  • Polyester monofilament and multifilament construction
  • Thread thickness 0.25 mm ±0.02 mm
  • Temperature resistance −50 °C to +150 °C
  • Melting point approx. +250 °C
  • Self-extinguishing according to UL 94 V-0
  • Complies with UN ECE R-118-03 Annex 8
  • Abrasion resistance approx. 2000 double strokes according to ISO 6722-1
  • Good chemical resistance
  • Silicone-free, halogen-free, RoHS-compliant

Areas of application:

  • Textile protective and support structures in mechanical engineering
  • Applications in the robotics industry
  • Use in commercial vehicles (truck and bus industry)
  • Mechanically stressed industrial environments

Specifications

  • Ø Monofilament (+/- tolerance): 0.25 mm (+/- 0.02 mm)
  • Application temperature: Long-term - 50°C to + 150°C (reduced roll-in forces at higher temperatures)
  • Melting point: + 250°C +/- 5°C
  • Fire behavior: Self-extinguishing according to UL 94V-0 and complies with UN ECE R-118-03 Annex 8
  • Abrasion behavior: Average 2000 double strokes according to ISO 6722-1
  • Chemical resistance: Good chemical resistance, e.g., brake fluid, fuel, engine oil, windshield washer fluid, etc., as well as mold, fungi, rot
  • Colors: Black, orange
  • Approvals: RoHS, halogen-free

Technical data is subject to change without notice. All statements and technical information contained herein are based on tests that we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper Technology products, the user must verify their suitability for the intended use and assumes full responsibility for improper selection.
