SAM-1000 - Al foil on glass fabric 0.85 mm

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

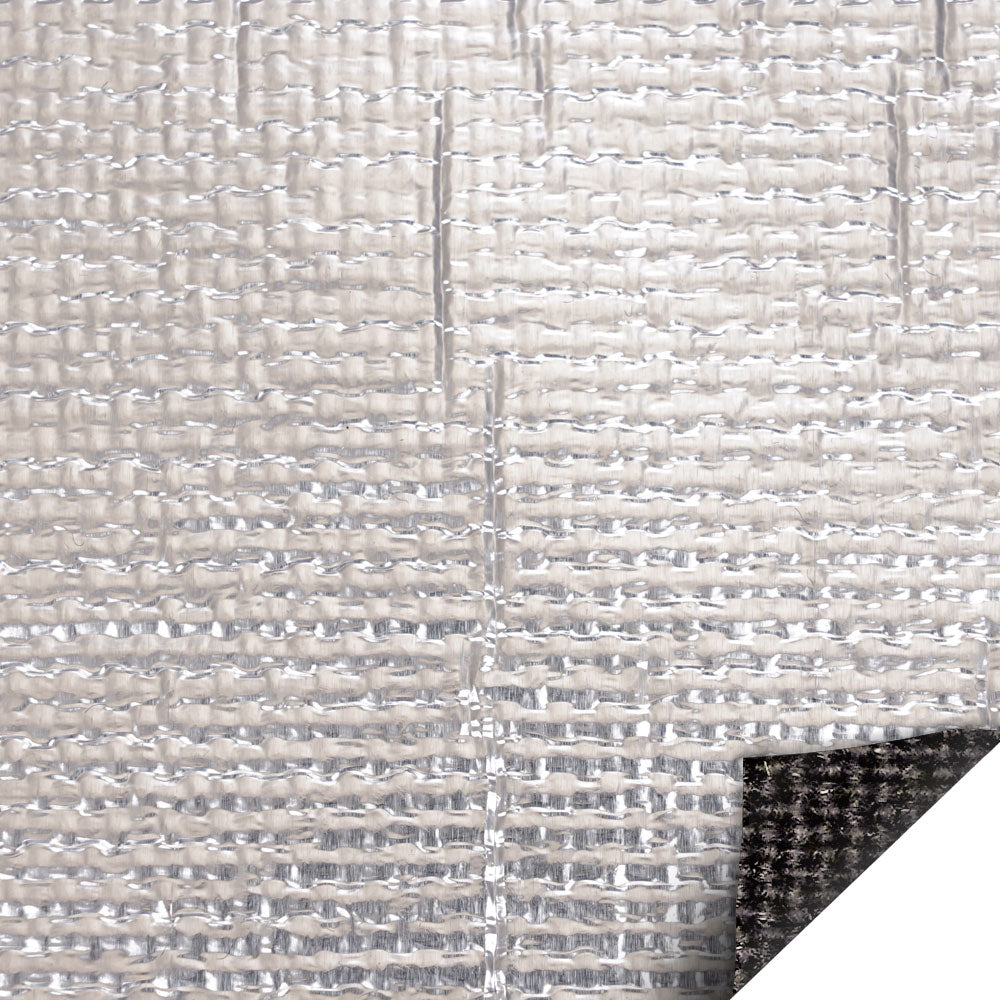

SAM-1000 is an all-rounder: Silicone-impregnated fiberglass fabric with a heat-reflecting aluminum foil laminated with a high-temperature adhesive. The combination makes SAM-1000 a flexible and durable heat protection material with excellent abrasion properties. SAM-1000 is best suited for medium-temperature heat protection applications where a mechanically robust sheath is required. Its properties make SAM-1000 the ideal choice for under-the-hood applications in the automotive, truck and bus industries. The material has an operating temperature range of -50 °C to 240 °C, with 270 °C permitted for short periods.

Specifications

  • Basis weight:900 ± 15% g / m²
  • Thickness:0.85 ± 15%mm
  • Binding:canvas
  • Min. application temperature 24 hrs:- 50 °C
  • Max. application temperature permanent 1000 hours / short term 24 hours:+ 240 / + 270 °C
  • Fire behaviour:Passed

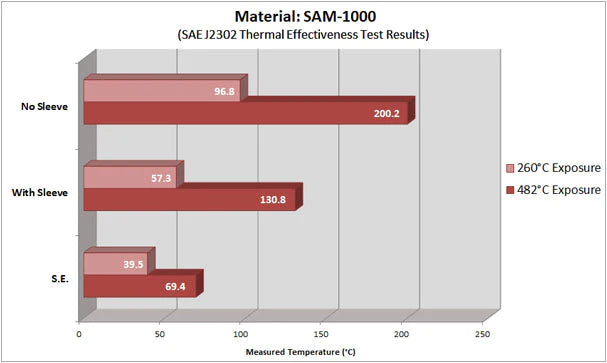

Thermal Eeffectiveness

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
