SAM-400 - Al foil on glass fabric 0.25 mm

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

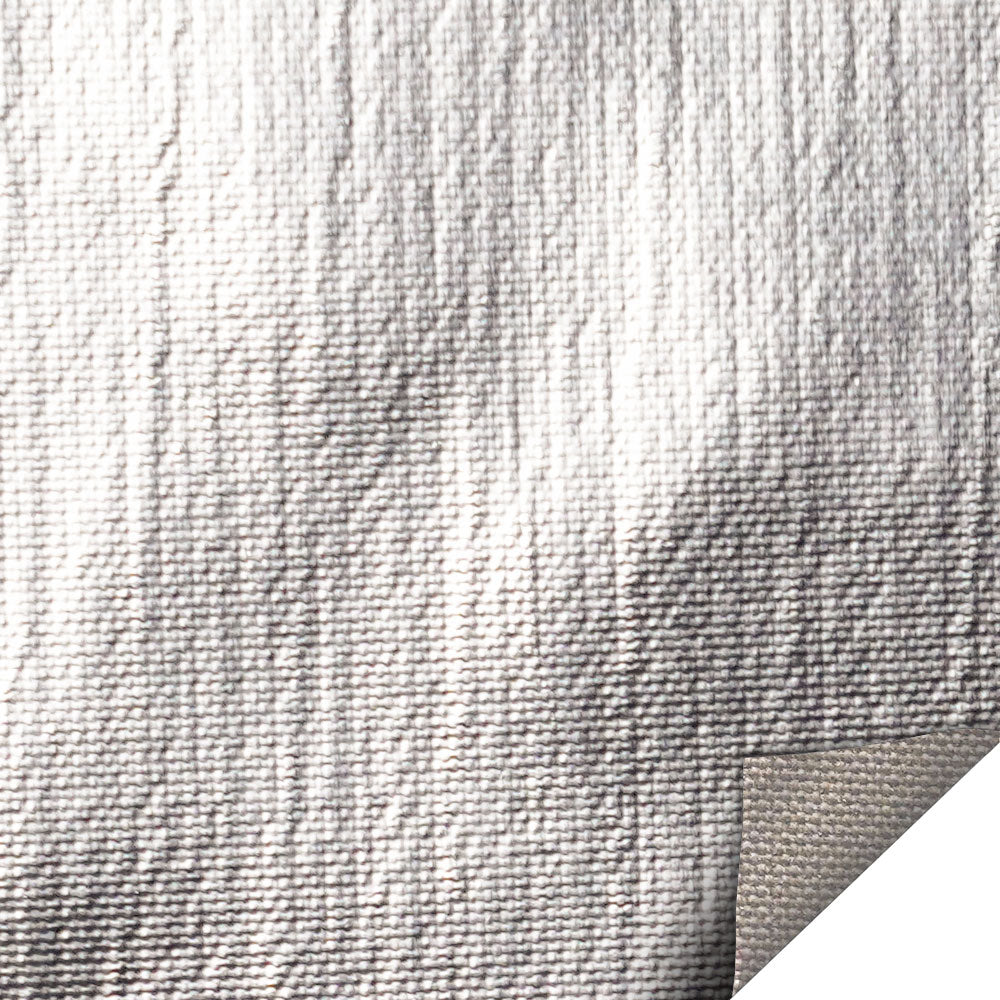

SAM 400 is a lightweight, reflective heat protection material made of aluminum-laminated E-glass fabric with a thin material structure.

Typical material properties

  • Aluminum foil on E-glass fabric
  • Weight per unit area: approx. 340 g/m²
  • Thickness: approx. 0.25 mm
  • Temperature range: -50 °C to +250 °C continuous

Typical areas of application

  • Thin-walled heat protection
  • Heat reflection in limited installation space
  • Industrial high-temperature applications

Specifications

  • Basis weight:340 ± 15% g / m²
  • Thickness:0.25 ± 15%mm
  • Binding:canvas
  • Min. application temperature 24 hrs:- 50 °C
  • Max. application temperature permanent 1000 hours / short term 24 hours:+ 250 / + 270 °C
  • Fire behaviour:Passed 10 sec.

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
