SAM- HT 500/DR - double-reflective heat protection

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

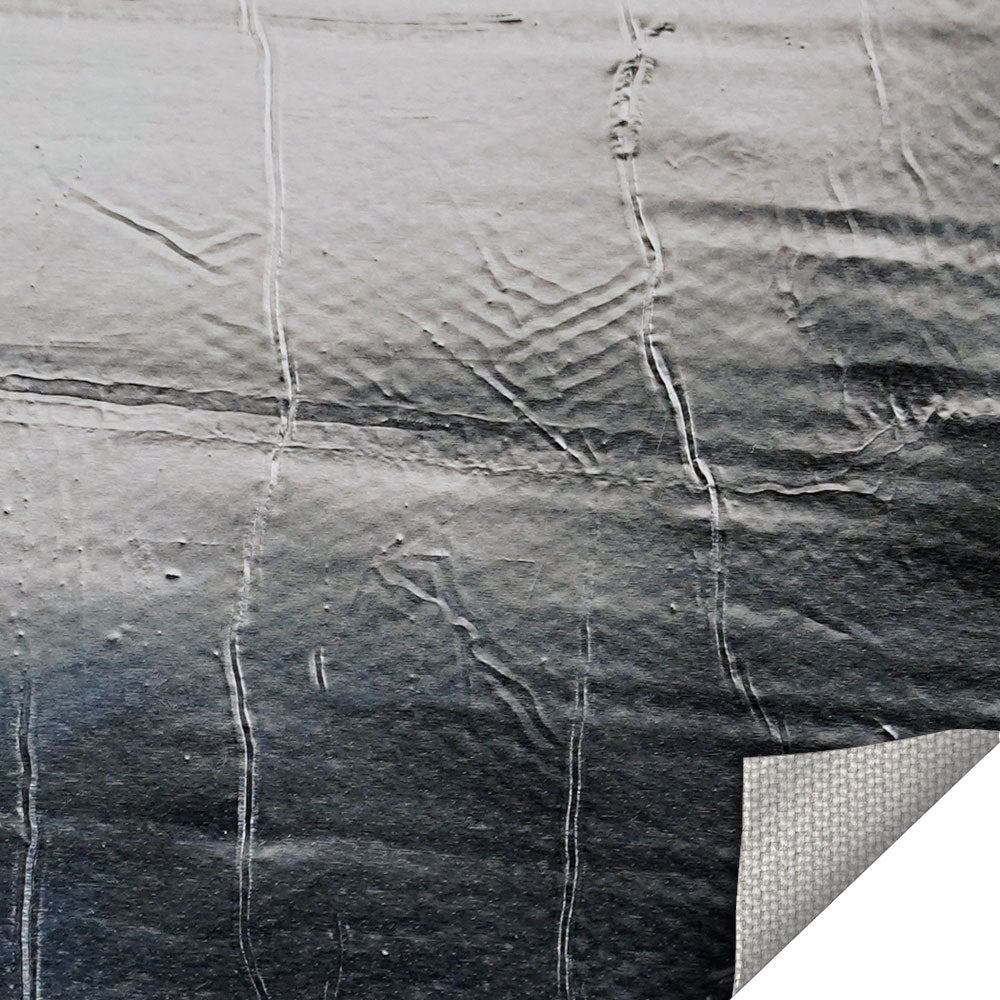

SAM-HT 500/DR is a double reflective heat protection material with aluminium-laminated E-glass fabric and additional reflective back coating.

Typical material properties

  • Aluminum foil on E-glass fabric
  • Additional reflective back coating
  • Thickness: approx. 0.55 mm
  • Temperature range: -50 °C to +260 °C continuous

Typical areas of application

  • Heat protection with increased heat reflection
  • High temperature applications
  • Industrial thermal insulation solutions

Specifications

  • Basis weight:620 ± 15% g / m²
  • Thickness:0.55 ± 15%mm
  • Binding:3/1 cross twill
  • Min. application temperature 24 hrs:- 50 °C
  • Max. application temperature permanent 1000 hours / short term 24 hours:+ 260 / + 280 °C
  • Fire behaviour:Passed 10 sec.

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
