SH1/63 (laminate) – EMI shielding on PVC foil

RoHS REACH Compliant UL Recognized
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

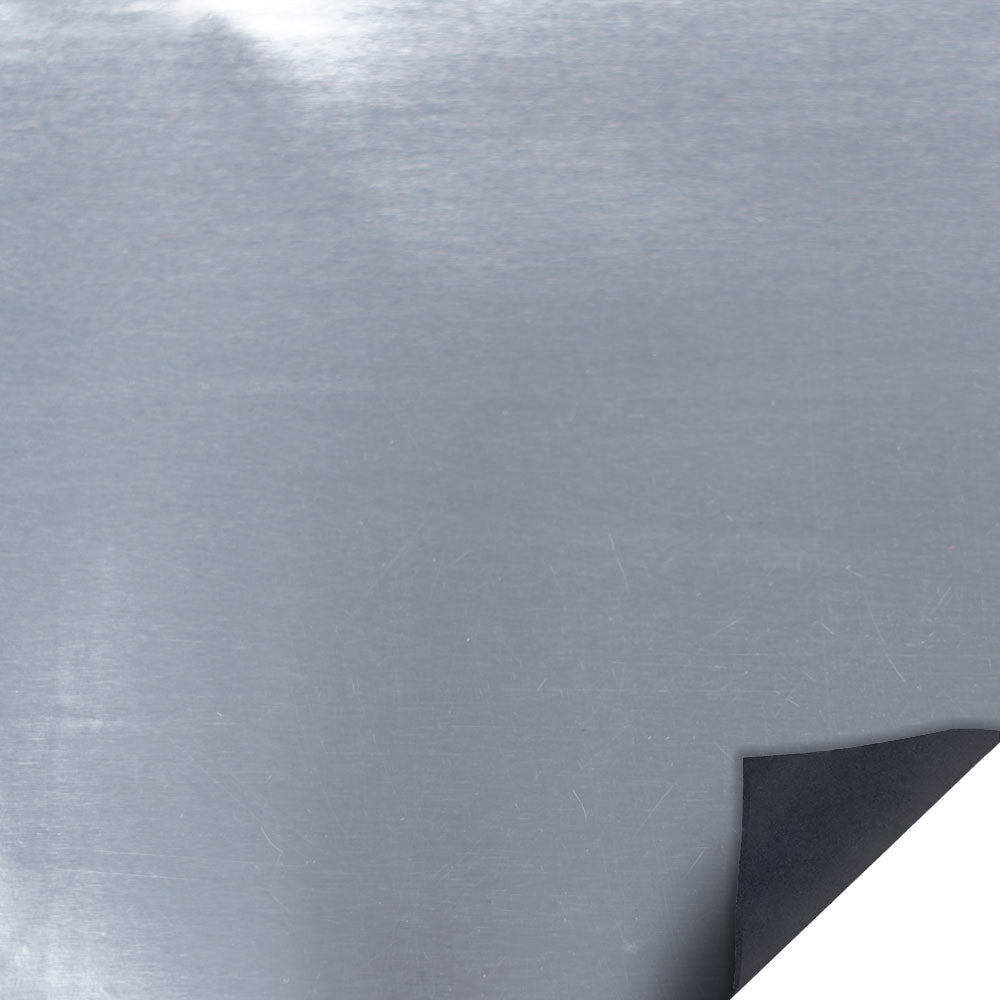

The SH1/63 laminate is a robust shielding material consisting of Zipper-technik's aluminum (SH1) shielding foil laminated to our Type 63 polyvinyl chloride (PVC) jacket material. It can be combined with most Zipper-technik closure types to create a thin, lightweight cable jacket with excellent EMI shielding performance. The material is a general purpose shielding product that is ideal for use in protected areas and should not be used in areas where large radii may occur. It can be configured for round, flat and rectangular cable shapes and bundles and optionally supplied with a tin/copper grounding braid sewn along the entire length. The material is self-extinguishing and UL certified. The laminate can be combined with various closure techniques such as zipper (N) and PVC tracks (eg D, Z, R).

Specifications

  • Material:Aluminium on GPs/63
  • Basis weight:450g/m² +/-15%
  • Closure:All types of closure, zipper from D 16mm
  • Diameter:12 / 16 / 20mm, upwards 5mm each
  • Color:black
  • Wall thickness:0.35mm +/-15%
  • UL approval:UL File #E169362
  • Temperature range:- 30 to + 105°C
  • Self-extinguishing:Yes
  • UV-resistant:Yes
  • Ozone resistant:Yes
  • Rot-proof:Yes
  • Dielectric strength:30KV/mm
  • Available on rolls:50m

Shielding Effectiveness

SH1 (FOILSHIELDING)

ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for improper selection. Zipper-technik shielding published attenuation values ​​have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values ​​may vary due to installation techniques and final assembly parameters that are beyond Zipper-technik's control. Actual attenuation values ​​can only be determined by the end user testing the finished assembly.
