SHX-4 (SnCu) - 4 layer tinned copper wire

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

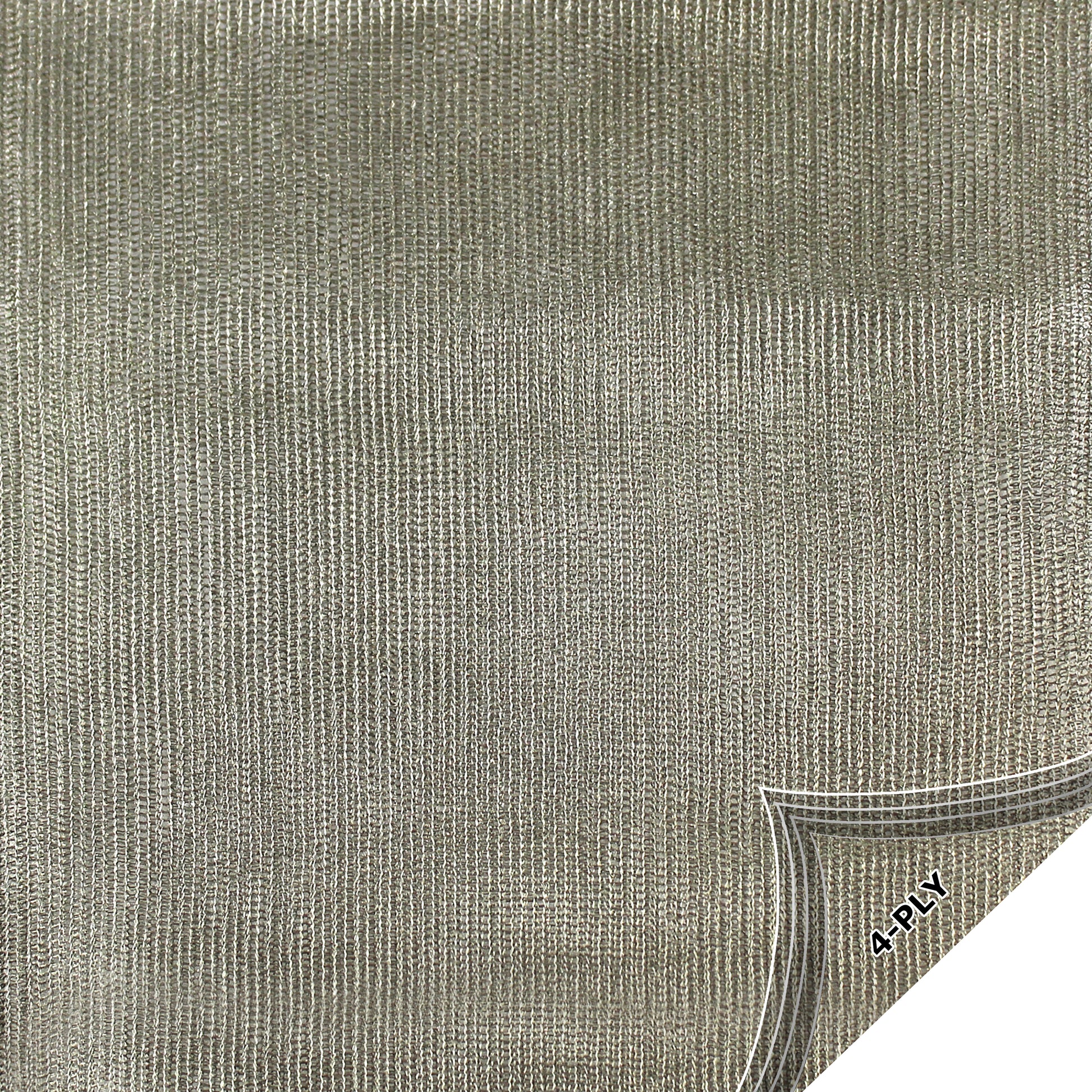

SHX 4 is an RF shield made of 4-layer, tinned copper wire mesh with a continuous grounding strand. Compared to 2-layer versions, SHX 4 is designed for applications requiring higher shielding effectiveness over a wider frequency range.

Typical material properties

  • 4-ply tinned copper wire (wire diameter approx. 0.2 mm)
  • Temperature range: -40 °C to +160 °C
  • Shielding properties: 100 kHz to 20 GHz, 45–100 dB
  • Self-extinguishing, UV and ozone resistant, rot-proof (according to data sheet)
  • Available on rolls: 50 m

Typical areas of application

  • EMC/RF shielding with extended frequency range
  • Shielding of cables, wires and cable bundles
  • Industrial applications with increased shielding requirements

Specifications

  • Material: 4-ply tinned copper braid Ø 0.2mm
  • Combinable Sleeves: GPs, GP 05, GPs 63 and 63-05, VNH, VNL, Trevira, Zipvira
  • Grounding Braid: optional
  • Closure: All closure types, zipper from D16mm
  • Diameter: 12/16/20, then in 5mm increments
  • Color: Black, VNH: gray, other colors upon request
  • Wall thickness: 0.2 - 0.6mm, depending on the sleeve
  • Temperature range: - 40 to + 160° C
  • Self-extinguishing: Yes
  • UV resistant: Yes
  • Ozone resistant: Yes
  • Rot-proof: Yes
  • Dielectric strength: 11 – 35kV / mm depending on the sleeve
  • Available on rolls: 50m

Shielding Effectiveness

SHX-4 (SNCU)

ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.
