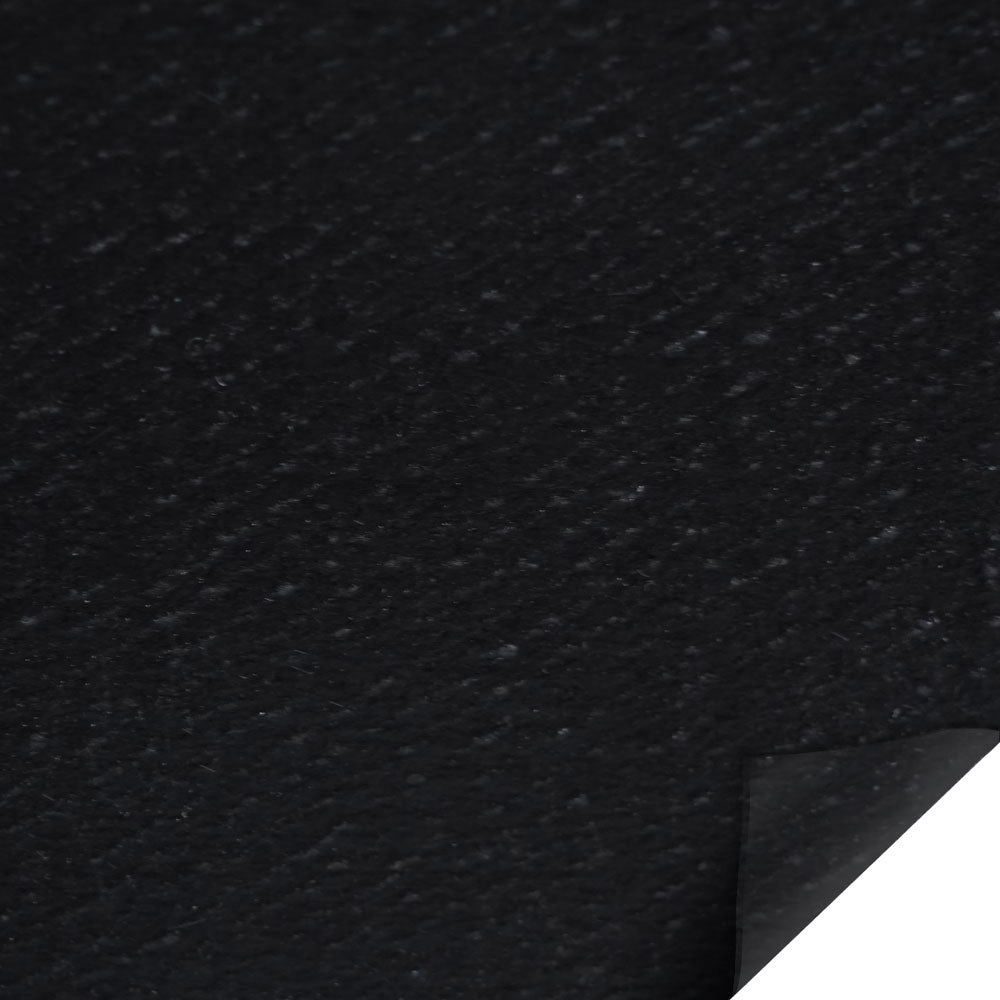

SICA-600 - Para-aramid fabric with silicone coating

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

SICA 600 is a para-aramid fabric with a double-sided silicone-carbon quartz coating. The material was developed for applications with extreme requirements for abrasion resistance and imperviousness to water, chemicals and oil.

Typical material properties

  • Para-aramid fabric with silicone-carbon-quartz coating
  • Weight per unit area: approx. 1080 g/m²
  • Thickness: approx. 1.55 mm
  • Abrasion resistance: Class ≥ 3
  • Temperature range: -40 °C to +200 °C (continuous)
  • Very good fire and heat resistance

Typical areas of application

  • High-temperature cable sheathing
  • Applications with high mechanical stress
  • Environments with contact to chemicals, oil or water

Specifications

  • Basis weight:1080 +/-15% g / m²
  • Thickness:1.55 +/-15%mm
  • Tensile strength of warp raw fabric:3300 +/- 15% N / 5 cm
  • Tear strength weft raw fabric:800 +/- 15% N / 5 cm
  • Abrasion resistance:≥ 3 class
  • Minimum operating temperature:- 40 °C
  • Maximum operating temperature continuous (1000 hours) / short-term (24 hours):+ 200 / + 230 °C
  • Fire behaviour:Self-extinguishing, fulfilled

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
