VACUFLECT-500 S - Al-vaporized glass fabric

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

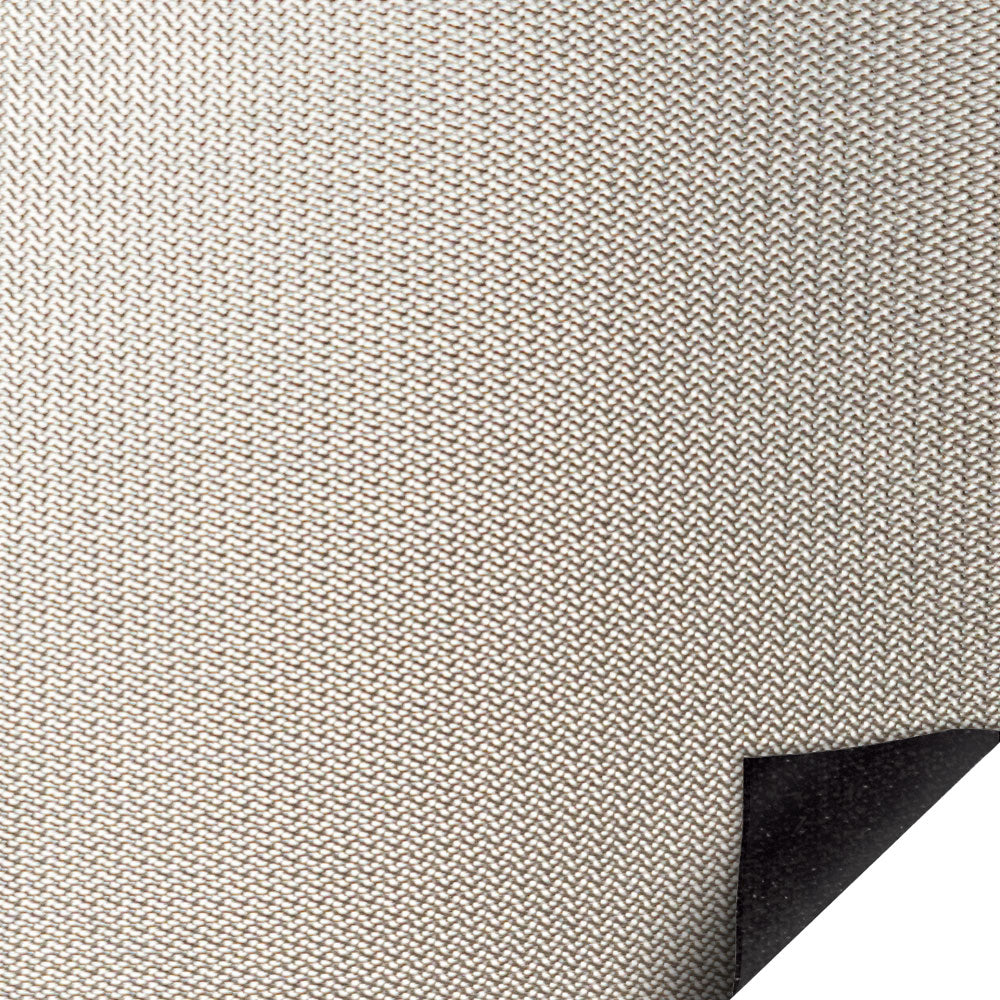

VACUFLECT® 500 S is a single-sided aluminum-vaporized E-glass fabric with a silicone coating on the back for very high temperatures.

Typical material properties

  • Aluminium-coated E-glass fabric
  • Silicone back coating
  • Thickness: approx. 0.45 mm
  • Temperature range: -40 °C to +300 °C continuous

Typical areas of application

  • Extreme high-temperature heat protection
  • Thermal shielding
  • Industrial high-temperature applications

Specifications

  • Basis weight:545 ± 10% g / m²
  • Thickness:0.45 ± 10%mm
  • Binding:3/1 cross body
  • Min. application temperature 24 hrs:- 40 °C
  • Max. application temperature permanent 1000 hours / short term 24 hours:+ 300 / + 330 °C
  • Fire behaviour:Passed 10 sec.

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
