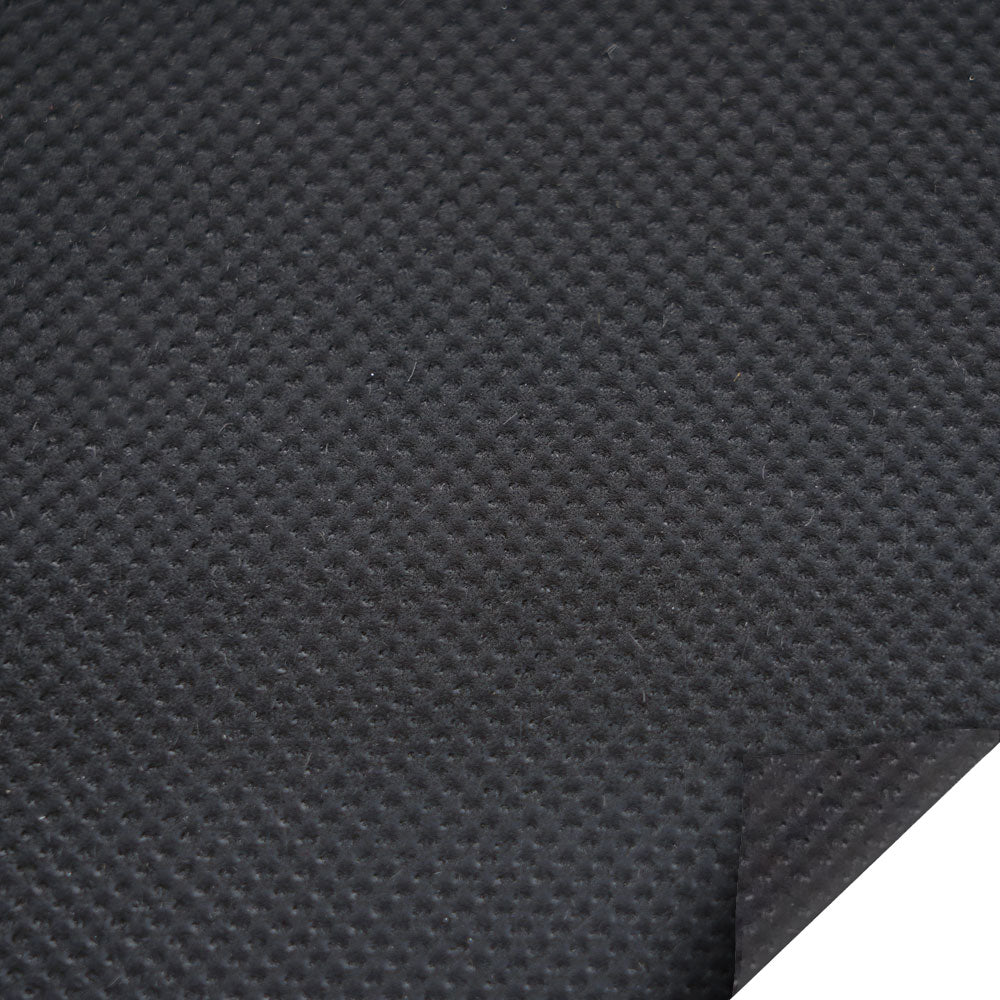

VNH - PVC coated PET fabric 0.45 mm

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.
VNH is a medium-weight (0.45 mm) double-sided PVC-coated PET fabric designed for standard temperature ranges. The material is extremely flexible, even at low temperatures, and offers high tensile strength as well as abrasion resistance. VNH is ideal for outdoor applications where cables or lines are exposed to weather, abrasion, or stone impact, or where tear resistance is important. The material is flame-retardant and comes standard in gray-black. All Zipper-Technik closure types are available. VNH is an extremely versatile material and is used in many industrial sectors. The operating temperature range is –20 °C to +105 °C.

Specifications

  • Material: Double-sided PVC-coated and fully impregnated PET fabric
  • Color: Black-gray; other colors available on request
  • Temperature Range: –40 to +105 ± 3 K °C
  • Thickness: 0.5 mm ± 15%
  • Area Weight: 680 g/m² ± 15%
  • Closure Systems: 1. Tongue-and-groove closure, 2. Continuous zipper, 3. Snap fasteners
  • Construction: With or without overlap
  • Diameter: 9 / 12 / 16 / 20 mm and larger in 5 mm increments
  • Tensile Strength: Warp > 260 daN / 50 mm, Weft > 250 daN / 50 mm
  • Flame Behavior: M2 / B1 / B-S2-D0
  • Dielectric Strength: 11.6 kV / mm
  • Self-Extinguishing: Yes
  • UV-Resistant: Yes
  • Ozone-Resistant: Yes
  • Rot-Resistant: Yes
  • Available on Rolls: 50 m, 100 m

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper Technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
