VNL - PVC coated PET fabric 0.3 mm

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

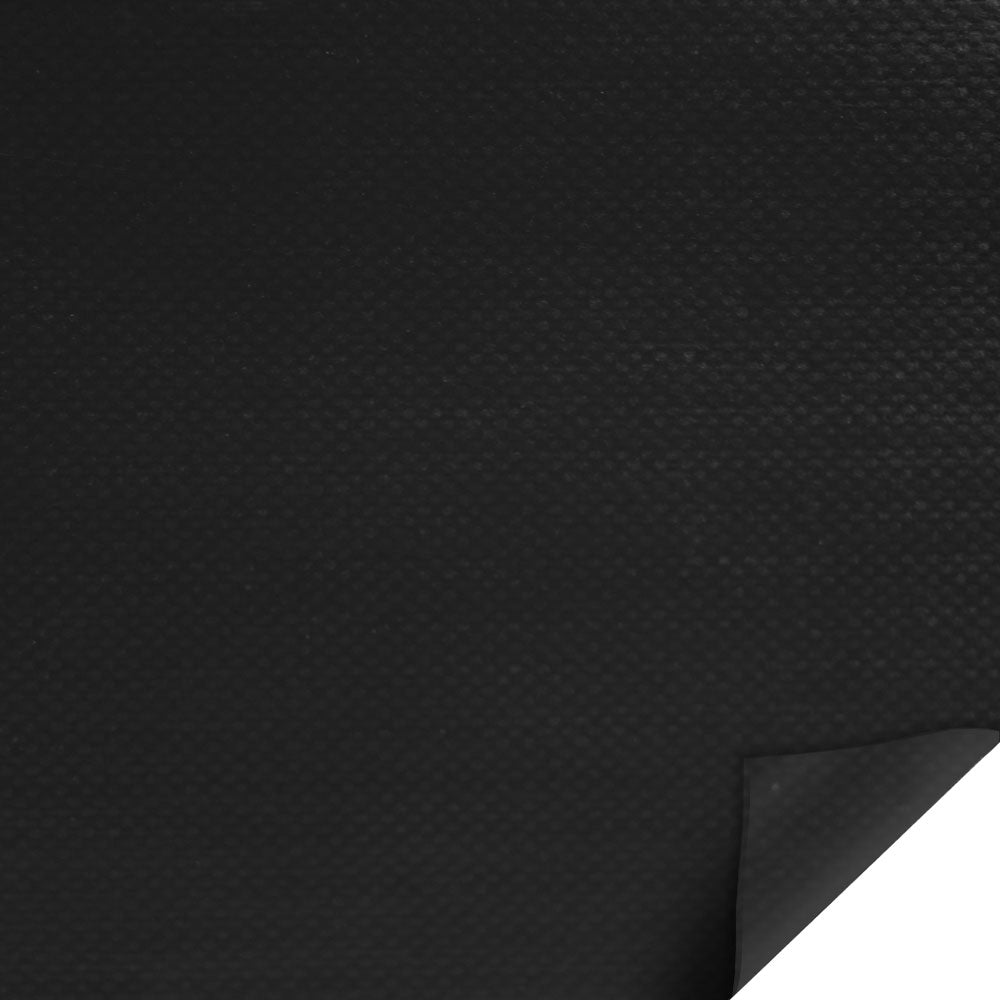

VNL is a lightweight (0.3 mm) double-sided PVC-coated PET fabric for versatile applications. The material is lightweight and extremely flexible even at low temperatures, has high chemical resistance and is abrasion-resistant. VNL is ideal for outdoor applications where cables or wires are exposed to the elements, abrasion or stone chips, or where tear resistance is important. The material is self-extinguishing and available in black as standard. All Zipper Technology closure types are available, please note bending radii and filling level. VNL is an extremely adaptable material and is used in many industrial areas. The material has an operating temperature range of -20° to +105° C.

Specifications

  • Material:PET fabric PVC coated on both sides
  • Locking system:1. Tongue & groove closure, 2. Zipper from 12 mm
  • Construction:with or without overlap
  • Diameter:9 / 12 / 16 / 20 mm and larger in 5 mm increments
  • Color:black
  • Wall thickness:0.23 ± 0.03mm
  • Temperature range:- 40 to + 105 °C
  • Basis weight:290 ± 20 g / m2
  • Tear resistance:Warp > 110 daN / 50 mm, weft > 60 daN / 50 mm
  • Burning behavior:Class M2
  • Dielectric strength:26.5 ± 10% kV / mm
  • Self-extinguishing:Yes
  • UV-resistant:Yes
  • Ozone resistant:Yes
  • Rot-resistant:Yes
  • Chemical properties:good resistance to oils and fats
  • Available on rolls:50, 100m

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
