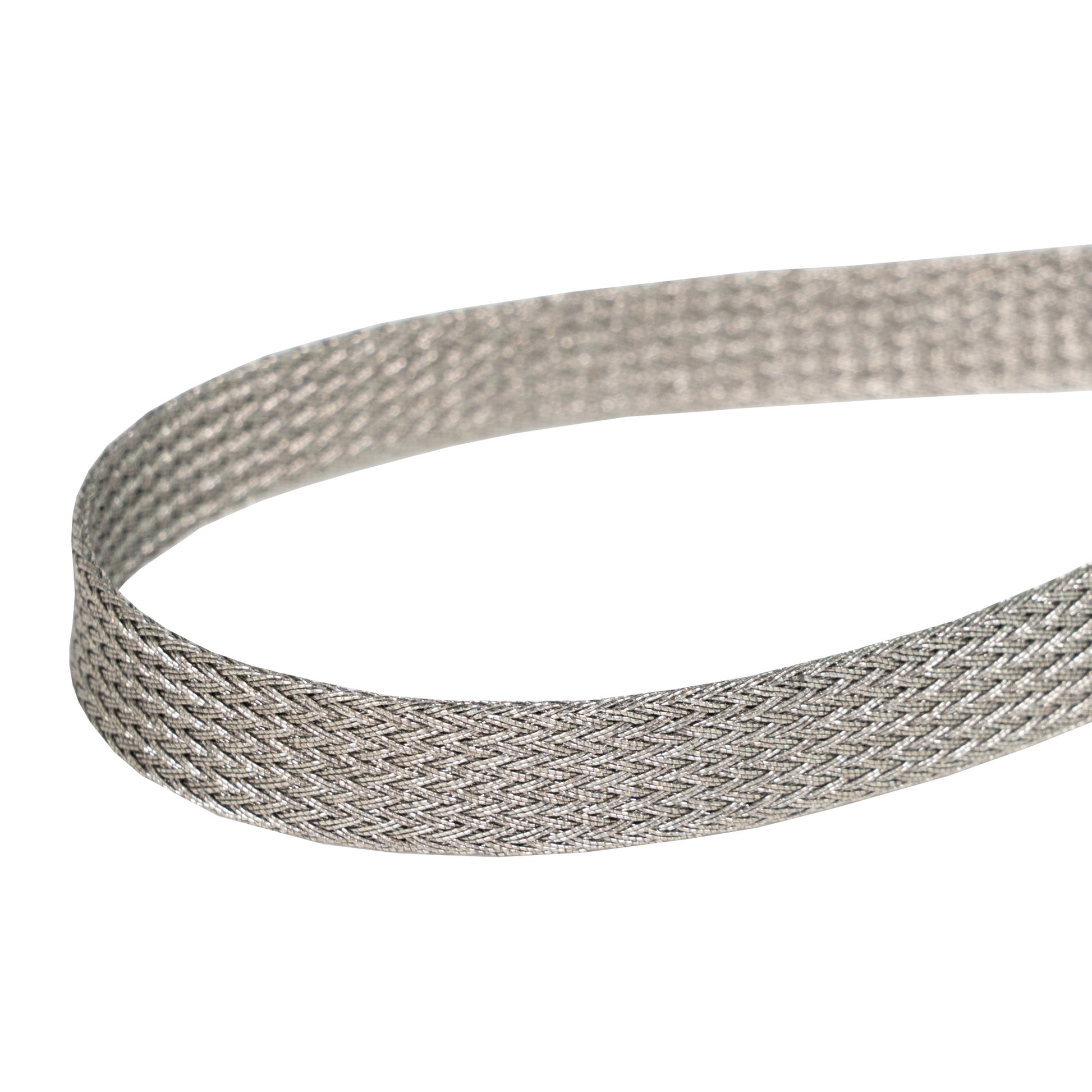

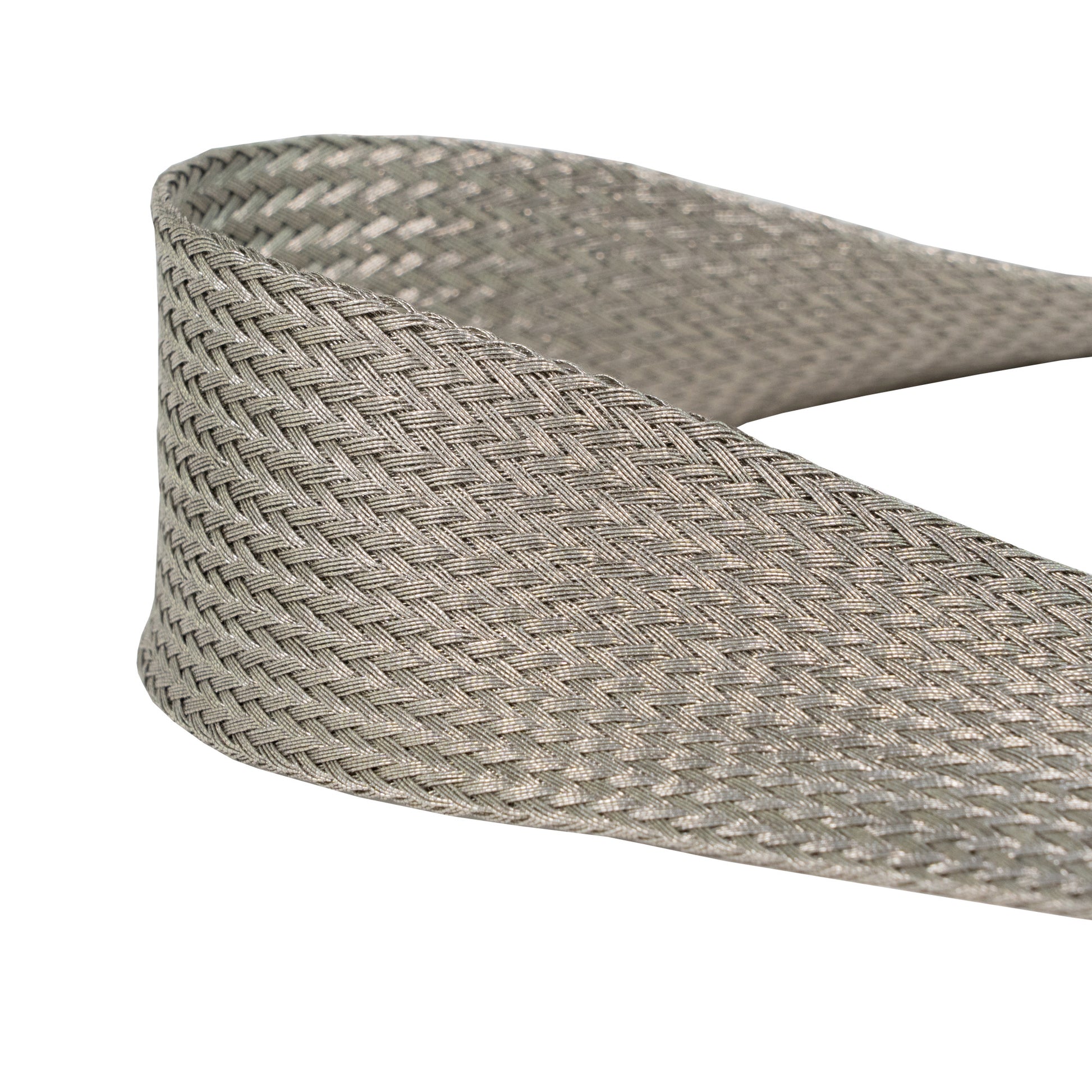

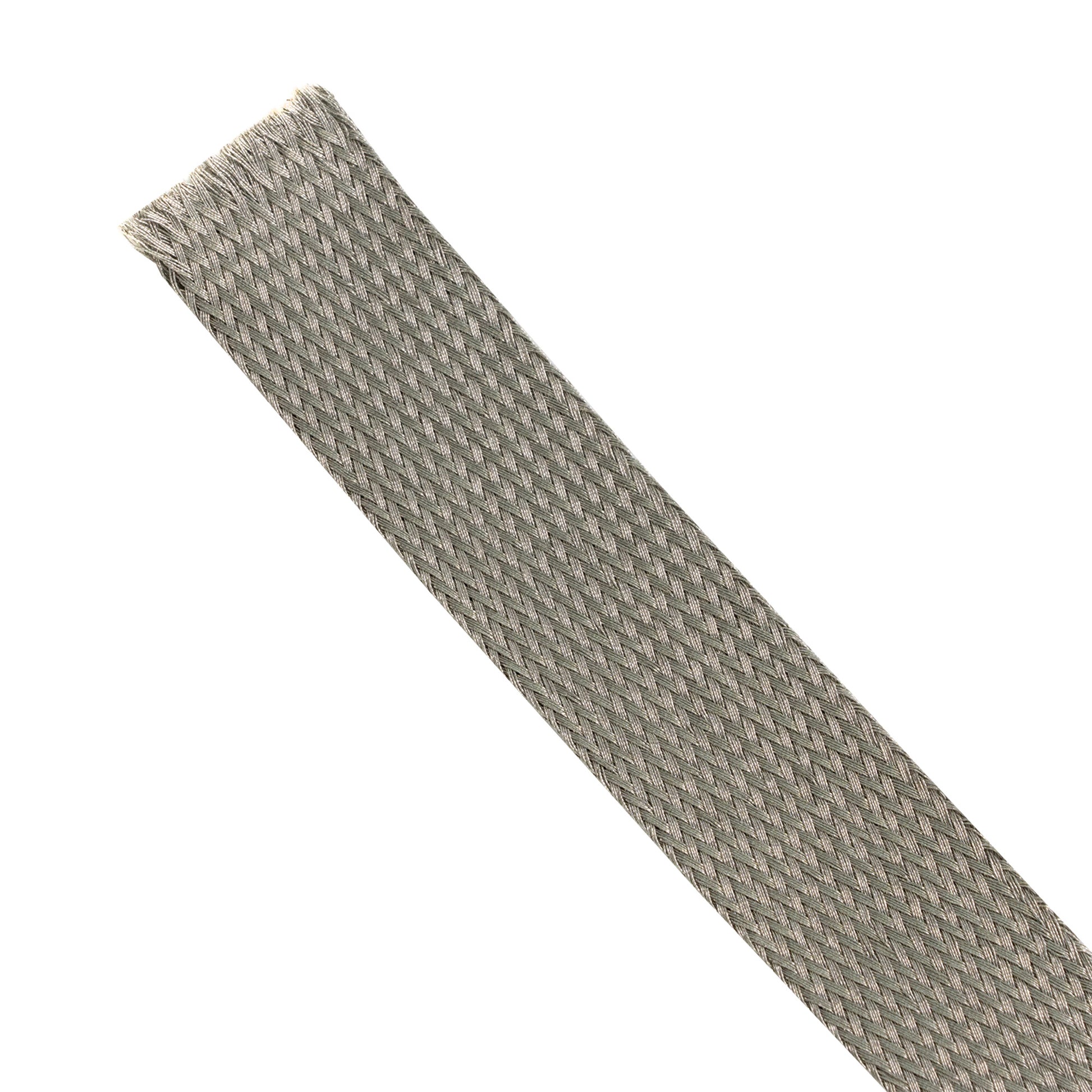

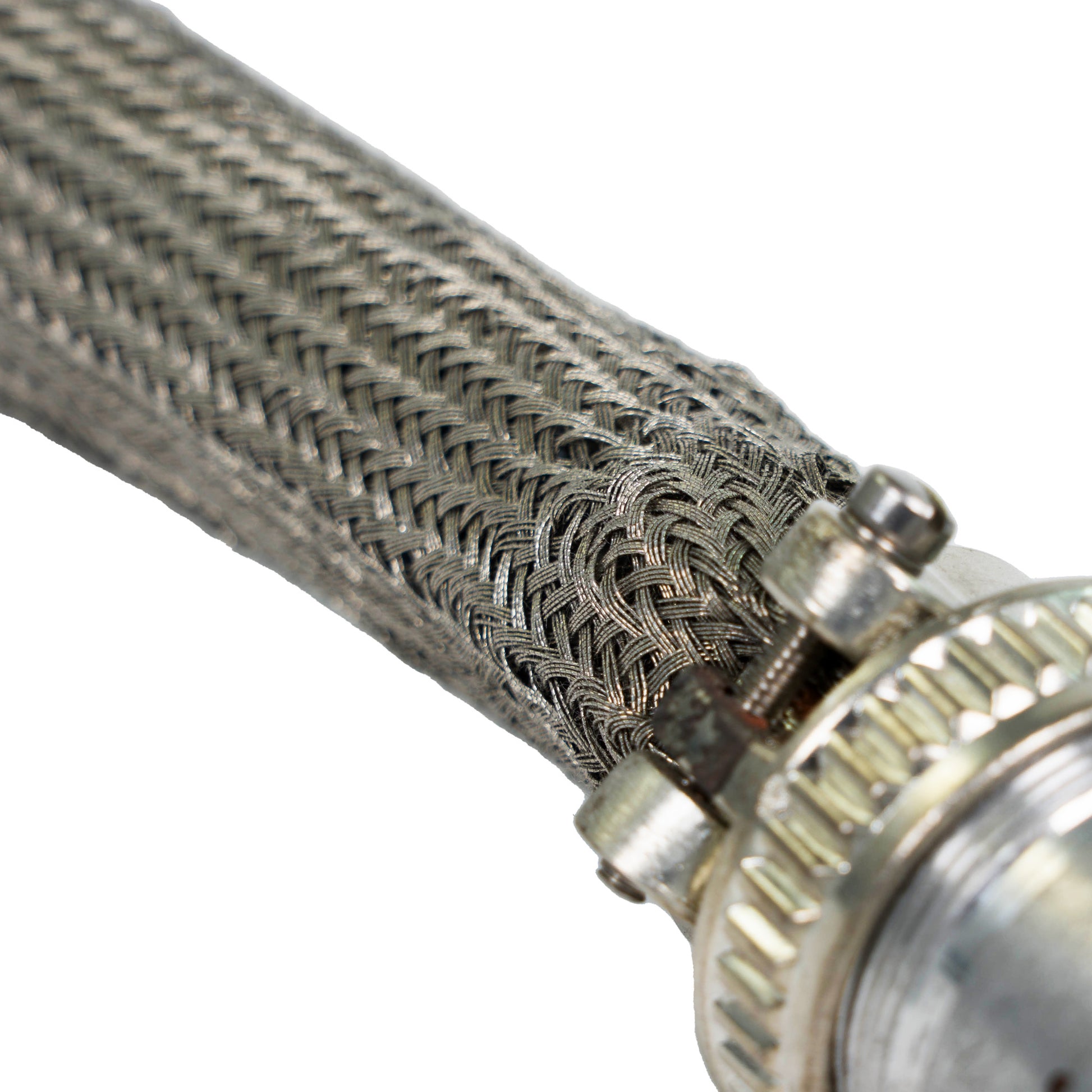

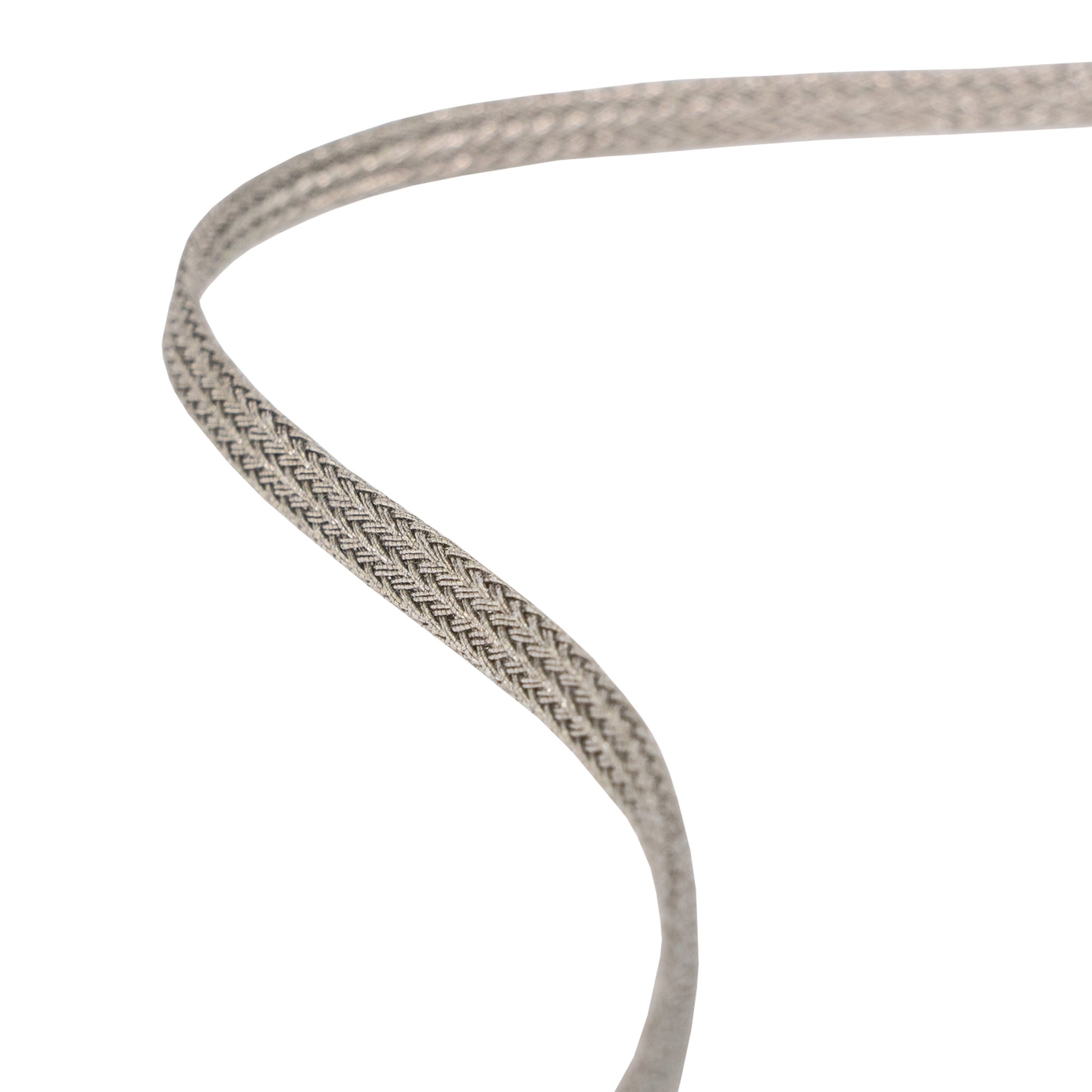

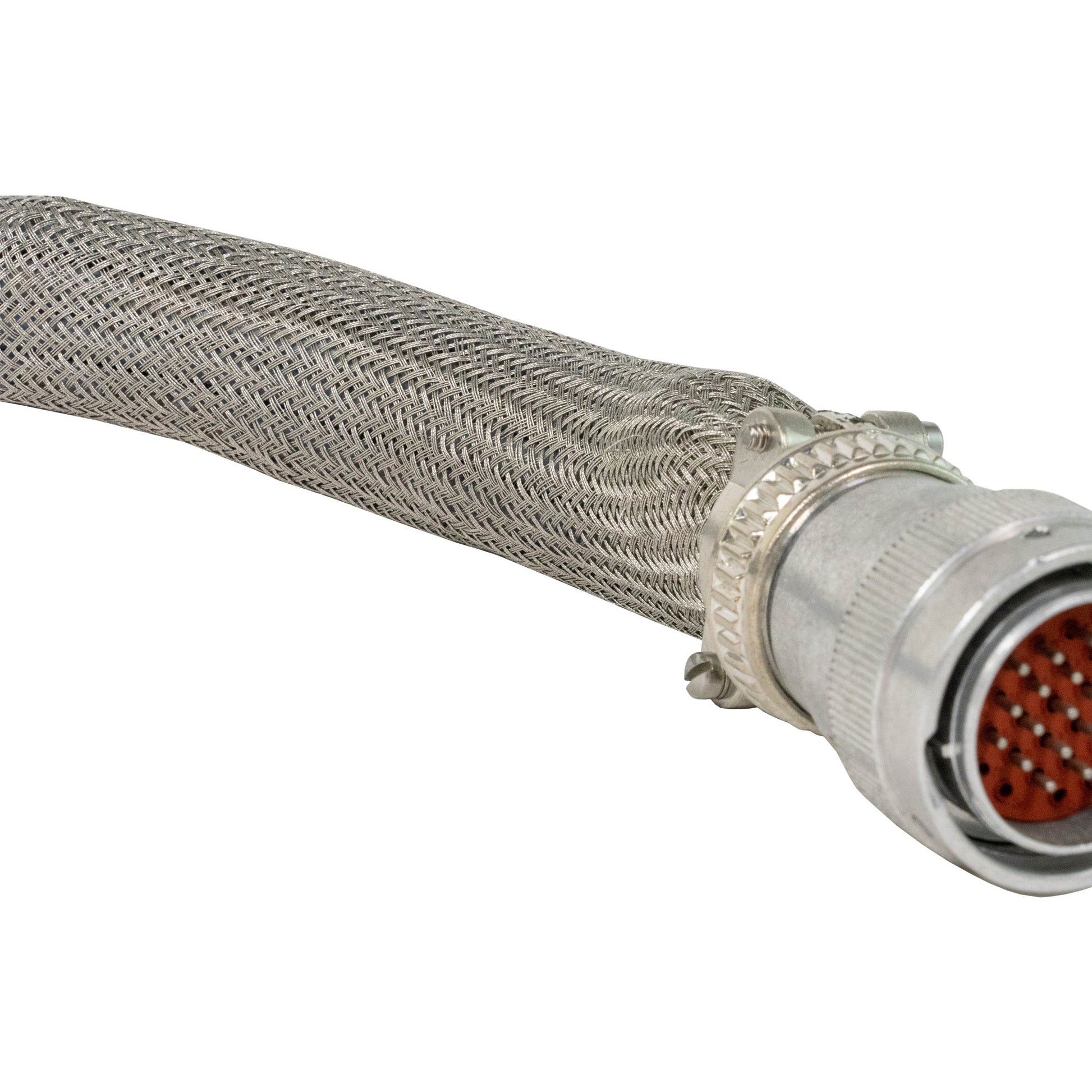

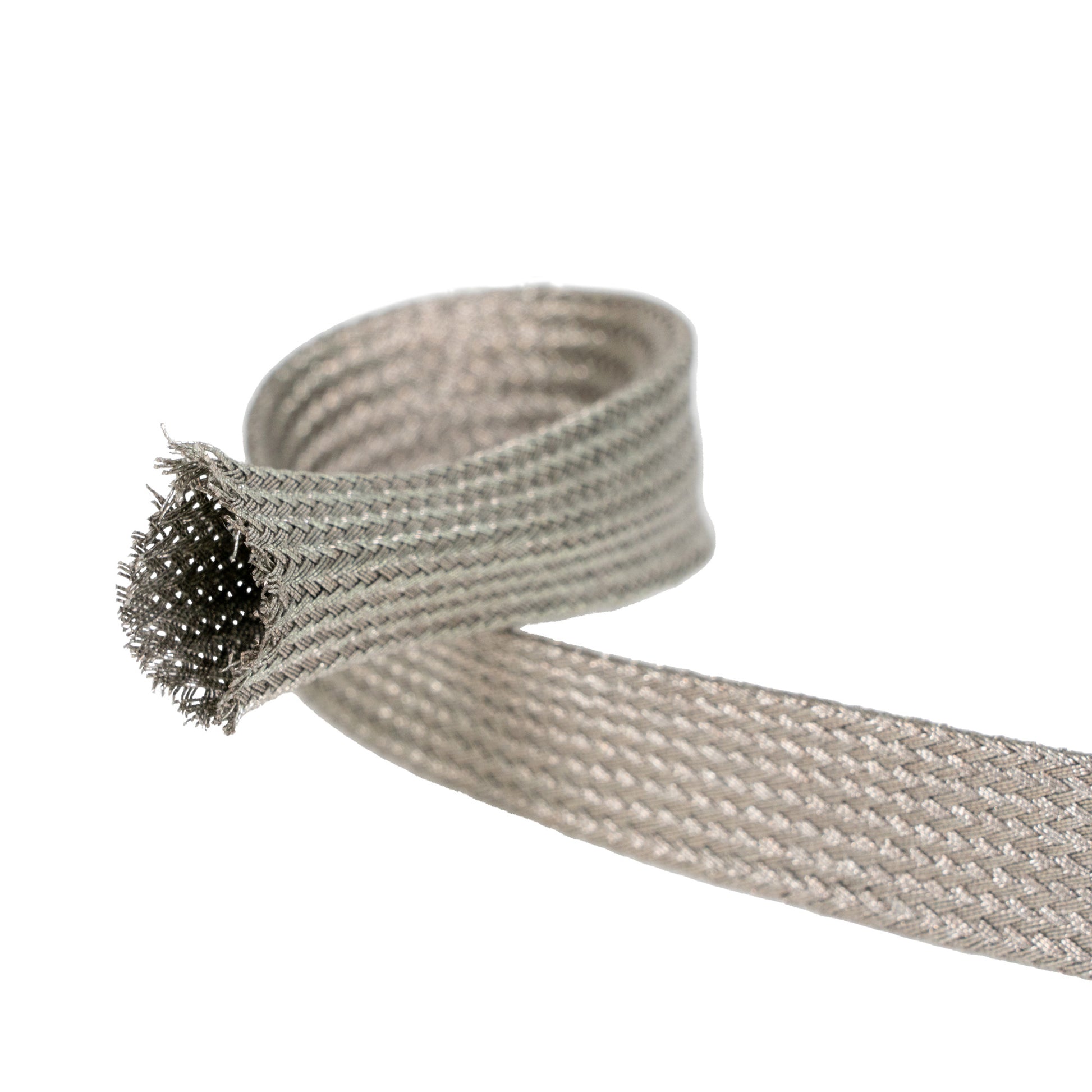

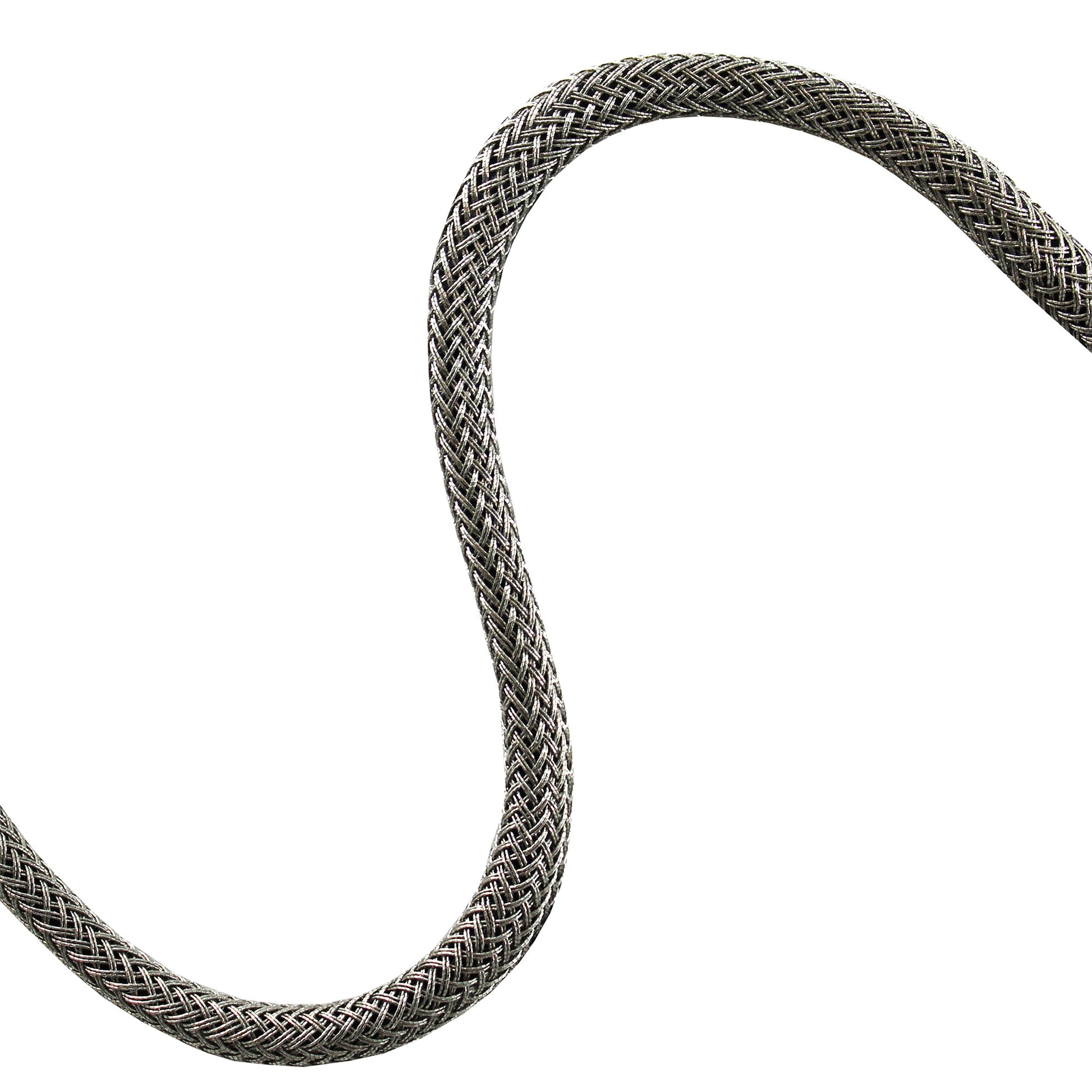

Z-Shield-Flex braided EMI shielding sleeve

A braided, expandable EMI, RFI and EMF shielding sleeve that is lightweight and flexible - an ideal solution for the aerospace industry.

Material Specification: z shield flex braided sleeve for shielding RoHS UL Recognized
Print Datasheet
View full details

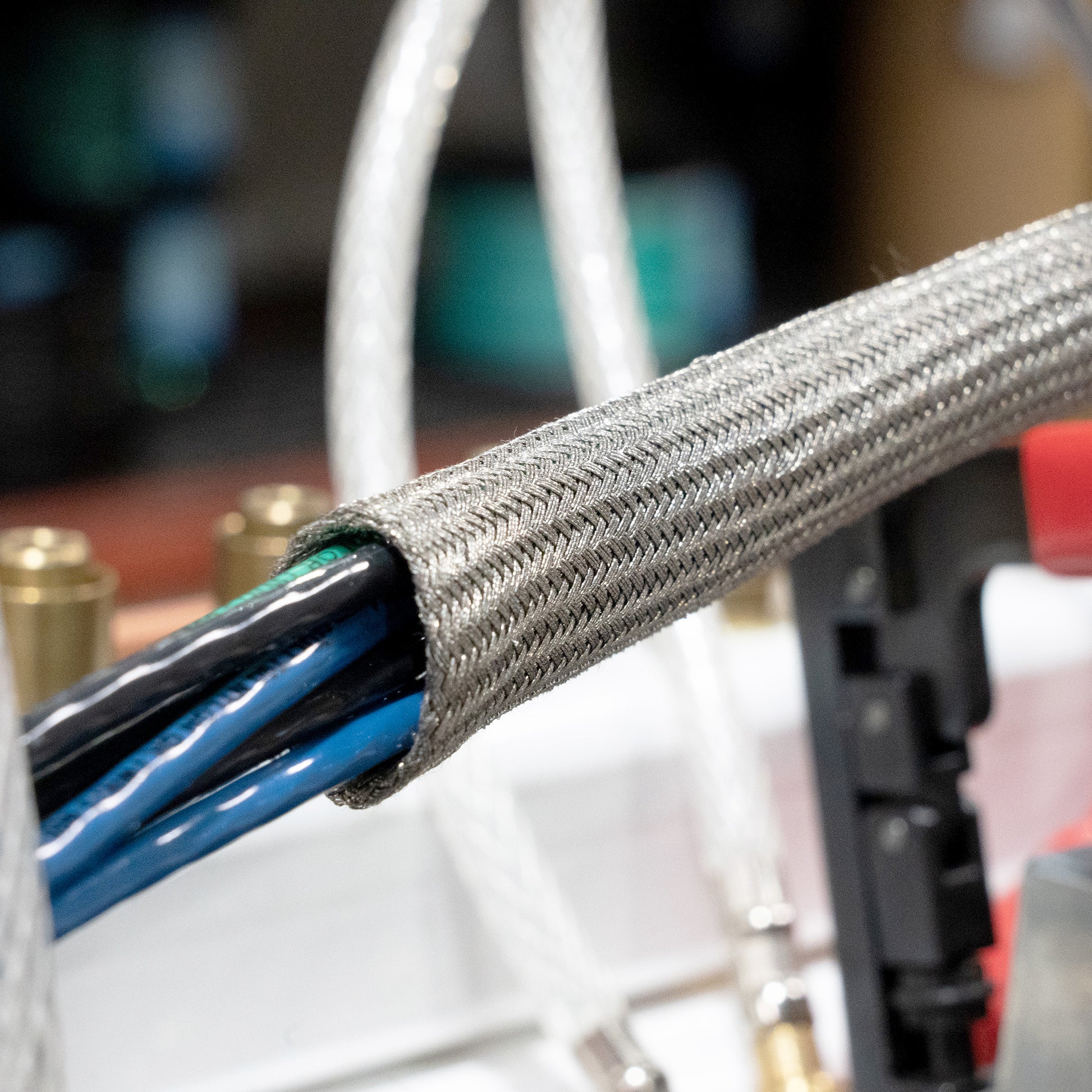

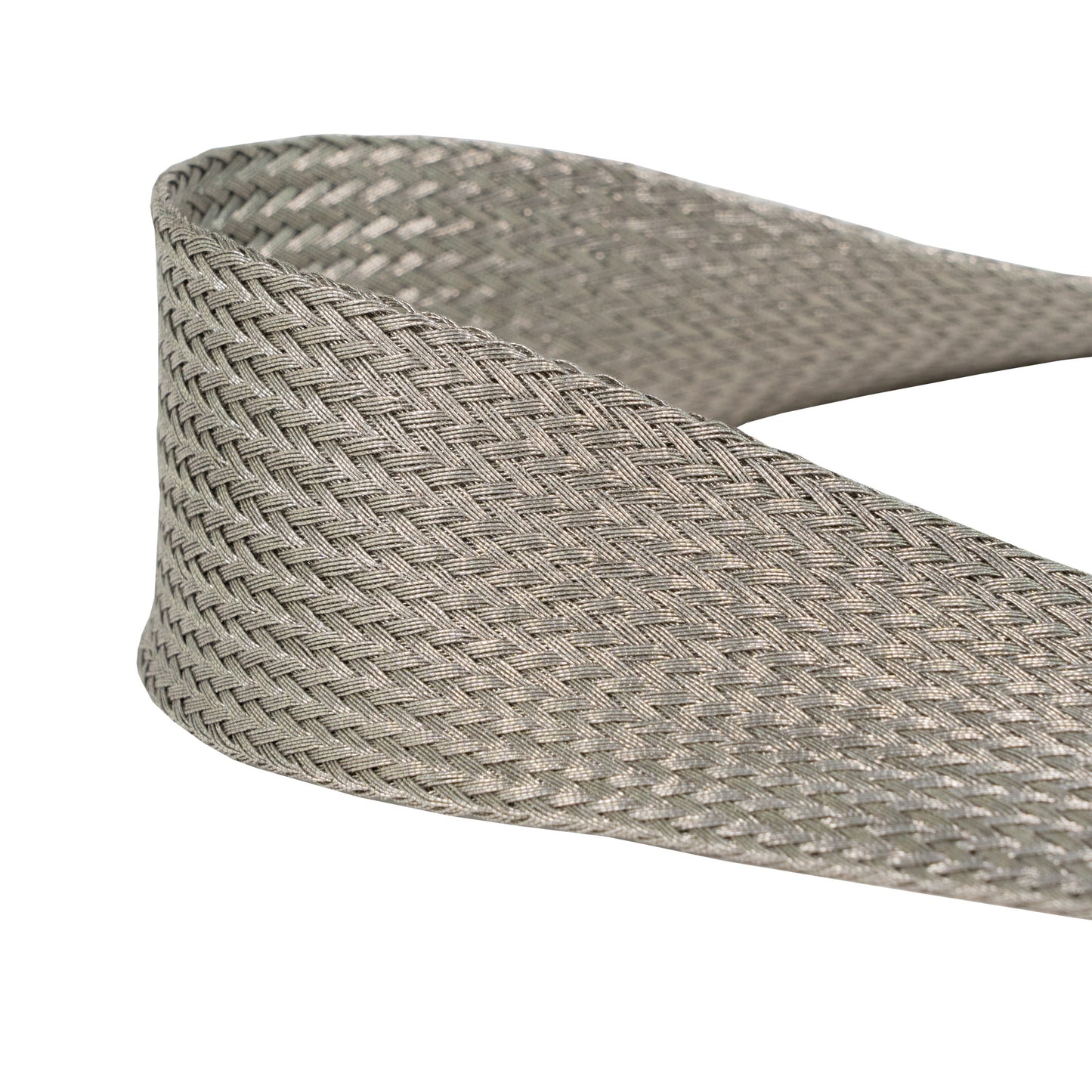

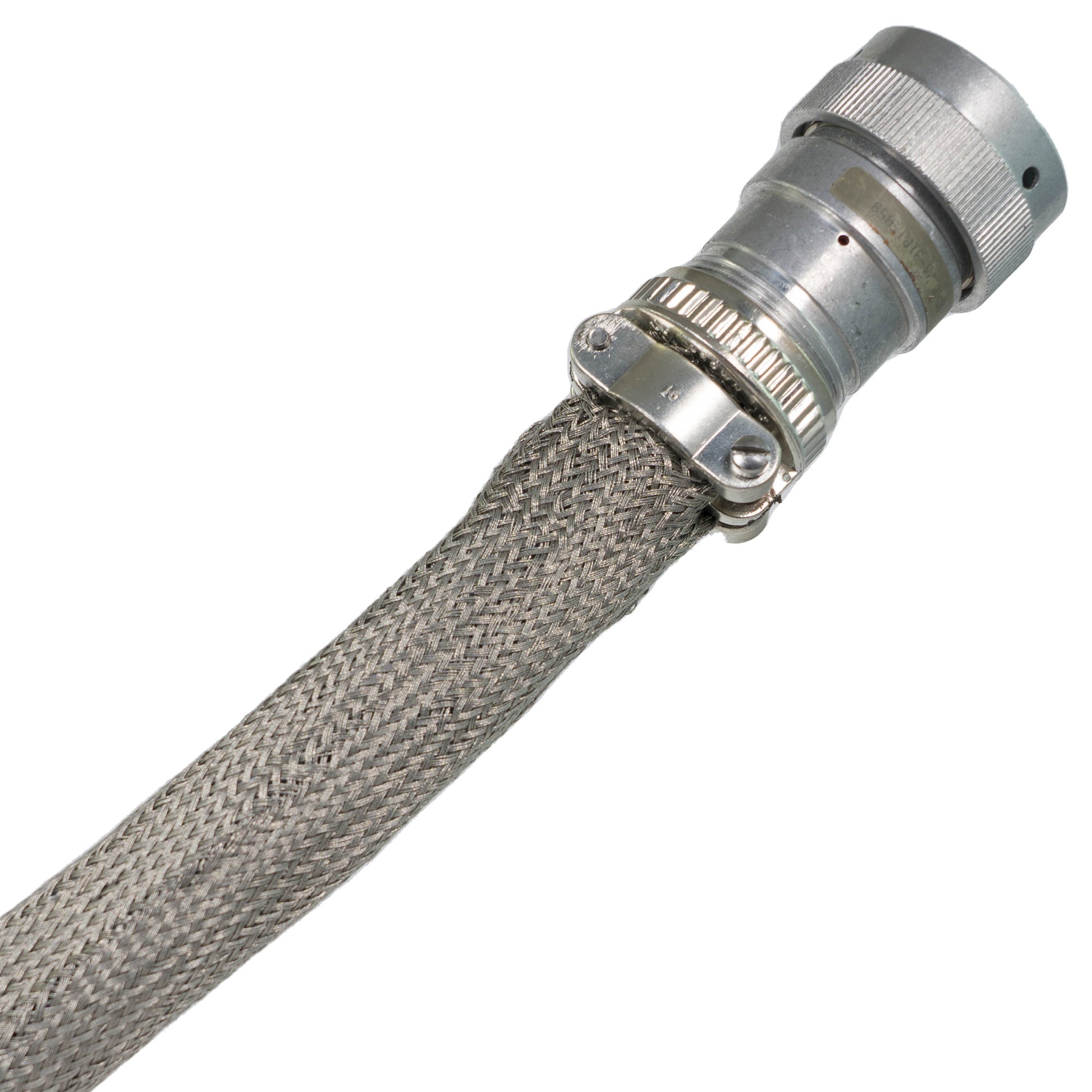

Z-Shield-Flex is an easy-to-install, closed EMC braided sleeving for shielding electronic cables against high-frequency interference. The construction consists of an aramid fabric with an overlying tinned copper braid. The product is UL listed (VW-1 No. E154480) and is characterized by high flexibility, low weight, and excellent shielding performance.

The attenuation performance ranges from 50 to 73 dB, depending on the diameter and frequency. The conduit is not designed to be opened and is therefore particularly suitable for permanent installations where no subsequent cable installation is required. It is temperature resistant from -15°C to +120°C. Z-Shield-Flex is available in diameters from approximately 3 to 40 mm.

Advantages:

  • Enclosed design – ideal for permanent EMC installations
  • Highly flexible aramid fabric with tinned copper mesh
  • High shielding effectiveness: up to 73 dB at 500 MHz
  • Lightweight, easy to process
  • UL certified (VW-1 No. E154480)
  • Temperature range -15°C to +120°C
  • Available for cable diameters from 3 to 40 mm

Areas of application:

  • IT and communication systems
  • Electronic devices in industry and medicine
  • Office electronics with RF sensitivity
  • Internal shielding of signal lines
  • arms industry
  • Applications without retrofitting requirements

Material Specification
