Z-Shield-Flex, braided EMI shielding tubing

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Shielded braided sleeving with UL approval, especially for ribbon cables. Continuous operating temperature up to max. 120°C. Available in various dimensions. Typical applications: automotive, transportation, robotics, energy, power and utilities

Specifications

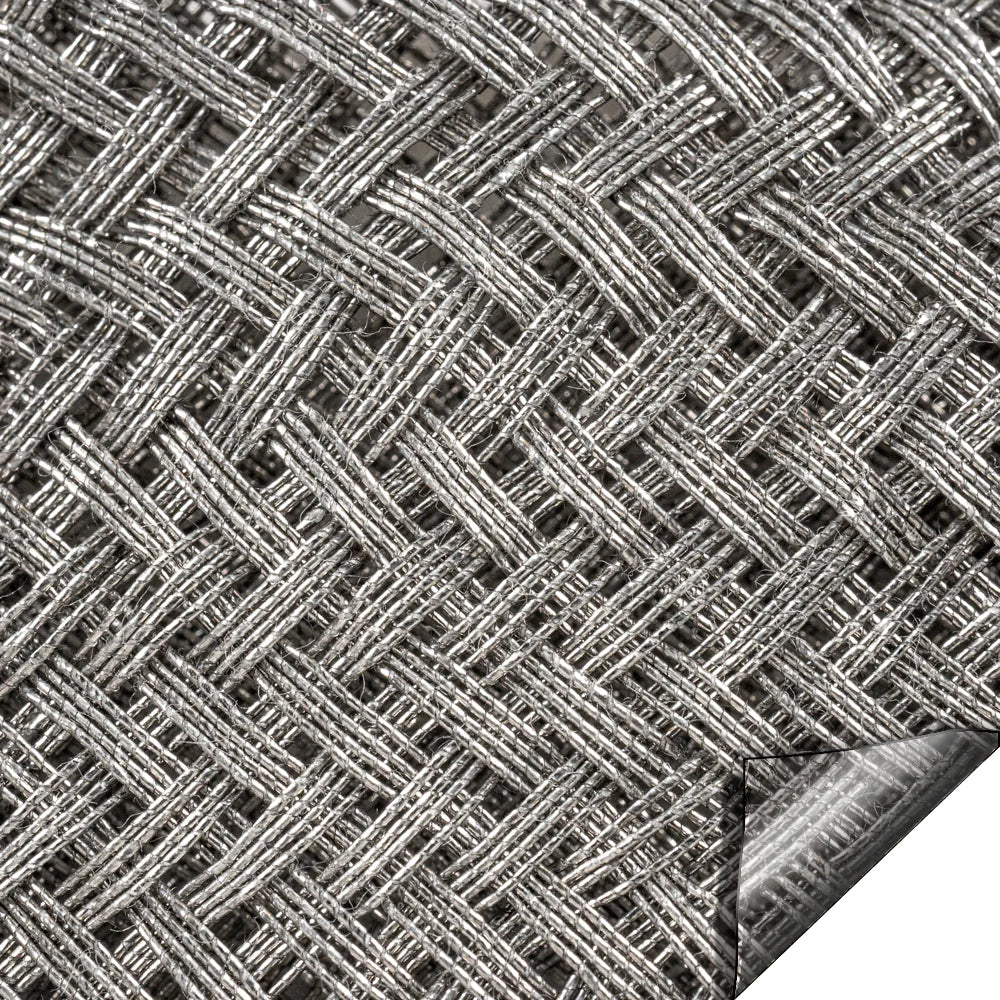

  • Material:Tinned copper foil wrapped around aramid thread, woven into a hose
  • UL approval:VW-1, #E154480
  • Temperature range:- 15 to + 120°C
  • Available on rolls:50 / 100m

Shielding Effectiveness

FSHP

ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for improper selection. Zipper-technik shielding published attenuation values ​​have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values ​​may vary due to installation techniques and final assembly parameters that are beyond Zipper-technik's control. Actual attenuation values ​​can only be determined by the end user testing the finished assembly.
