ZETREFLECTFELT 3.0 Al foil with glass fabric and PSA felt

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

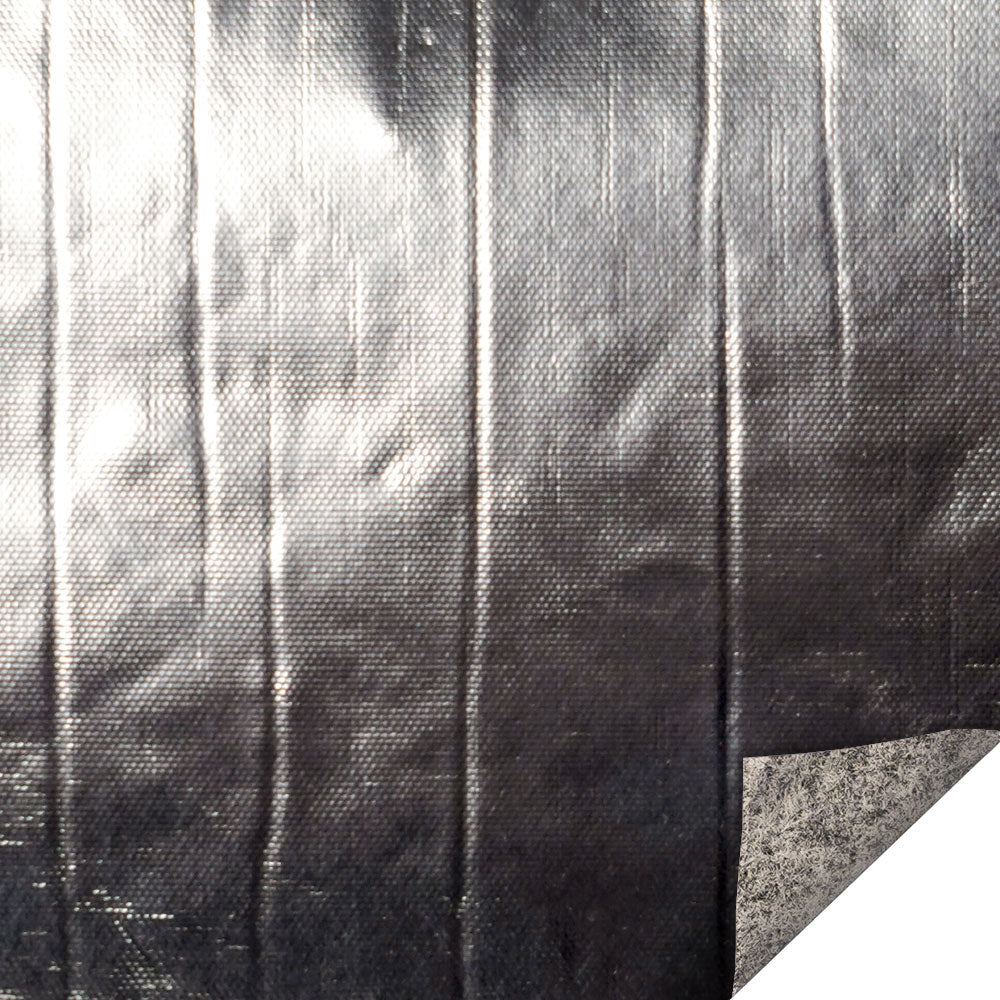

Zetreflectfelt 3.0 is a composite system patented by Zipper-technik made of a glass fabric that is laminated on one side with an aluminum foil for heat reflection. On the other side, the glass fabric is glued to a 2.8 mm thick felt made of PSA fibers. This achieves high insulation properties at relatively high application temperatures of 270°C (even up to 300°C for short periods). The high-quality material for protecting sensitive components is self-extinguishing in fire behavior.

Specifications

  • Basis weight:700 ± 15% g / m²
  • Thickness:3.0 ± 15%mm
  • Binding:canvas
  • Min. application temperature 24 hrs:- 50 °C
  • Max. application temperature permanent 1000 hours / short term 24 hours:+ 270 / + 300 °C
  • Fire behaviour:Passed 10 sec.

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
