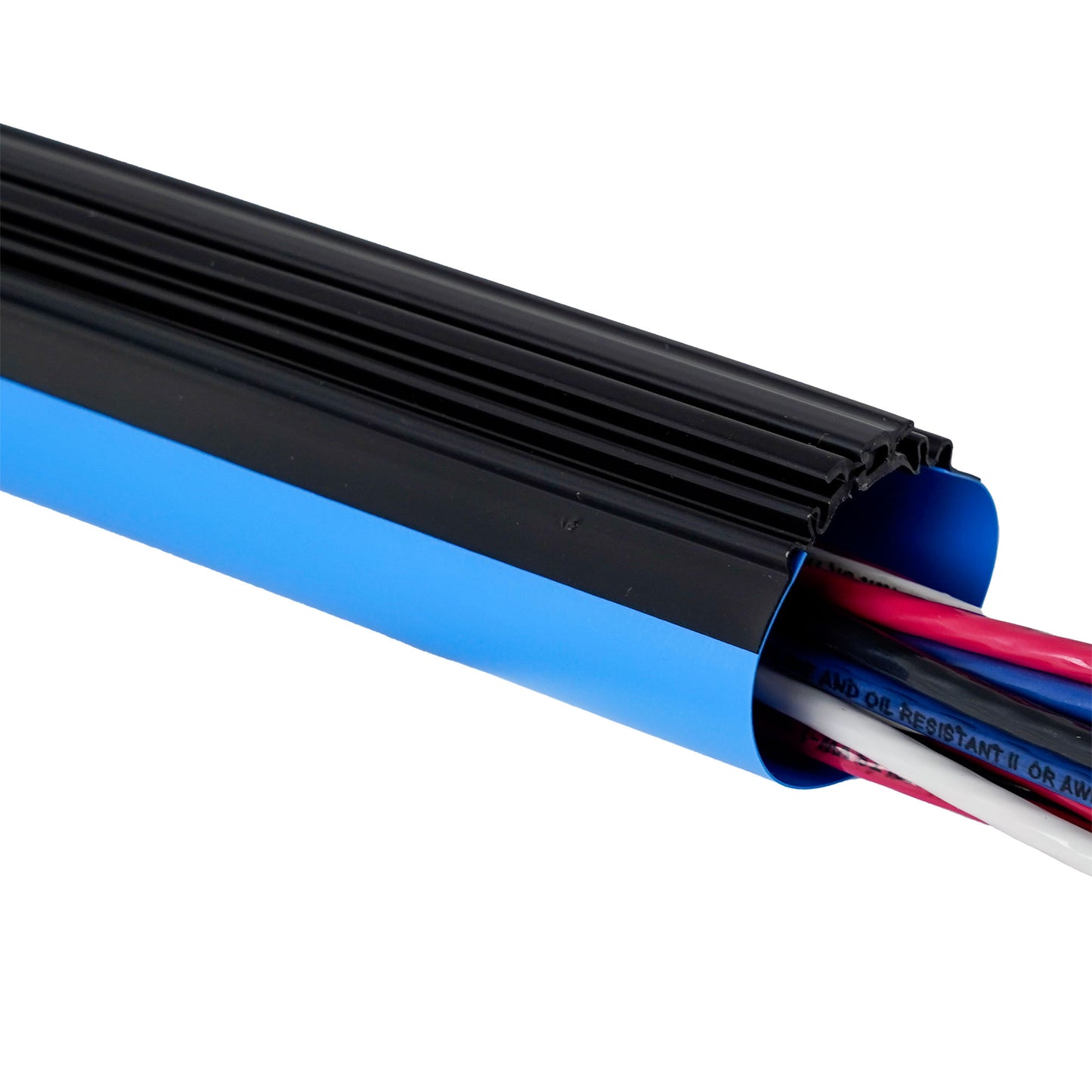

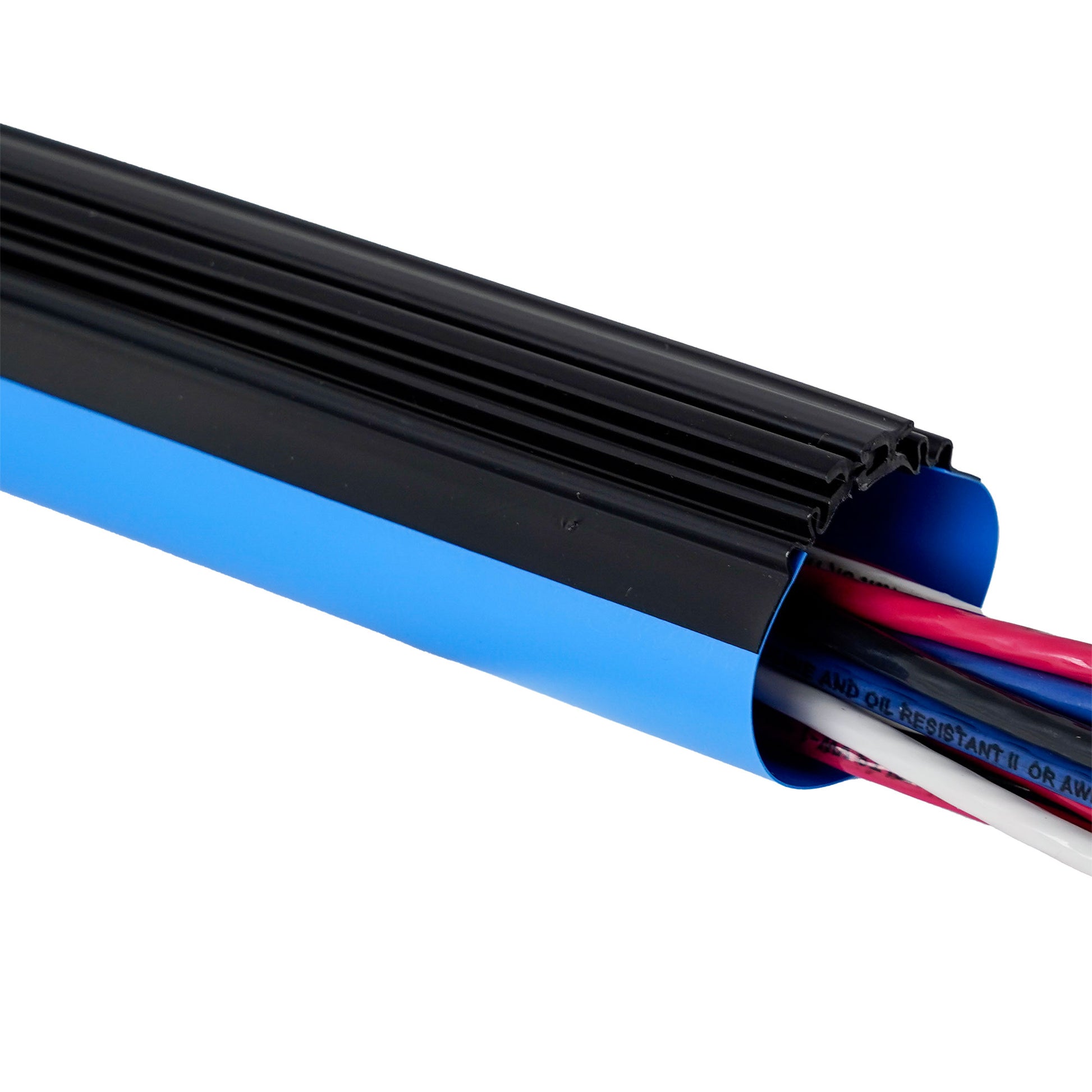

ZTD-x-GPs/63-B, cable bundling (D-Track)

Material Specification: gp 0 35 bl
Print Datasheet
View full details

Soft PVC film, 0.3 mm thick, UL registered, self-extinguishing, cadmium-free, continuous operating temperature up to 105°C. Available in various diameters and with overlap. Typical applications: automotive, transportation, robotics, energy, power and utilities.

The GPs/63 cable sheath with D-lock is a robust, all-round solution for the mechanical protection of cable bundles in industrial and technical applications. The durable woven material provides a reliable barrier against abrasion, contamination, and external influences. Thanks to the practical D-lock design, the sheath can be fitted precisely around existing installations and easily opened or replaced as needed.

Available in sizes from Ø 20 mm to Ø 100 mm; custom sizes are always possible.

Advantages:

  • High abrasion resistance and mechanical strength
  • Reusable for maintenance and replacement
  • Flexible adaptation to existing cable bundles
  • Protection against dust and dirt particles

Areas of application:

  • Mechanical and plant engineering
  • automotive industry
  • aviation technology
  • Railway and transport technology

Material Specification
