ZTZ-x-GPs-B, cable bundling

0.3 mm PVC sheathing with Z-lock for tidy cable routing.

Material Specification: gps

Part Number:

Print Datasheet
View full details

Overview

Soft PVC film, 0.3 mm thick, self-extinguishing, cadmium-free, continuous operating temperature up to 105°C. Available in various diameters and with overlaps. Typical applications: automotive, transportation, robotics, energy, power and utilities.

GPs B with Z-lock is designed for permanent, secure closure in industrial applications. The cadmium-free, self-extinguishing PVC film offers high abrasion and media resistance and is resistant to UV radiation and ozone. The extruded Z-lock ensures a uniform, stable connection along the entire length; assembly is simple and repeatable.

This model covers diameters of 20–100 mm; custom sizes are available. Typical operating temperatures: -30°C to +105°C.

Advantages:

  • Z-lock – stable, tool-required closure
  • Cadmium-free, self-extinguishing PVC film
  • Abrasion, UV/ozone and media resistance
  • Repeatable installation with fixed cable runs
  • Typical temperature range: -30°C to +105°C

Areas of application:

  • Cable protection in machine/plant engineering
  • Bundling in fixed installations and routes
  • Retrofitting in switchgear and control cabinet construction
  • Cabling in vehicles and stationary systems

Material Specification

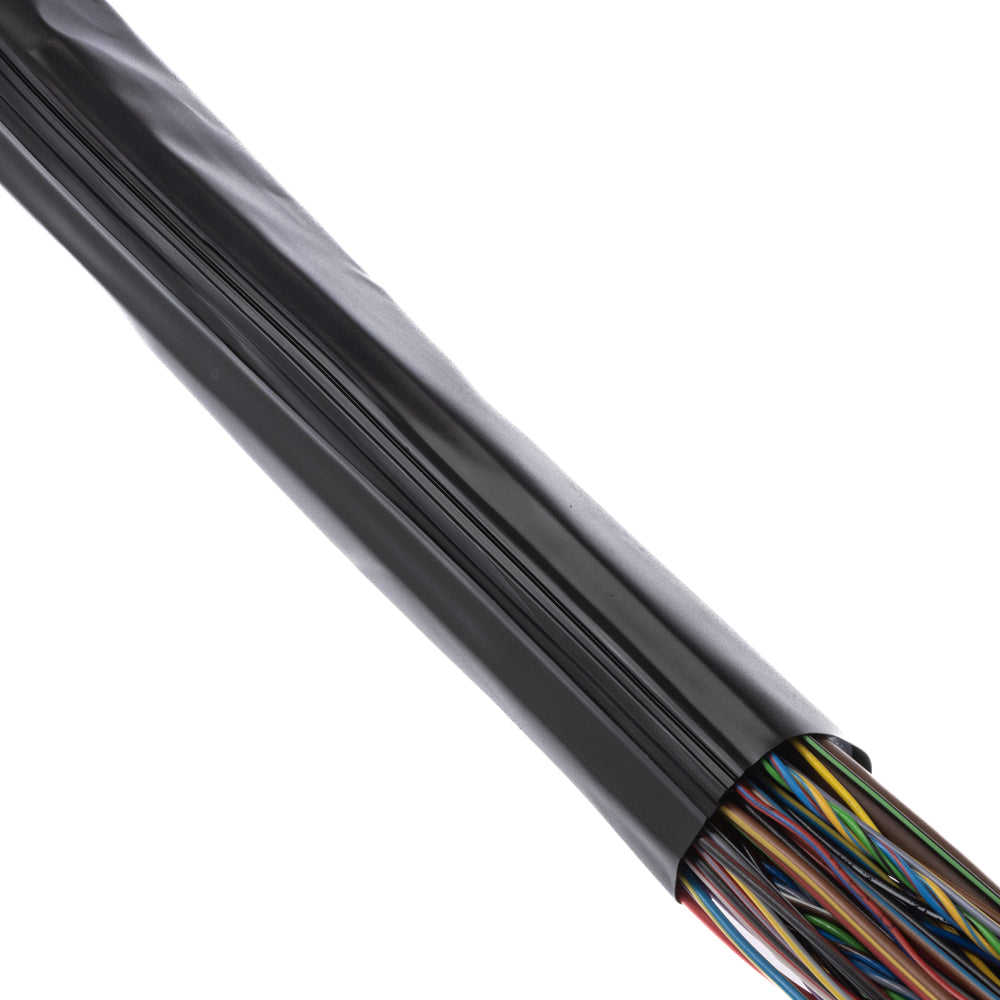

ZTZ-x-GPs-B_Ansicht_1

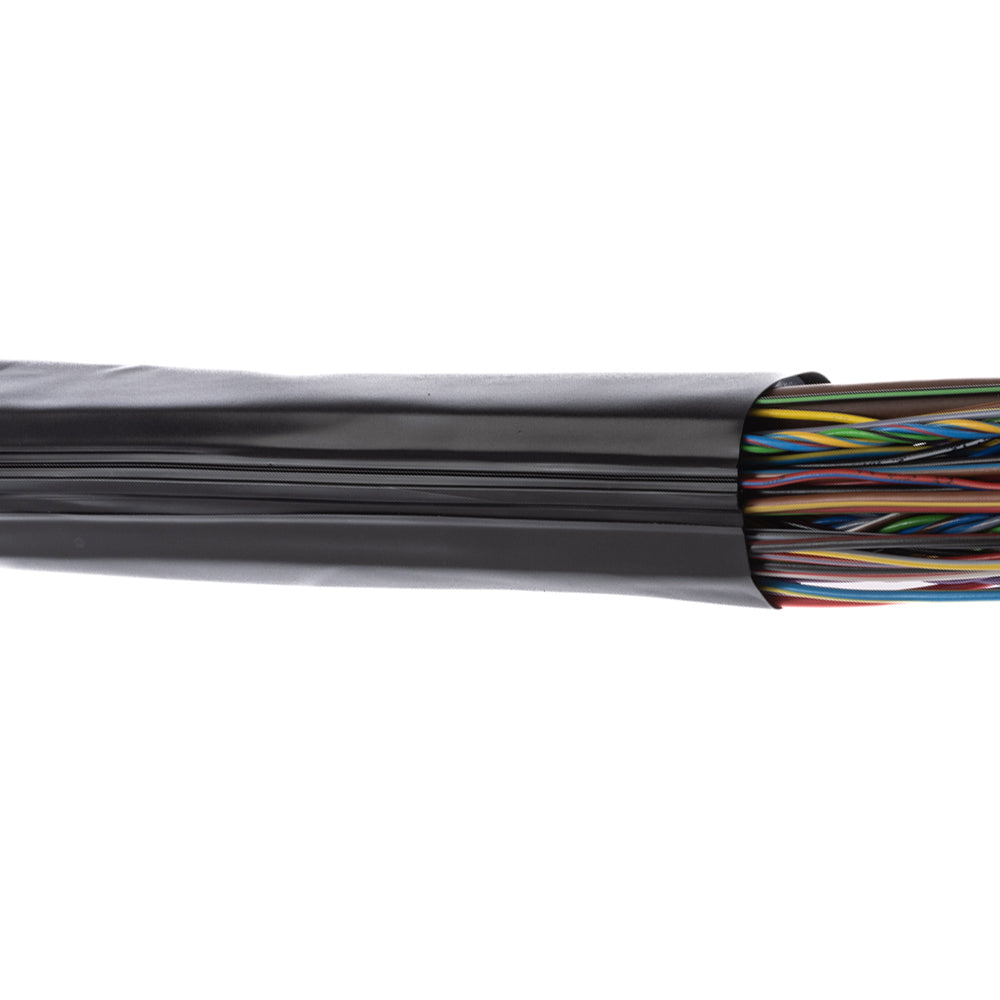

ZTZ-x-GPs-B_Ansicht_2

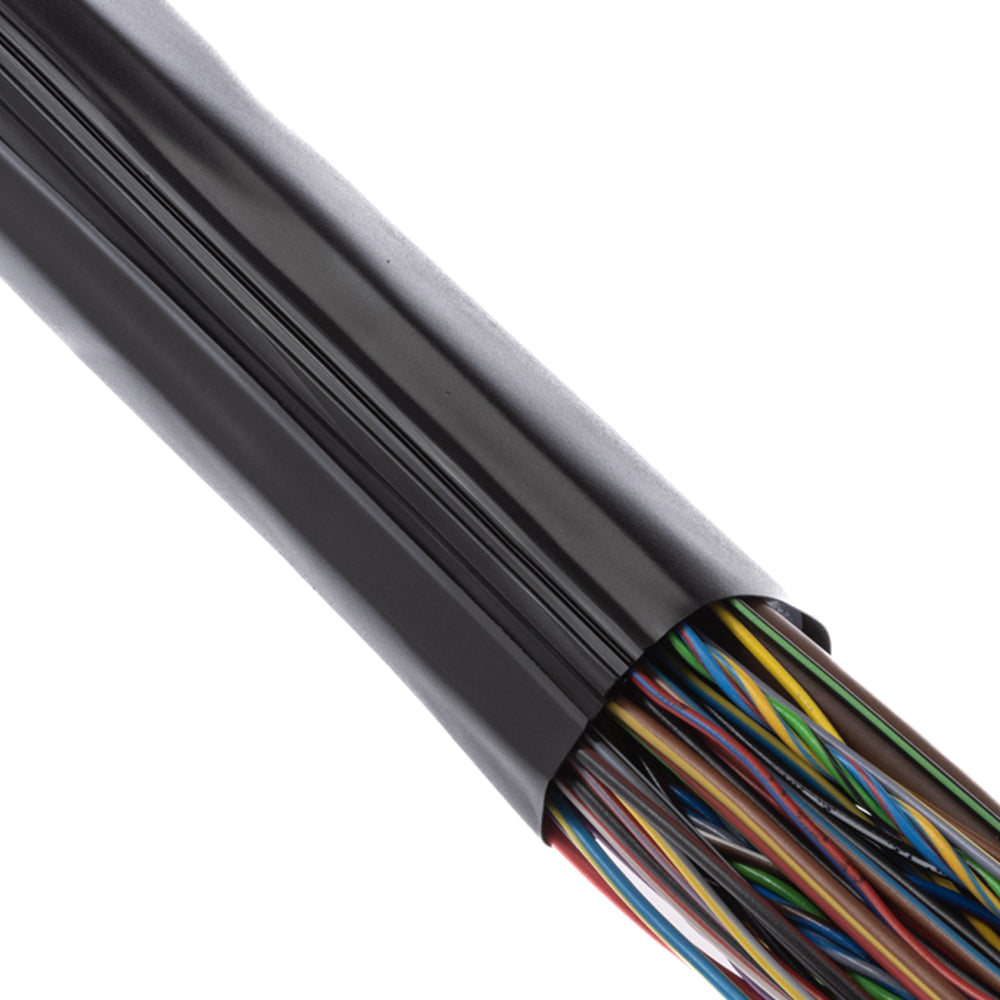

ZTZ-x-GPs-B_Detail_1

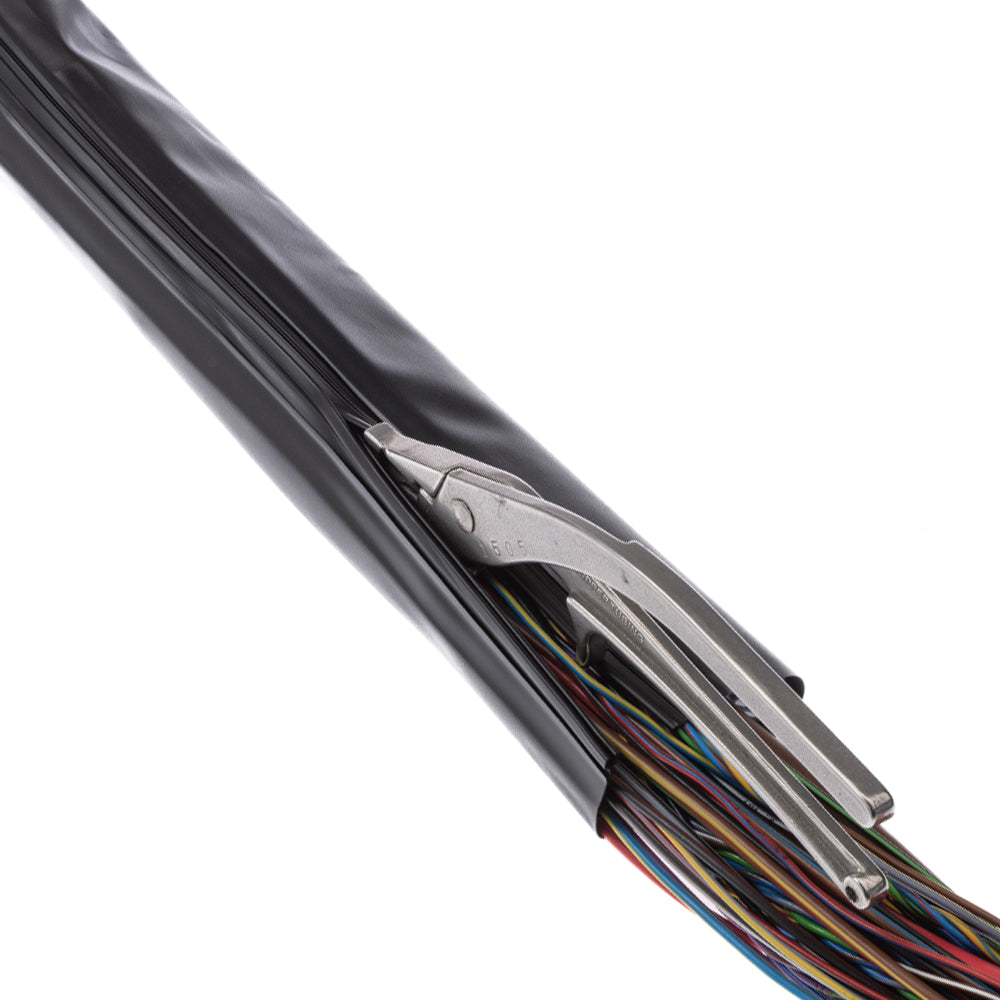

ZTZ-x-GPs-B_Ansicht_5
