ZTN-x-GP-05-B, cable bundling

Material Specification: gp 05
Print Datasheet
View full details

Soft PVC film, 0.5 mm thick, self-extinguishing, cadmium-free, continuous operating temperature up to 105°C. Available in various diameters and with overlaps. Typical applications: automotive, transportation, robotics, energy, power and utilities.

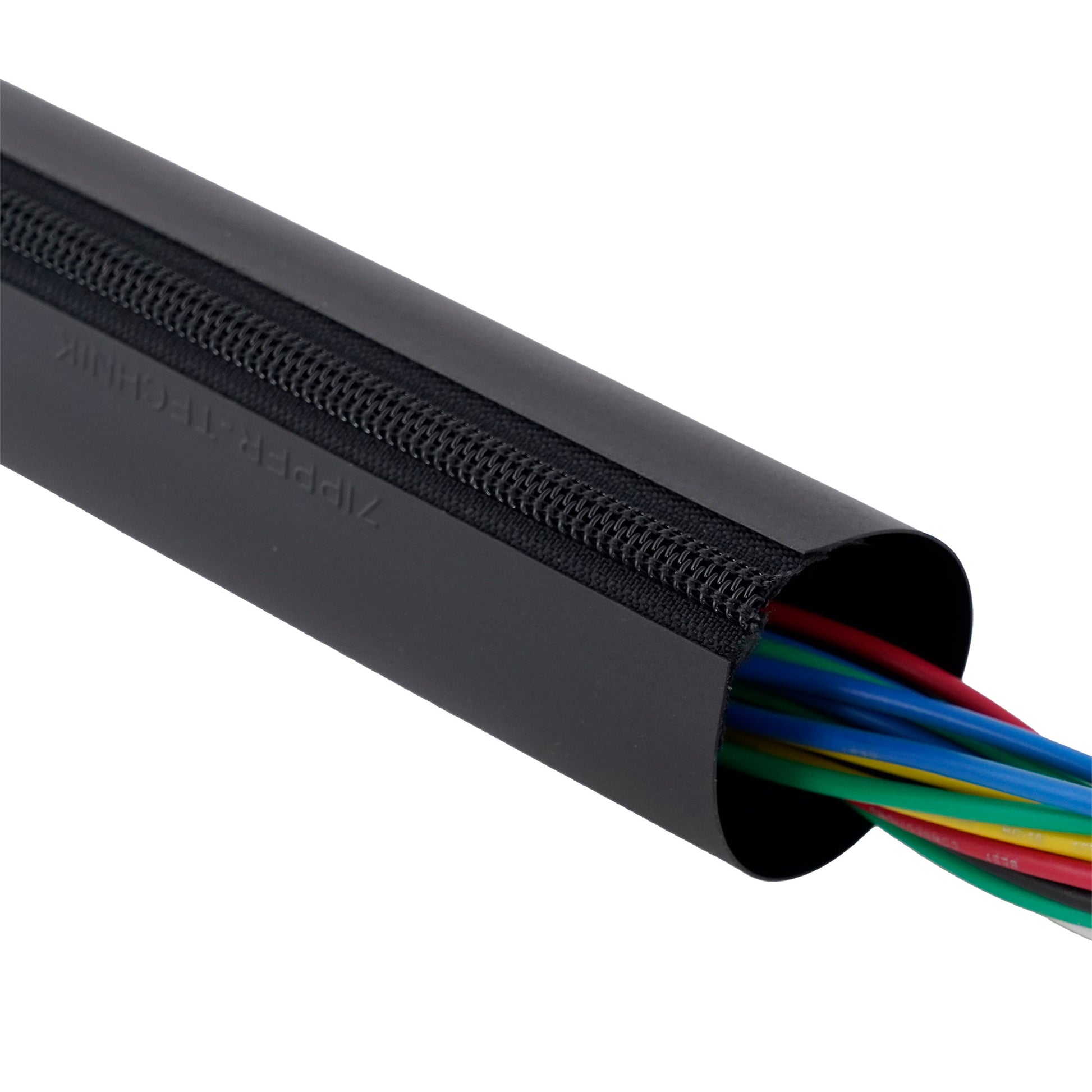

ZTN-GP-05-B is a closed cable sheath with an integrated N-lock (zipper closure), ideally suited for retrofit installations. The sheath is made of flexible, self-extinguishing, and cadmium-free PVC film, providing reliable protection against mechanical stress, liquids, UV radiation, and ozone.

The N-lock provides a secure, reusable closure that can be installed with simple tools. The ZTN-GP-05-B is suitable for cable diameters from 20 to 100 mm and an operating temperature range of -40°C to +105°C. Special sizes and versions with predefined lengths are available upon request.

This variant is specifically designed for maintenance areas, modular systems and dynamic applications.

Advantages:

  • Zipper (N-closure) for easy maintenance closure
  • Soft, self-extinguishing PVC film, cadmium-free
  • Resistant to abrasion, UV radiation, liquids and ozone
  • Temperature range -40°C to +105°C
  • For Ø 20–100 mm; custom sizes available on request

Areas of application:

  • Cabling in modular or dynamic systems
  • Control units with access requirements
  • Automotive engineering and industrial automation
  • Cable protection with occasional maintenance requirements

Material Specification
