ZTN-x-GPs-B, cable bundling

Material Specification: gps
Print Datasheet
View full details

Soft PVC film, 0.3 mm thick, self-extinguishing, cadmium-free, continuous operating temperature up to 105°C. Available in various diameters and with overlaps. Typical applications: automotive, transportation, robotics, energy, power and utilities.

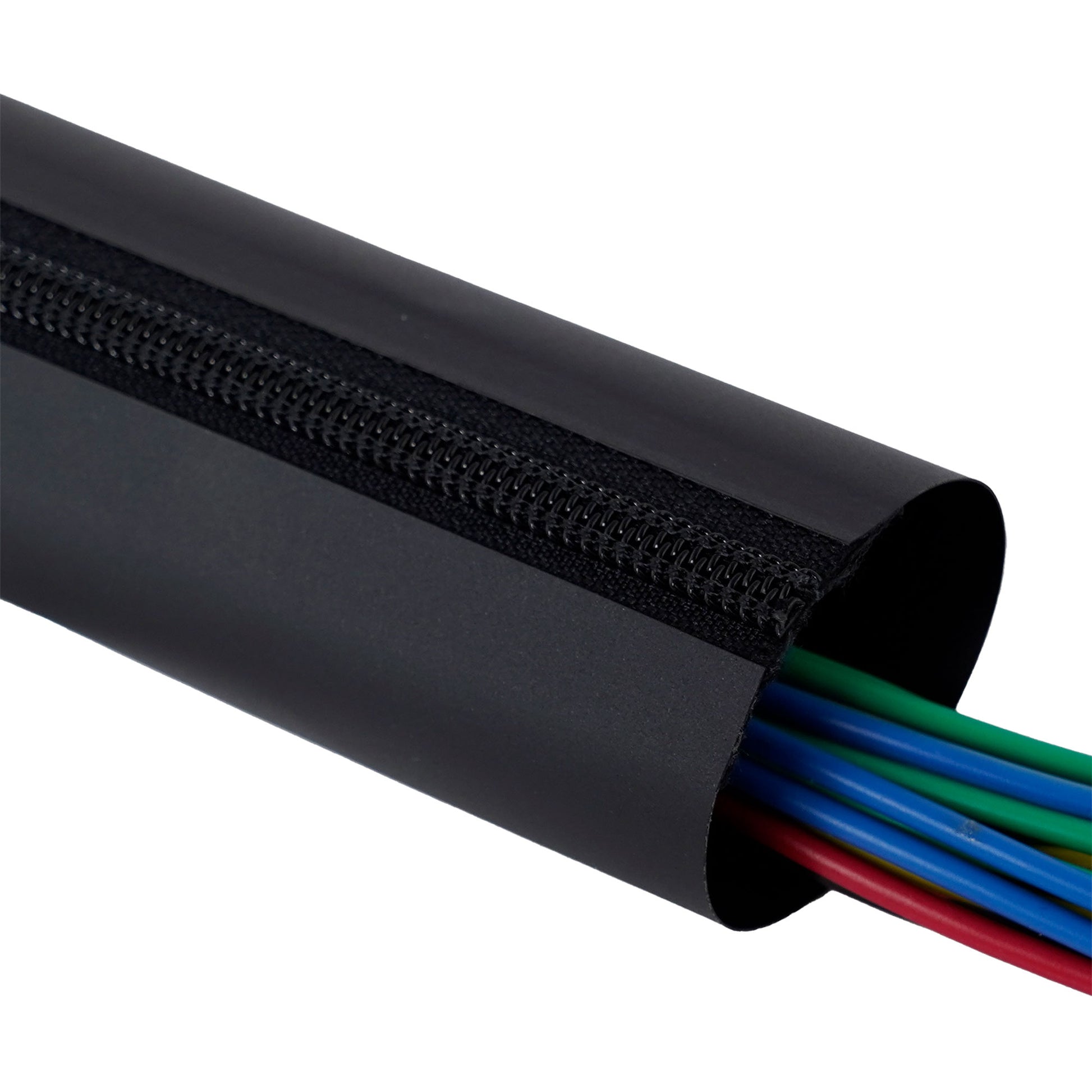

GPs B with N closure combines flexible cable protection with easy access for servicing. The PVC film is cadmium-free, self-extinguishing, and resistant to abrasion, UV/ozone, and many operating fluids. The N closure, with its zipper design, allows for repeated opening and closing with simple tools – without any significant loss of sealing effectiveness.

This variant covers diameters of 20–100 mm; custom sizes are available upon request. Typical temperature range: -30°C to +105°C.

Advantages:

  • N closure (zipper) for repeatable access
  • Self-extinguishing, flexible PVC film, cadmium-free
  • Abrasion-resistant, UV/ozone resistant, media resistant
  • Easy handling for maintenance and adjustment
  • Typical operating range: -30°C to +105°C

Areas of application:

  • Maintenance-friendly installations and test benches
  • Temporary/changing cable routing
  • Retrofitting in mechanical and automotive engineering
  • Control technology with regular interventions

Material Specification
