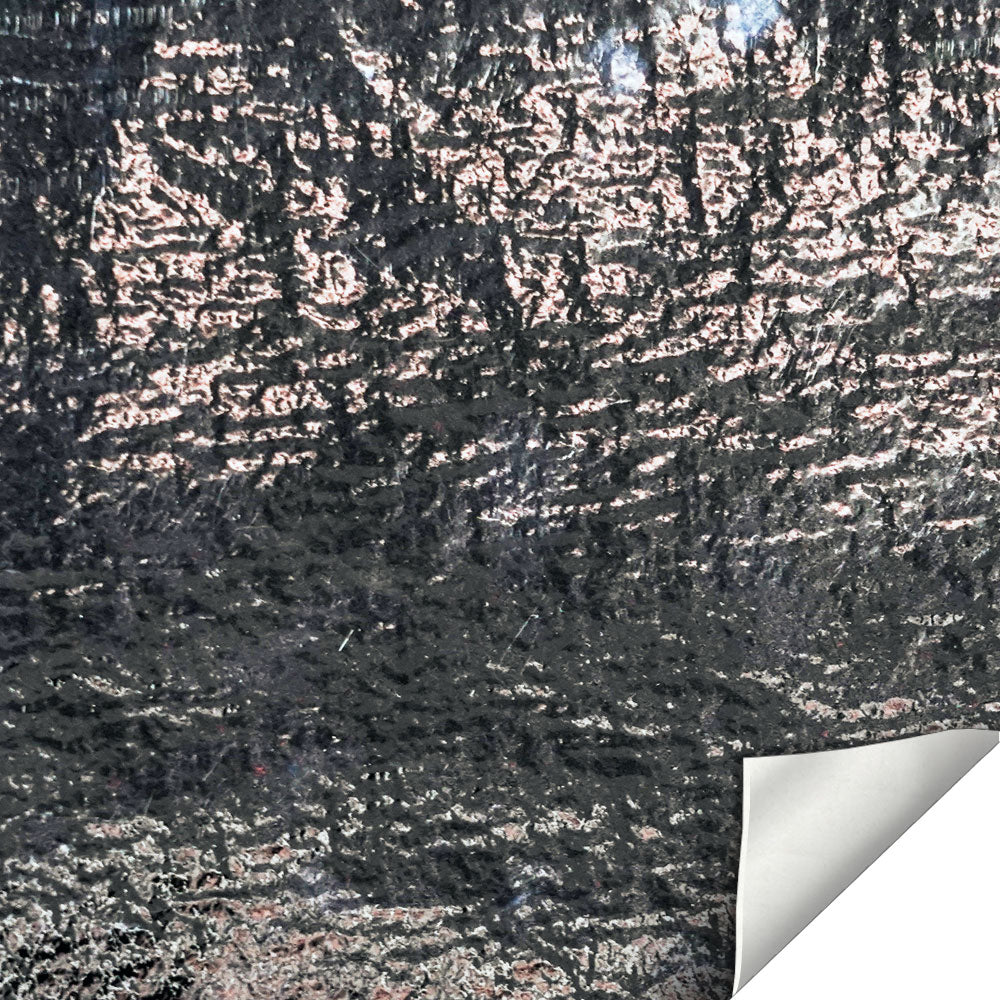

ZIPFLECT 2.5 - Aluminium-PET foil, laminated on felt

RoHS REACH Compliant
View full details
Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

ZIPFLECT® 2.5 is an insulating heat protection material made of AL-PET film with PES fiber felt on the back.

Typical material properties

  • AL-PET film with PES fiber felt
  • Thickness: approx. 2.5 mm
  • Temperature range: up to +200 °C continuously

Typical areas of application

  • Insulating heat protection
  • Moderate to high temperature ranges
  • Industrial thermal insulation applications

Specifications

  • Basis weight:390 ± 15% g / m²
  • Thickness:2.5 ± 15%mm
  • Min. application temperature 24 hrs:- 40 °C
  • Max. application temperature permanent 1000 hours / short term 24 hours:+ 200 / + 230 °C
  • Fire behaviour:Passed mm / min

Specifications are subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but accuracy or completeness cannot be guaranteed under all circumstances. Before using Zipper-technik products, the user must determine suitability for the intended use and assumes full responsibility for any improper selection.
