Zipmesh (Al)

Self-adhesive HF shielding tape with a wire mesh on an AL/PET film for EMC wrapping of cables and branch connections.

Material Specification: shx 2

Select Product Options

Part Number:

Print Datasheet
View full details

Overview

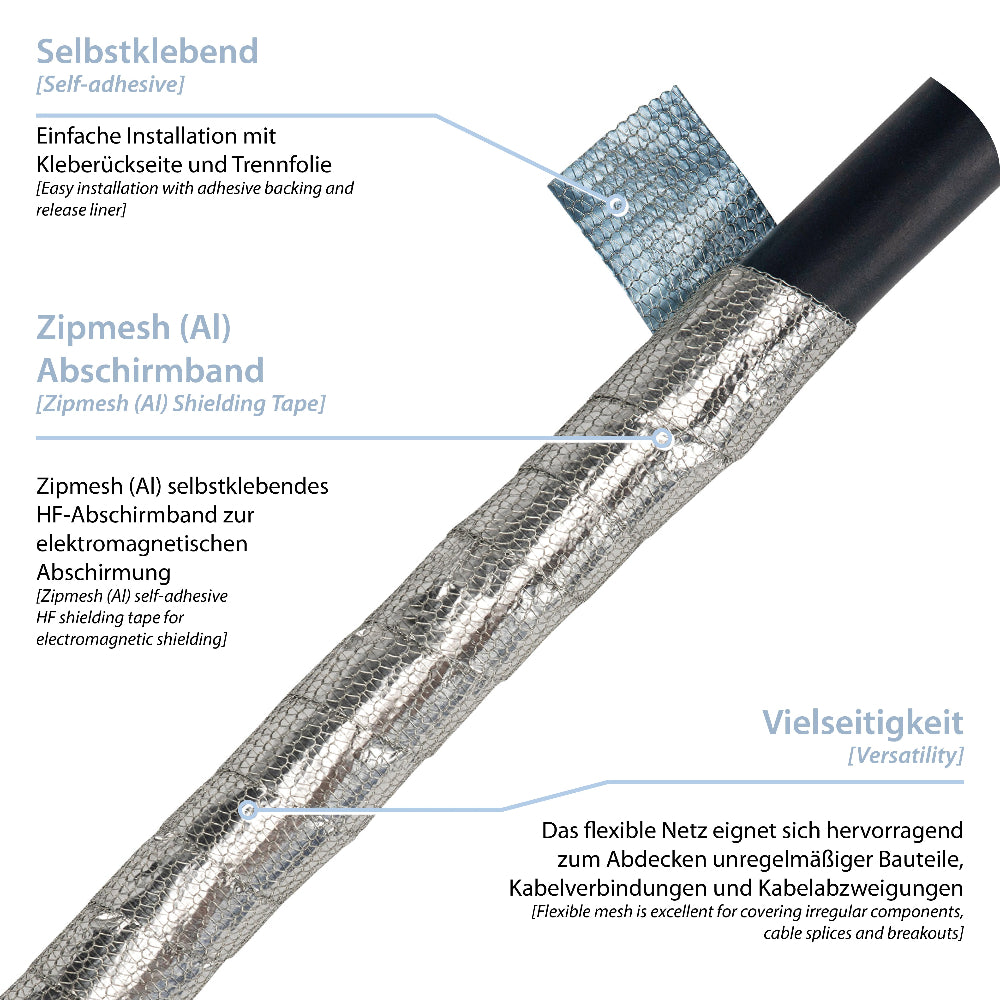

Zipmesh-Al_Info
Advantages
  • HF shielding over a wide frequency range
  • Self-adhesive design for secure attachment
  • Tinned copper wire, Ø 0.15 mm
  • Temperature-resistant from −30 °C to +120 °C
  • Mechanically flexible wrapping
  • RoHS-compliant
Application
  • EMC shielding of cables and cable harnesses
  • Wrapping of branch connections
  • Additional shielding measures in industrial systems
  • Applications involving motion or vibration

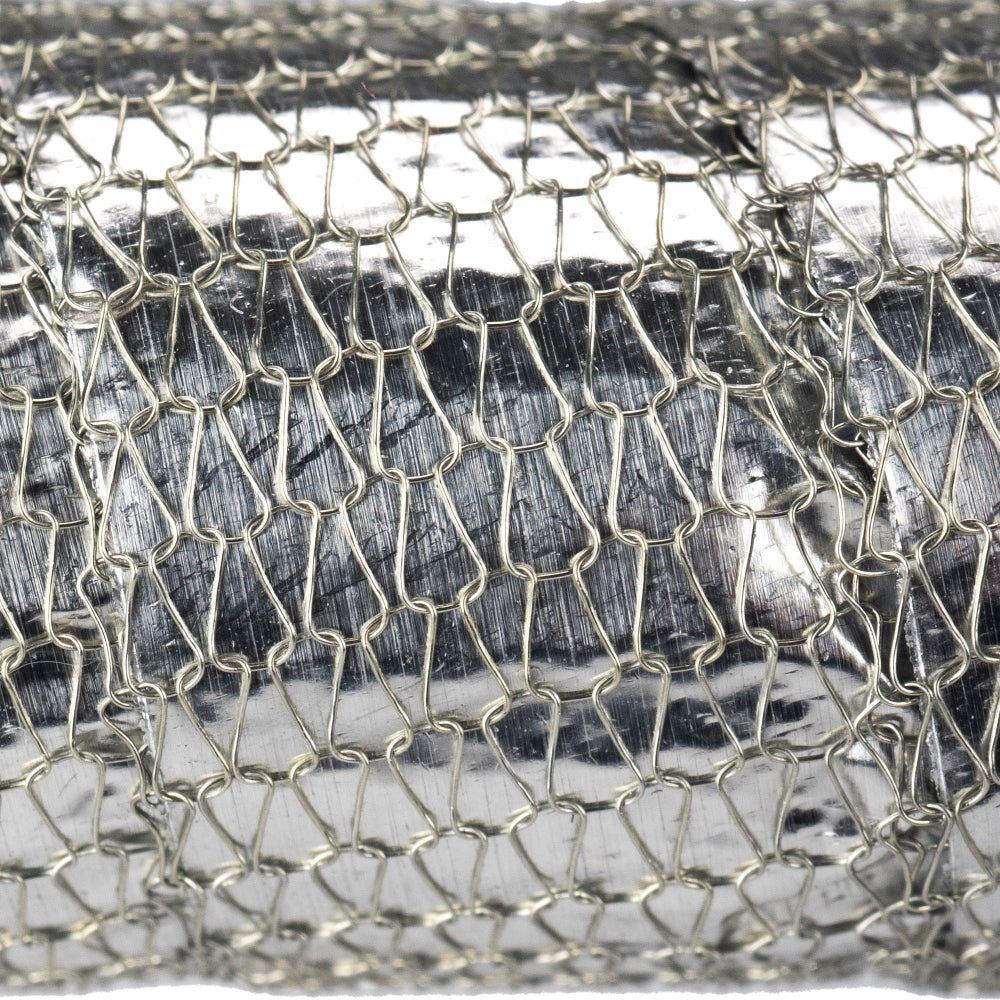

ZIPMESH (Al) is a self-adhesive HF shielding tape designed for electromagnetic shielding across a wide frequency range. Its construction is based on a knitted mesh of tinned copper wire on an Al/PET film.

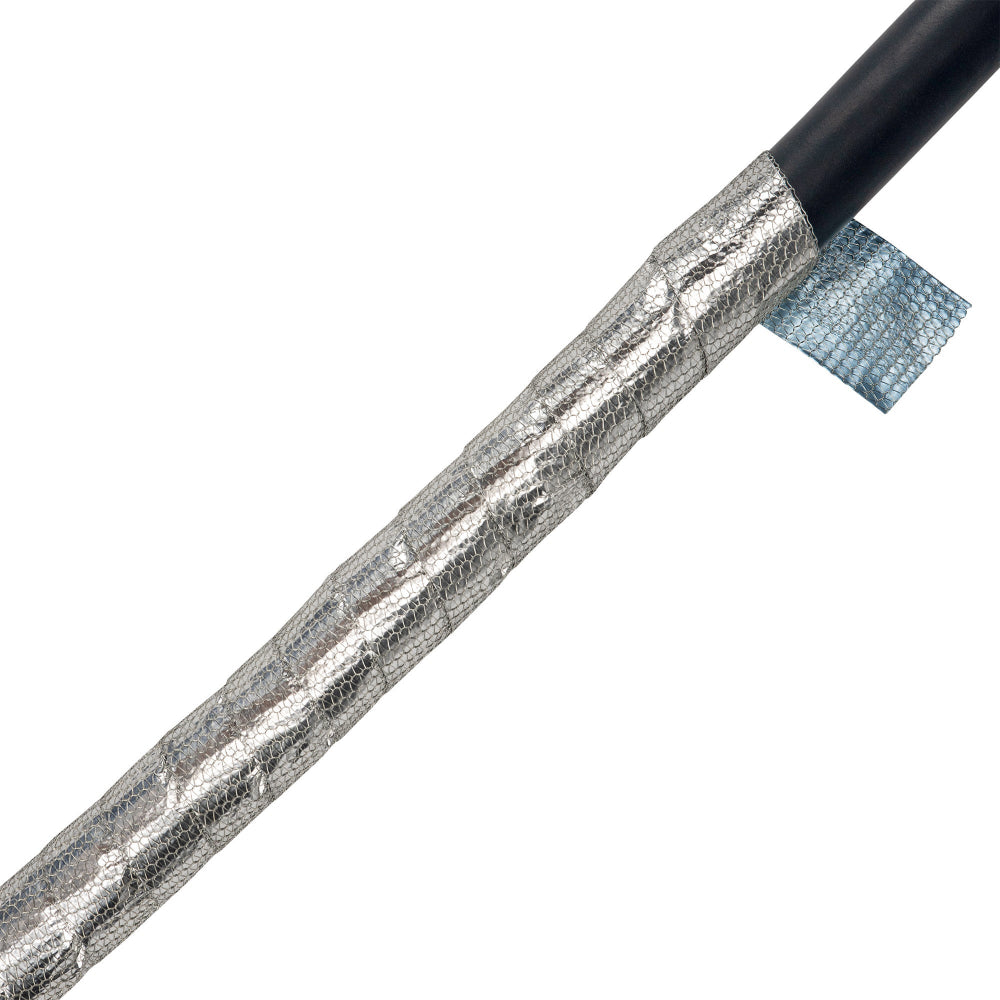

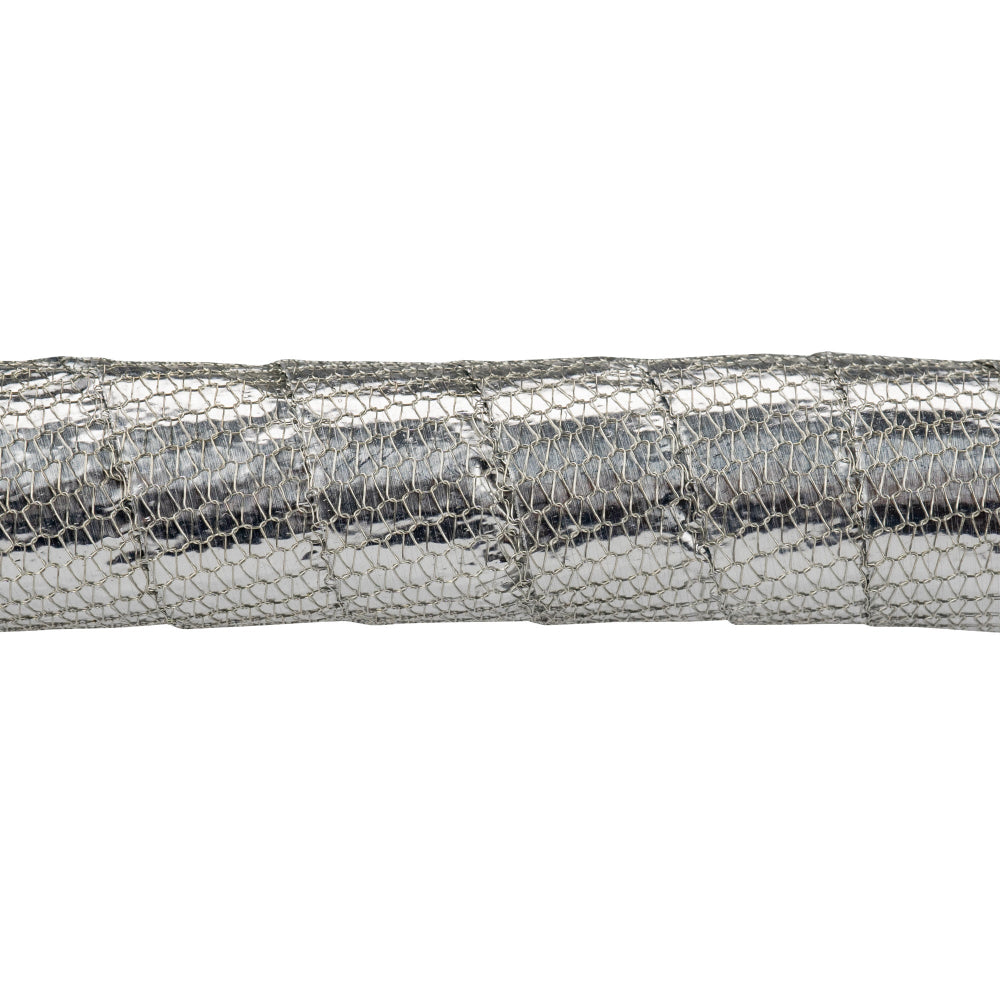

The tape is wrapped around cables, cable bundles, or branch points with 50% overlap. The integrated self-adhesive film ensures secure positioning even during movement or vibration.

The temperature resistance ranges from −30 °C to +120 °C.
The total weight is 16 g/m.

ZIPMESH is RoHS-compliant.
A grounding tape is recommended for effective grounding.

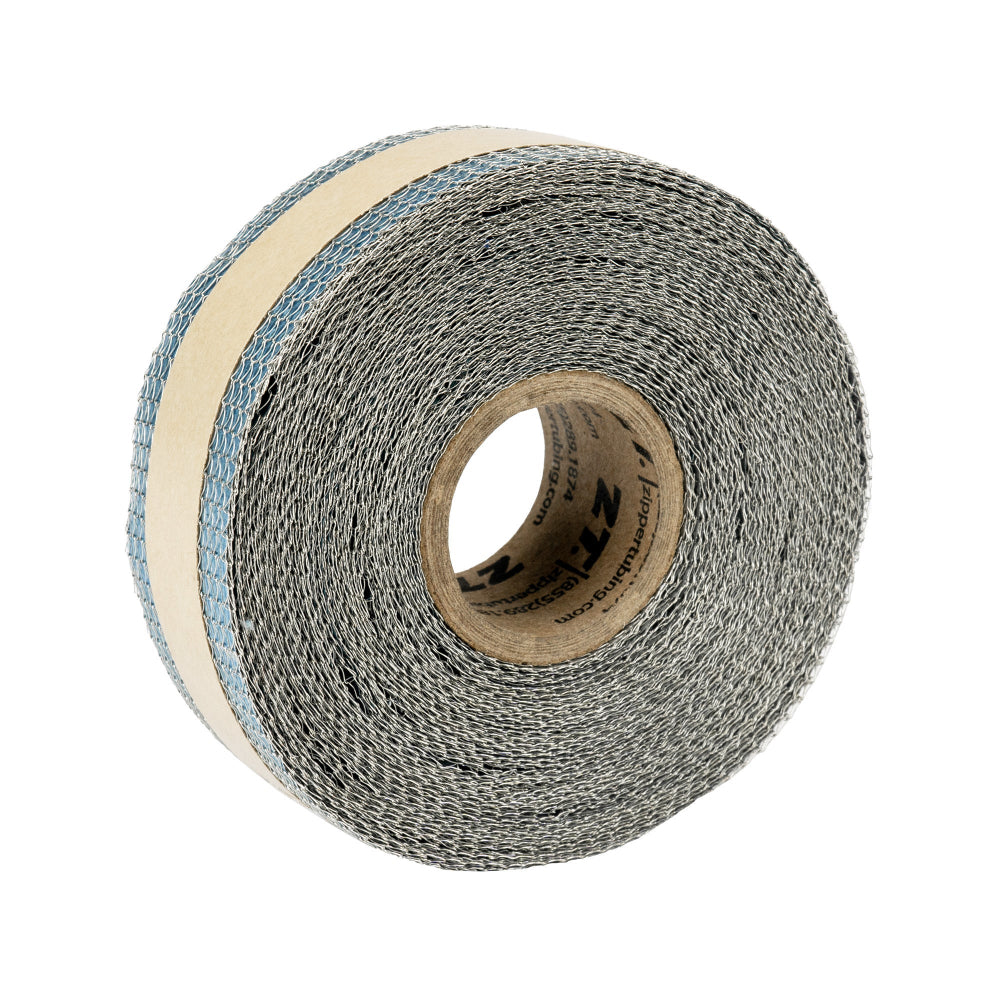

The tape is available on rolls with a width of 25 mm (optionally 75 mm) and a length of 5 m.
