Zipmesh (CU)

Self-adhesive HF shielding tape with a wire mesh on copper foil for EMC wrapping of cables and bundles.

Material Specification: shx 2

Select Product Options

Part Number:

Print Datasheet
View full details

Overview

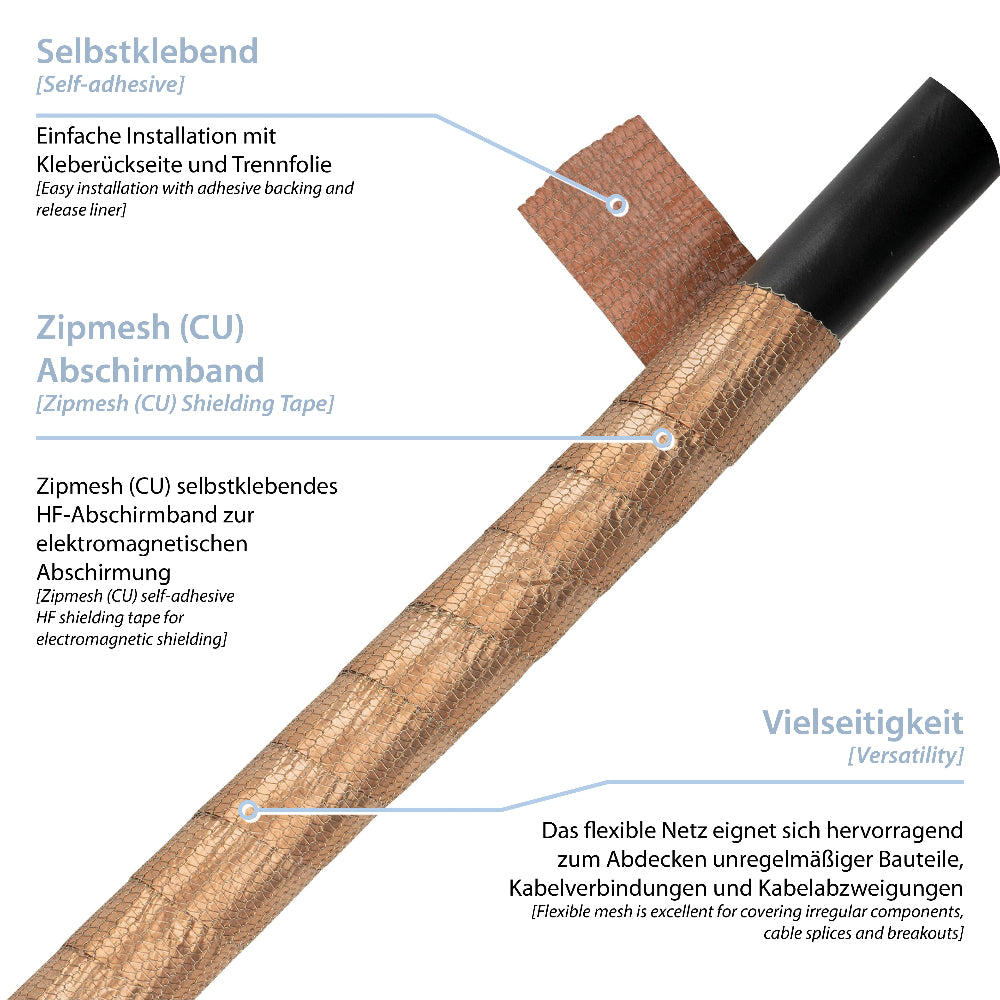

Zipmesh-CU_Info
Advantages
  • RF shielding over a wide frequency range
  • Copper-based carrier film
  • Self-adhesive backing
  • Tinned copper wire, Ø 0.15 mm
  • Temperature range: −30 °C to +120 °C
  • RoHS-compliant
Application
  • EMC Shielding of Cable Systems
  • Additional Shielding Measures for EMC-Critical Areas
  • Wrapping of Cable Branches
  • Industrial Installations with Increased EMC Requirements

ZIPMESH (CU) is a self-adhesive HF shielding tape featuring a wire mesh on a copper foil backing. This construction provides Faraday shielding across a wide frequency range.

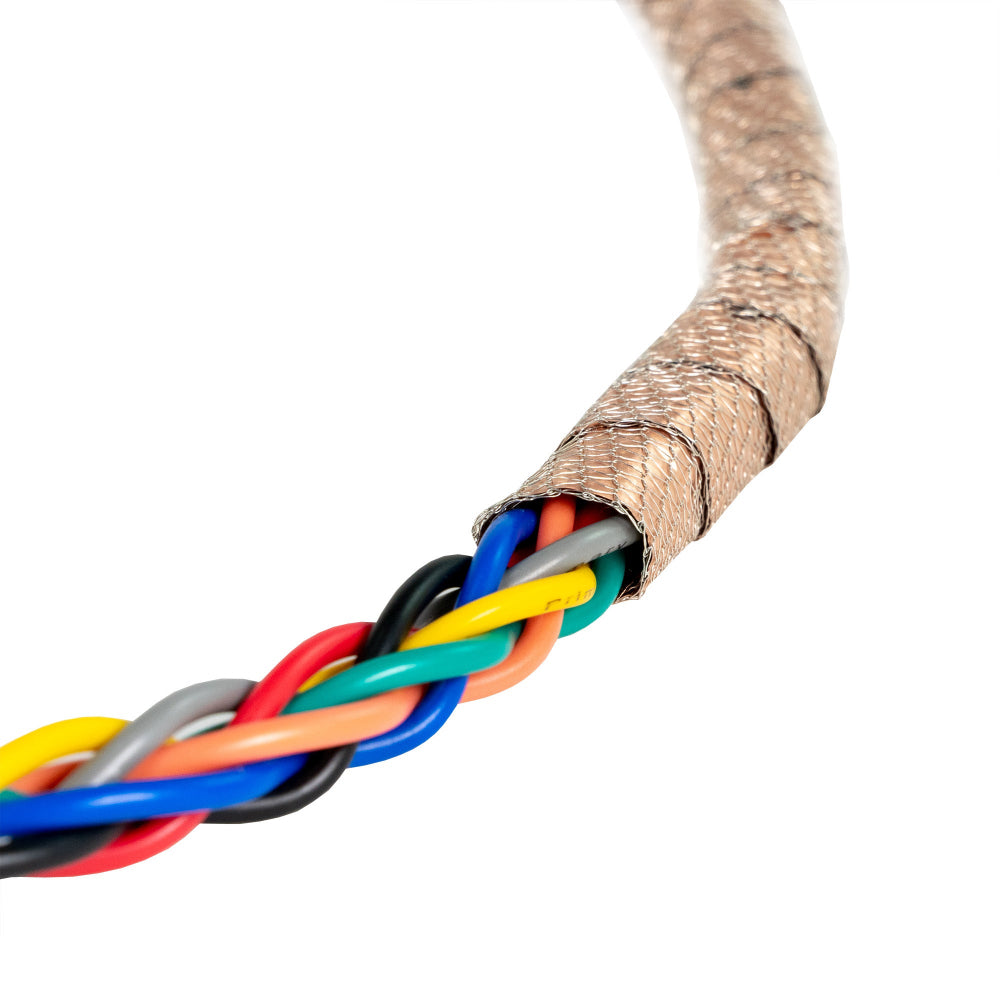

The tape is wrapped around cables, cable bundles, or branch connections with 50% overlap. The self-adhesive backing ensures secure positioning even under mechanical movement or vibration.

The temperature resistance ranges from −30 °C to +120 °C.
The tinned copper wire has a diameter of 0.15 mm.

ZIPMESH (CU) is RoHS-compliant.
A grounding tape is recommended for safe dissipation.

Available in rolls 25 mm (optionally 75 mm) wide and 5 m long.

Material Specification

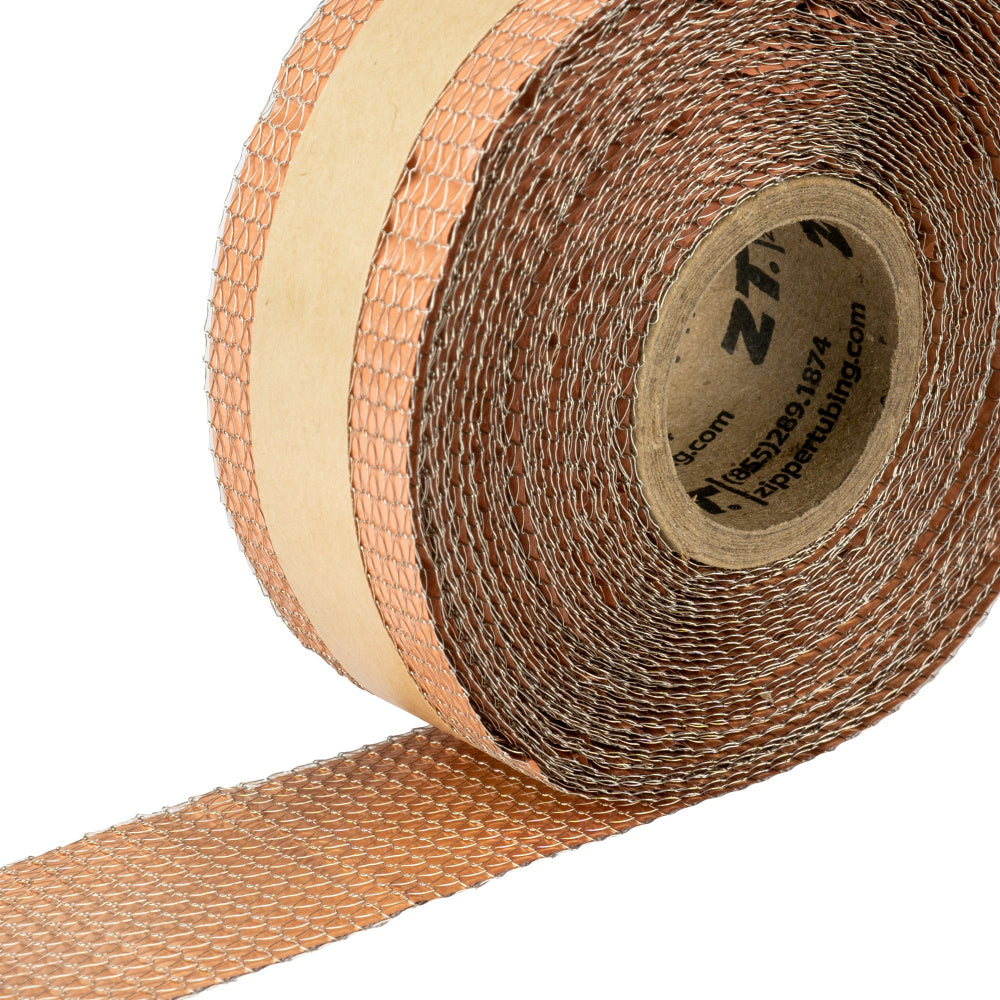

Zipmesh-CU_Rolle

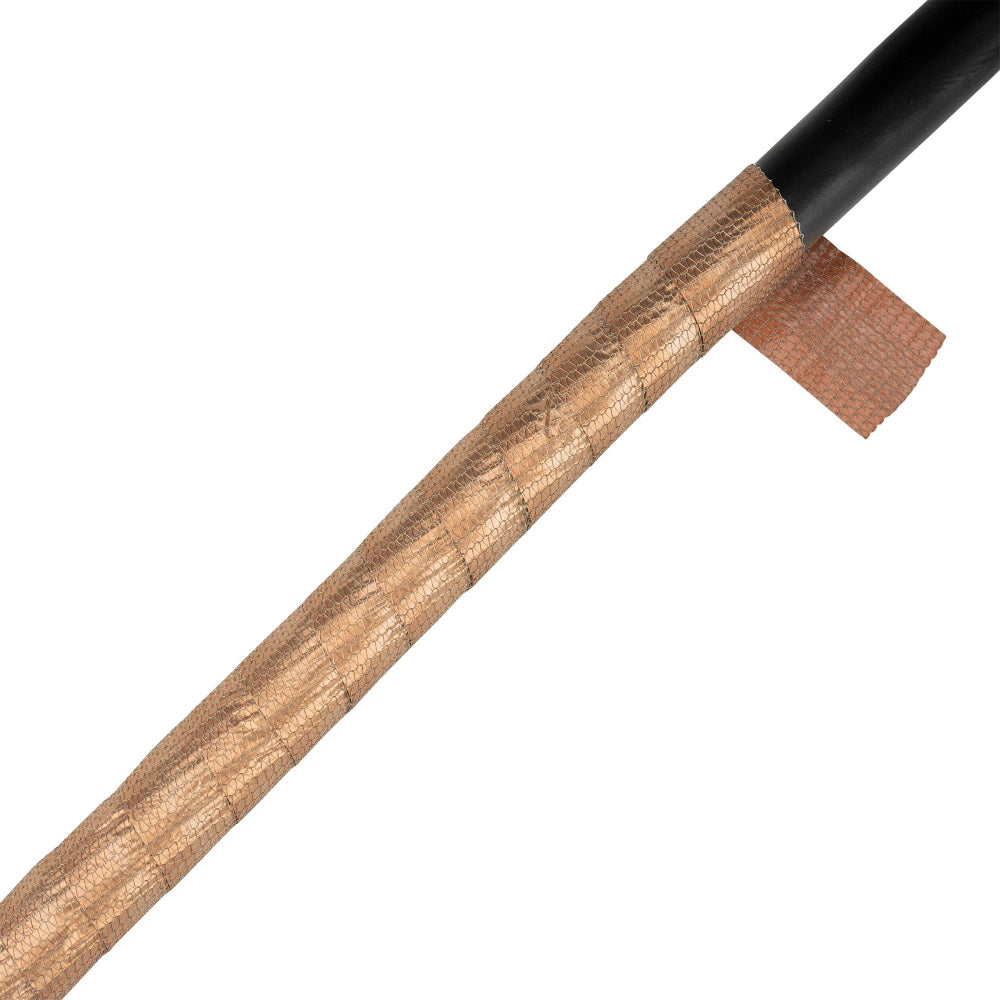

Zipmesh-CU_Offen

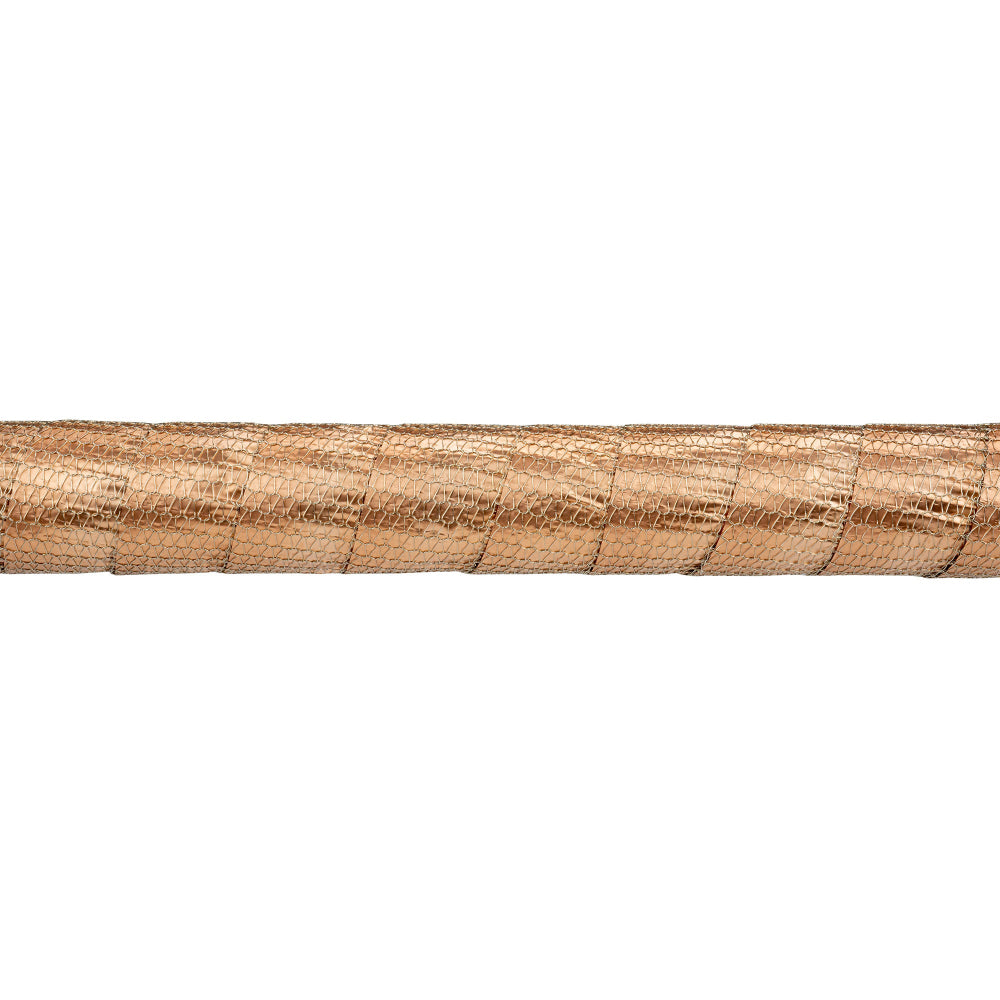

Zipmesh-CU_Detail

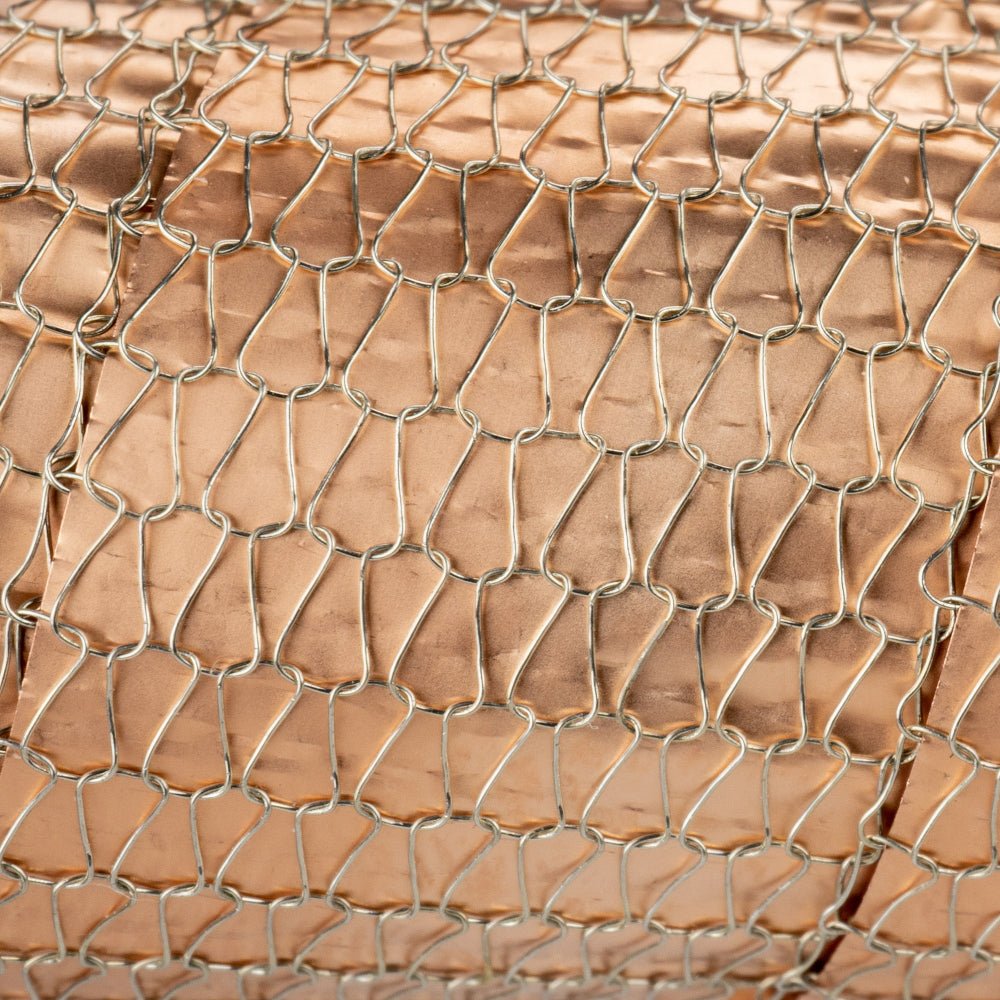

Zipmesh-CU_Detail_2

Advantages

  • RF shielding over a wide frequency range
  • Copper-based carrier film
  • Self-adhesive backing
  • Tinned copper wire, Ø 0.15 mm
  • Temperature range: −30 °C to +120 °C
  • RoHS-compliant

Application

  • EMC Shielding of Cable Systems
  • Additional Shielding Measures for EMC-Critical Areas
  • Wrapping of Cable Branches
  • Industrial Installations with Increased EMC Requirements
