ZTN-X-SH/CC-B, cable bundling with EMI shielding

Material Specification: 63 05,z 3250
Print Datasheet
View full details

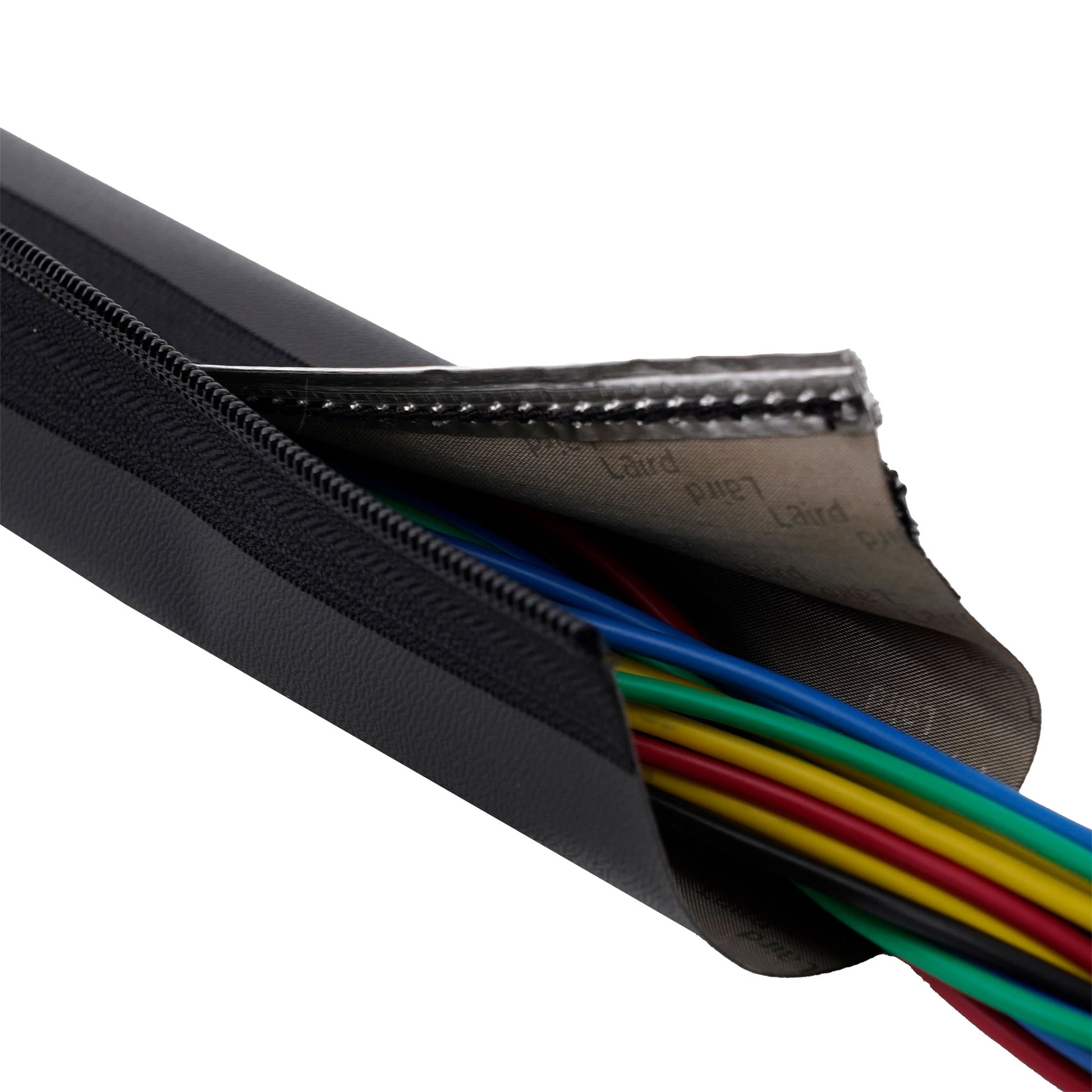

Lightweight RFI/EMI shielding jacket specifically designed for applications requiring high flexibility. The base material is PVC-GPs/63 with Ni/Cu polyester fabric and a continuous grounding wire. Suitable for continuous operating temperatures up to 105°C. Available in various diameters, with different carrier films, and with overlapping options. Typical applications include: automotive, transportation, robotics, energy, power and utilities, and defense technology.

The ZTN-SH/CC-B-OL is an extremely flexible EMC shield for reducing high-frequency electromagnetic interference in sensitive applications. It consists of a PVC-GPs/63 base material coated with a lightweight, conductive Ni/Cu polyester fabric. A continuous grounding wire ensures reliable EMC-compliant contact.

The casing offers high RFI/EMI attenuation in the frequency range of 100 kHz to 50 GHz, with attenuation values ​​between 55 and 89 dB. The construction is self-extinguishing, weatherproof, and designed for ambient temperatures from -40°C to +105°C.

The integrated zipper is made of robust polyester components and allows for easy and reusable installation – even when installed. Available in diameters from 20 to 100 mm; custom versions available upon request.

Advantages:

  • High EMC shielding performance (55–89 dB at 100 kHz – 50 GHz)
  • Lightweight Ni/Cu polyester fabric on a PVC backing
  • Continuous grounding wire for reliable contact
  • Temperature range -40°C to +105°C
  • Self-extinguishing and weather-resistant
  • Zipper for easy and reusable assembly
  • Standard diameter 20–100 mm, customizable to customer specifications

Areas of application:

  • EMC-compliant control cabinet construction
  • Cable protection in control systems
  • Cabling in high-frequency environments
  • Automation and plant engineering
  • Retrofit EMI shielding solutions

Material Specification
