ZTDr-x-ISOSAM 300/2.5, heat-protected bundling

Aluminium-laminated glass fabric with 2.5 mm felt and snap fastener for releasable thermal shielding of cable bundles.

Material Specification: isosam 300 2 5

Select Product Options

Part Number:

Print Datasheet
View full details

Overview

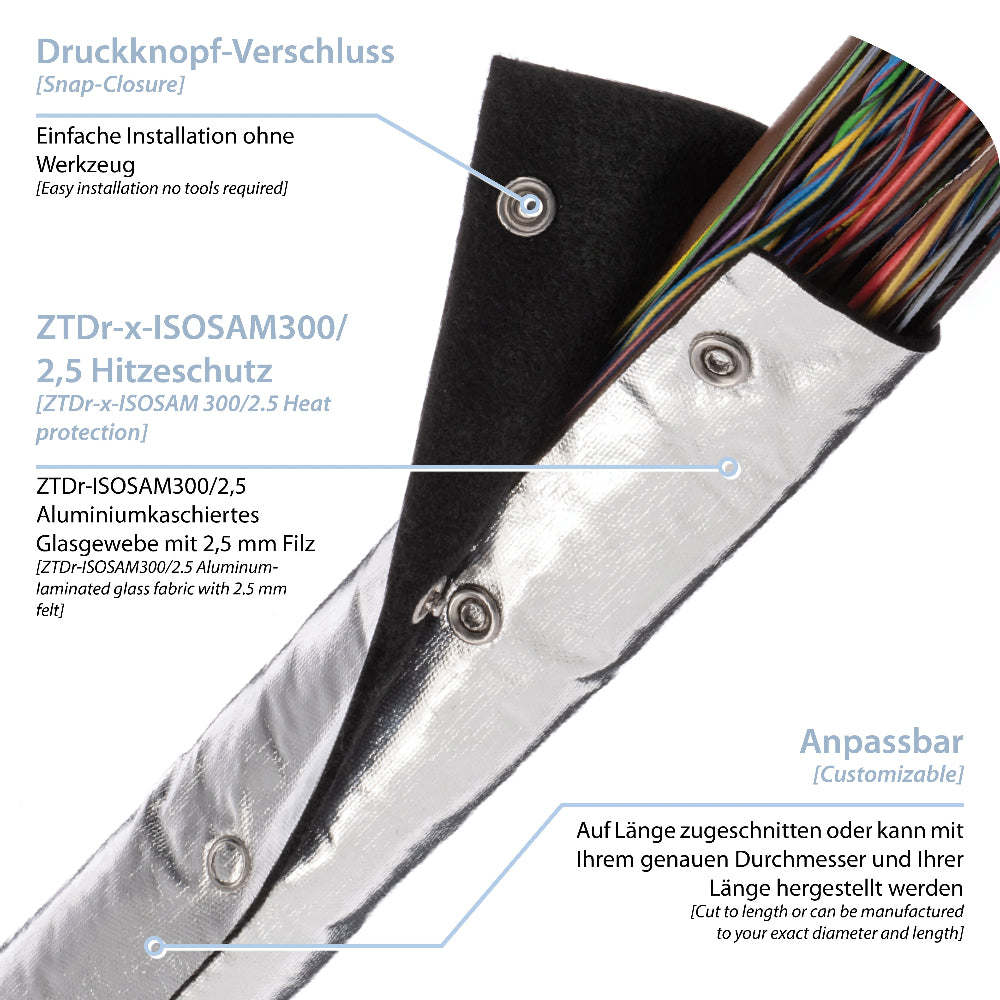

ZTDr-x-ISOSAM300_2_5_Info
Advantages
  • High-quality heat protection and cable protection up to 230°C
  • Resealable design for maximum flexibility
  • Easy assembly and simple handling
Application
  • Automotive industry (engine compartment, wiring harnesses, cable ducts)
  • Transport sector (rail vehicles, commercial vehicles, aviation)
  • Mechanical engineering and industrial applications
  • Protection of electrical cables in high-temperature environments

Aluminum foil laminated with special HT adhesive onto E-glass fabric, bonded to a 2.5 mm thick felt made of 100% Preox fibers. Continuous operating temperature up to max. 230°C. Available in various diameters and with different closure systems.
Typical areas of application: automotive, transportation.

The ZTDr-X-ISOSAM 300/2.5 is a high-performance, openable and resealable heat shield for cable bundling with a snap fastener. The combination of aluminum foil with special HT adhesive on E-glass fabric and a 2.5 mm thick felt made of 100% Preox fibers ensures optimal heat and cable protection. With a continuous operating temperature of up to 230°C, this shield is particularly suitable for demanding applications.

The stainless steel snap fasteners allow for quick installation and easy access to the internal components. The space between the snap fasteners allows wires and cables to be routed without cutting the protective sheathing. The material can be cut to any desired length if needed. For applications requiring fast, tool-free installation without disassembling components, the ZTDr-X-ISOSAM 300/2.5 is the perfect solution.

We offer the product in diameters from 10 to 100 mm; custom designs are available upon request. The operating temperature range of the ZTDr-X-ISOSAM 300/2.5 is -40°C to 230°C and up to 240°C for short periods.

Material Specification

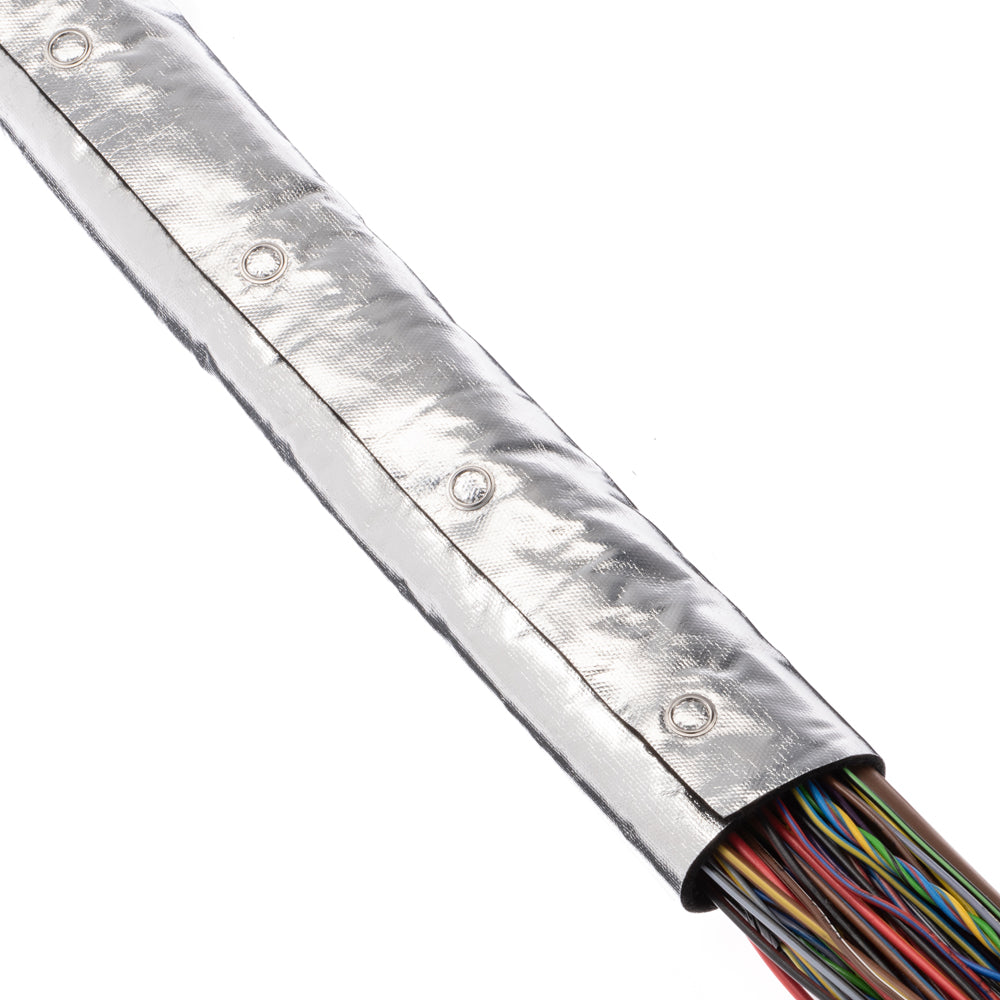

ZTDr-x-ISOSAM_300_2.5_Ansicht_1

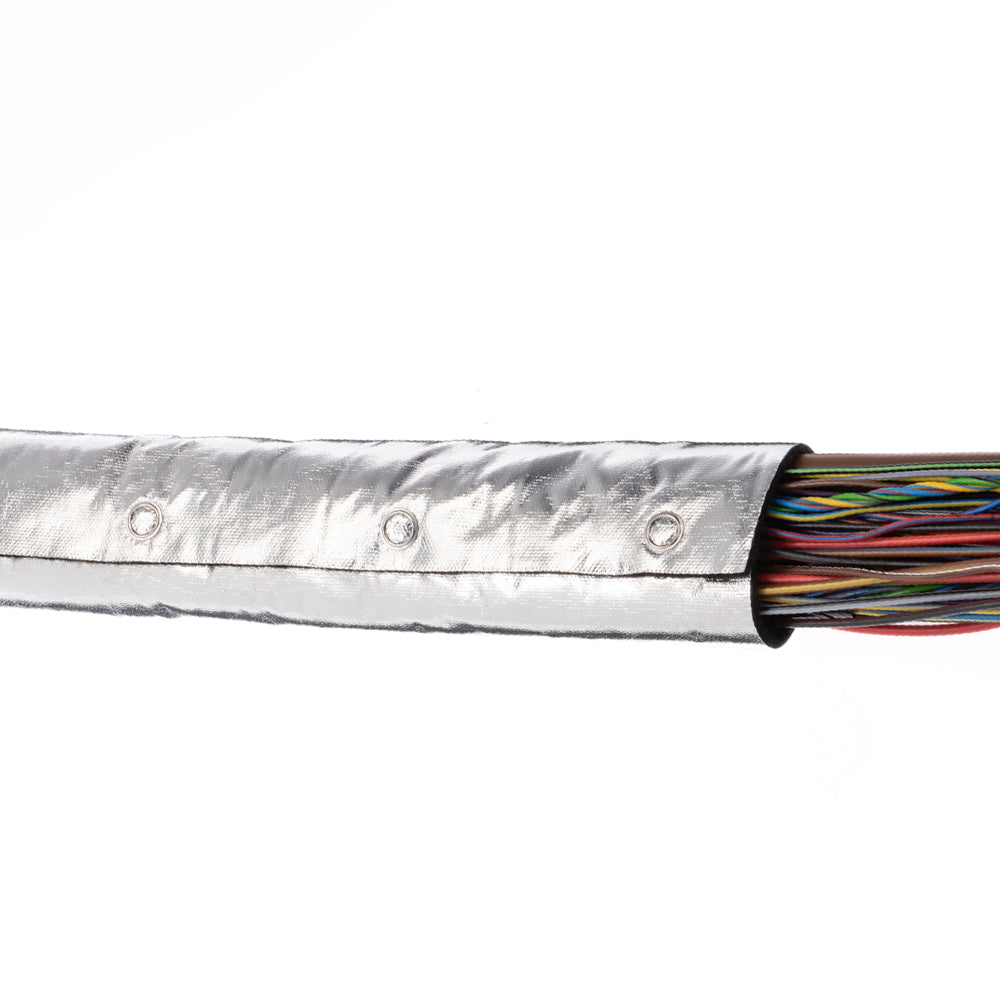

ZTDr-x-ISOSAM_300_2.5_Ansicht_2

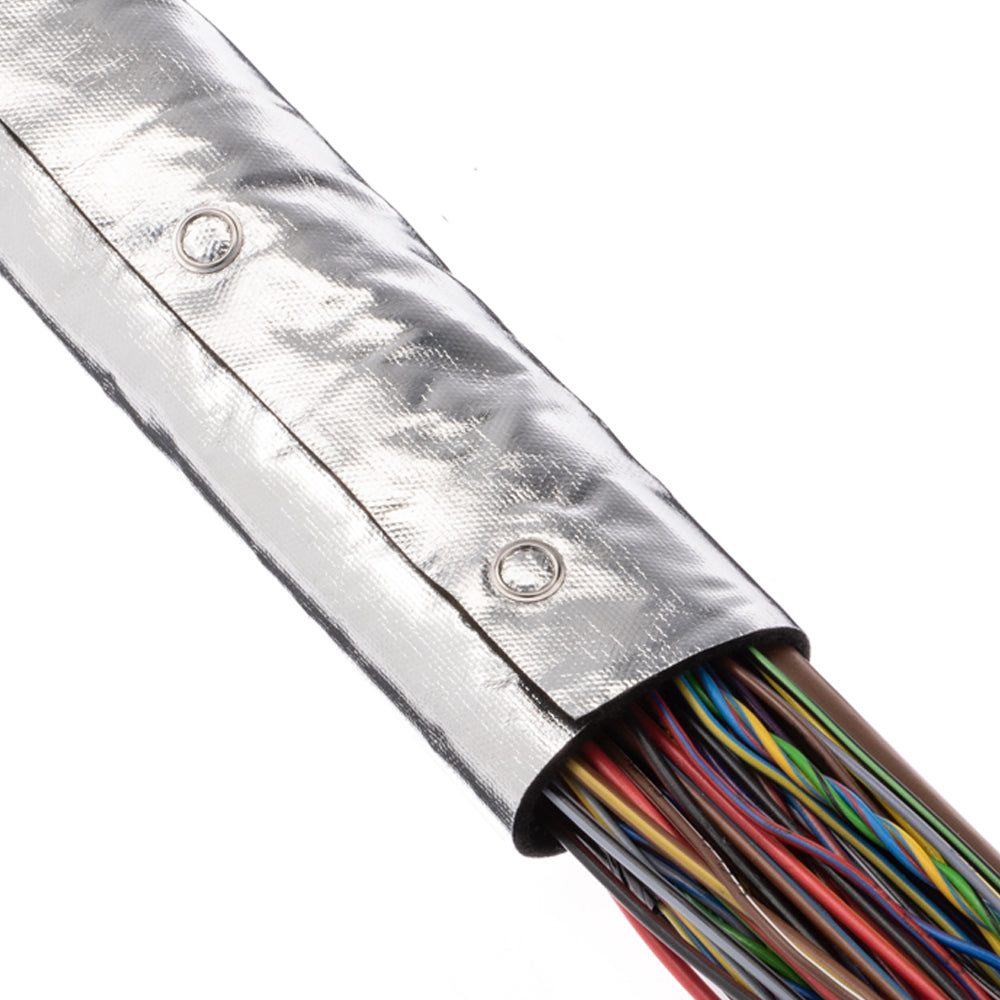

ZTDr-x-ISOSAM_300_2.5_Detail_1

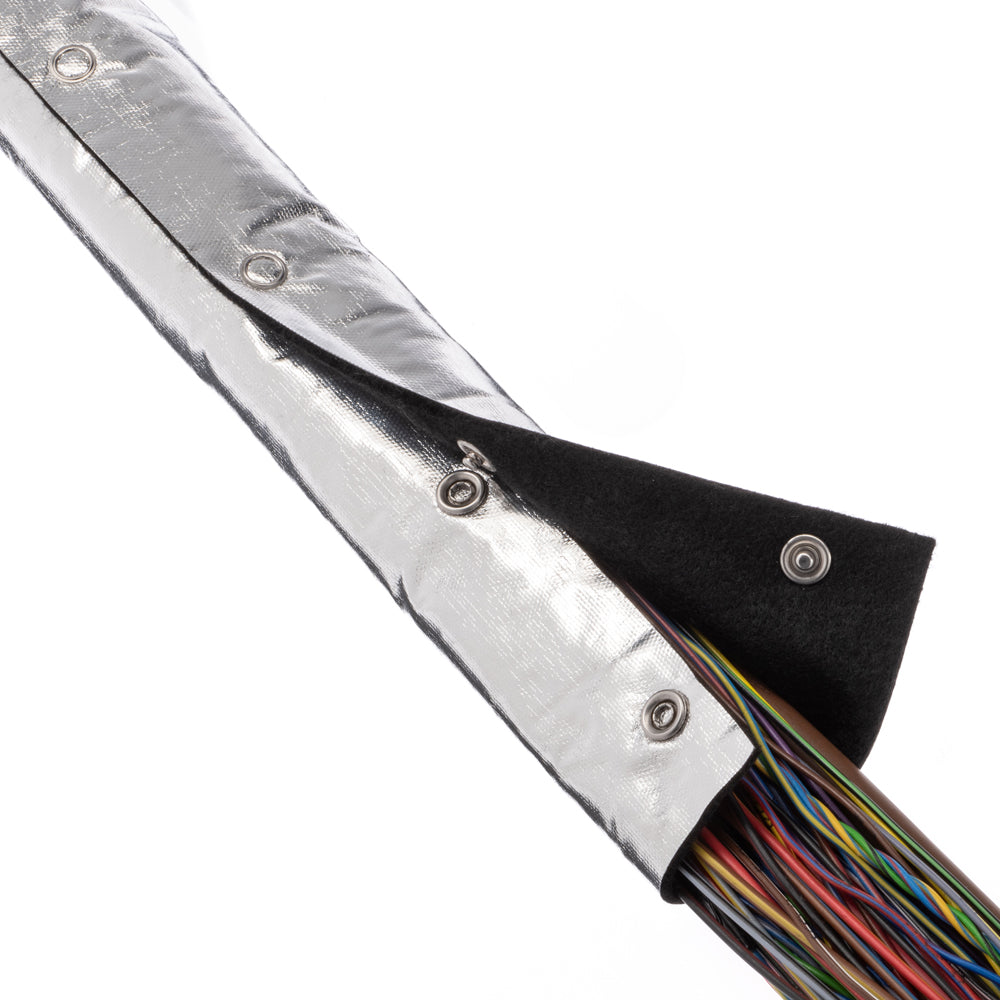

ZTDr-x-ISOSAM_300_2_5_Ansicht_3

Advantages

  • High-quality heat protection and cable protection up to 230°C
  • Resealable design for maximum flexibility
  • Easy assembly and simple handling

Application

  • Automotive industry (engine compartment, wiring harnesses, cable ducts)
  • Transport sector (rail vehicles, commercial vehicles, aviation)
  • Mechanical engineering and industrial applications
  • Protection of electrical cables in high-temperature environments
