ZTDr-x-SAM-400, Heat-shielded cable bundling

Aluminum foil on glass fabric with snap fastener system for detachable thermal cable bundling.

Material Specification: sam 400

Select Product Options

Part Number:

Print Datasheet
View full details

Overview

Aluminum foil laminated with ZT Flex-HT 260 silicone adhesive onto E-glass fabric, grey backing. Continuous operating temperature up to max. 250°C. Available in various diameters and with different closure systems. Typical applications: automotive, transportation.

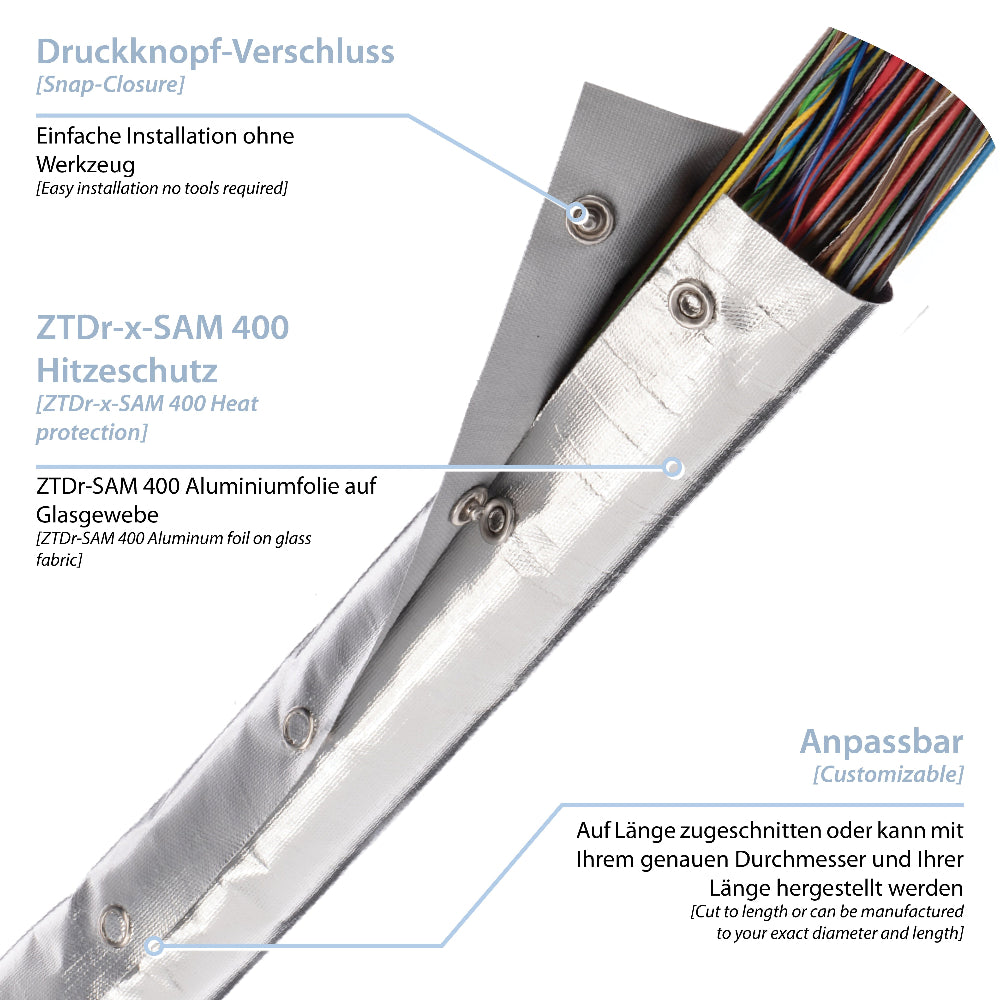

The ZTDr-X-SAM 400 offers a reliable solution for heat and cable protection in thermally demanding applications. It consists of an aluminum foil laminated to an E-glass fabric using ZT Flex-HT 260 silicone adhesive. The gray-coated backing provides additional durability. Thanks to the stainless steel snap fasteners, the protective sleeve can be installed without tools and easily cut to size – ideal for retrofitting existing systems.

The material offers continuous temperature resistance up to 250°C and can even withstand 270°C for short periods. The defined operating temperature range is from -50°C to 250°C. In addition to its thermal insulation, the ZTDr-X-SAM 400 boasts high abrasion resistance and resistance to industrial media. The protective conduit is available in diameters from 16 to 100 mm; custom shapes and customer-specific versions are also available upon request.

Material Specification

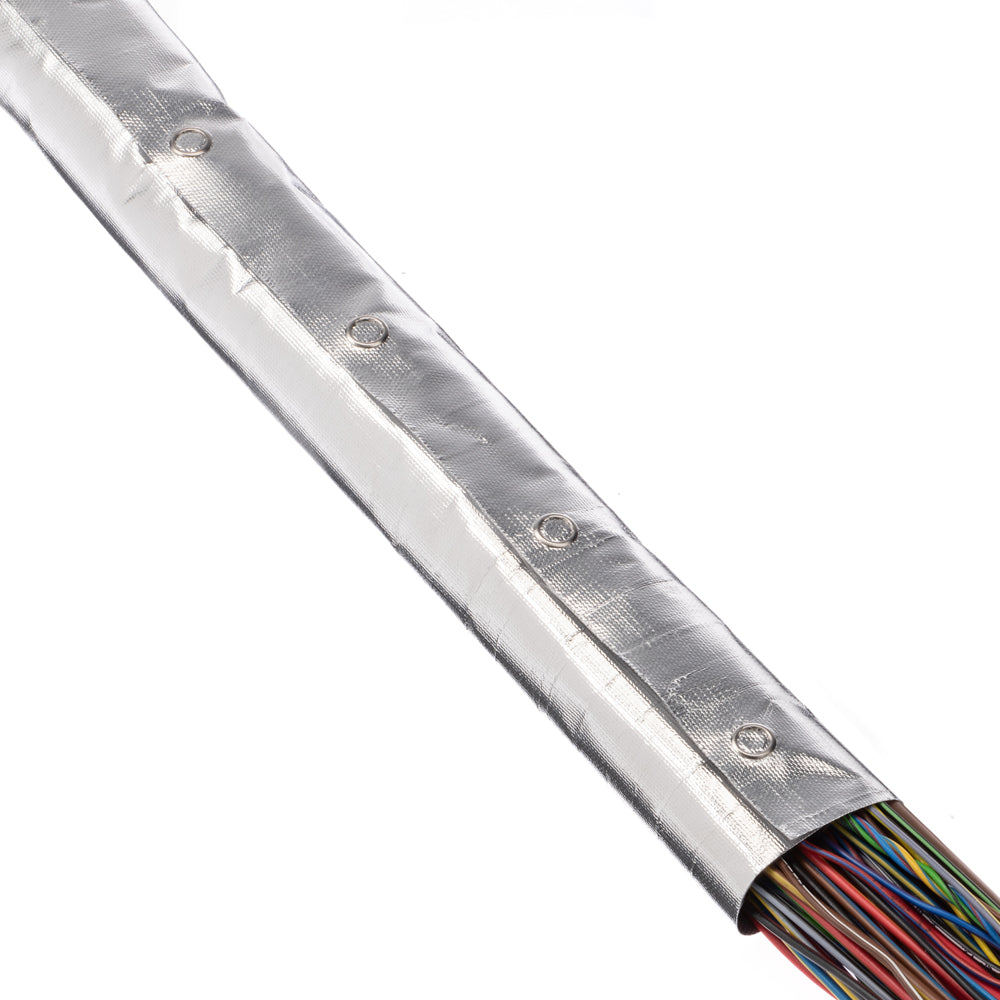

ZTDr-x-SAM_400_Ansicht_1

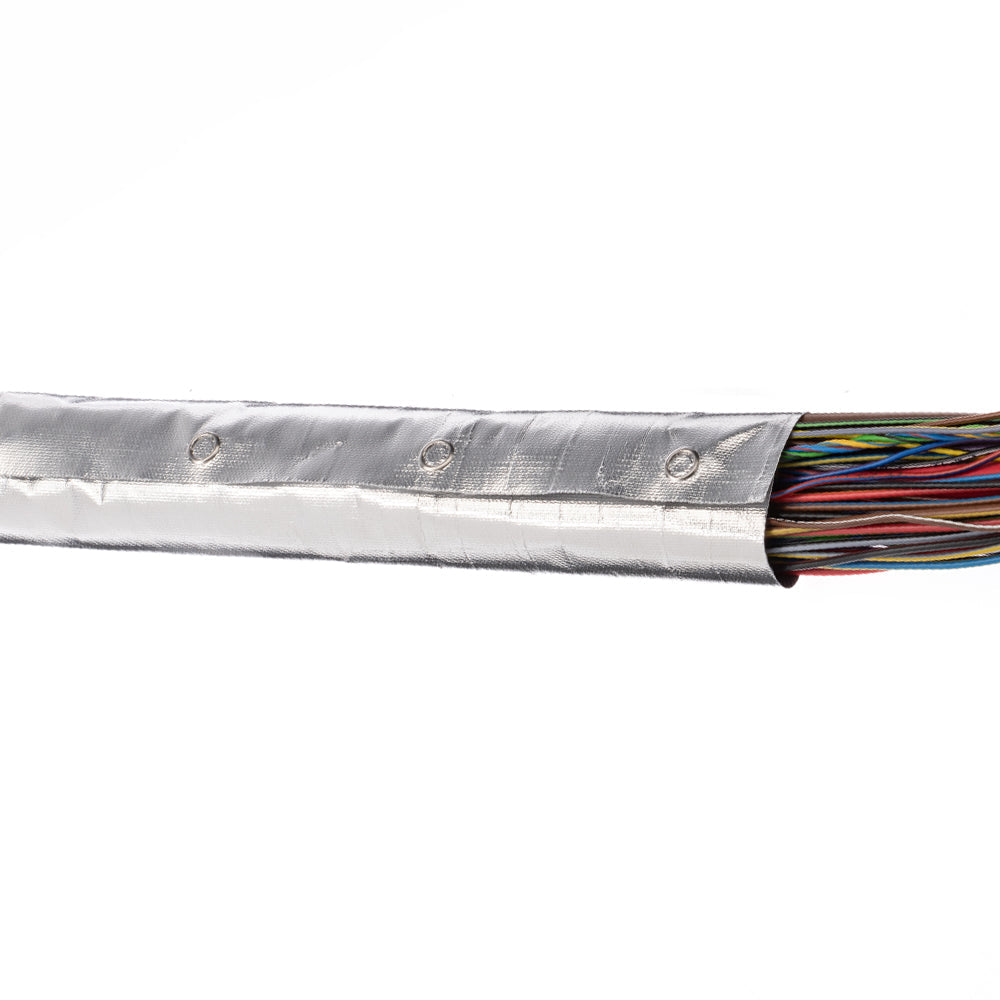

ZTDr-x-SAM_400_Ansicht_2

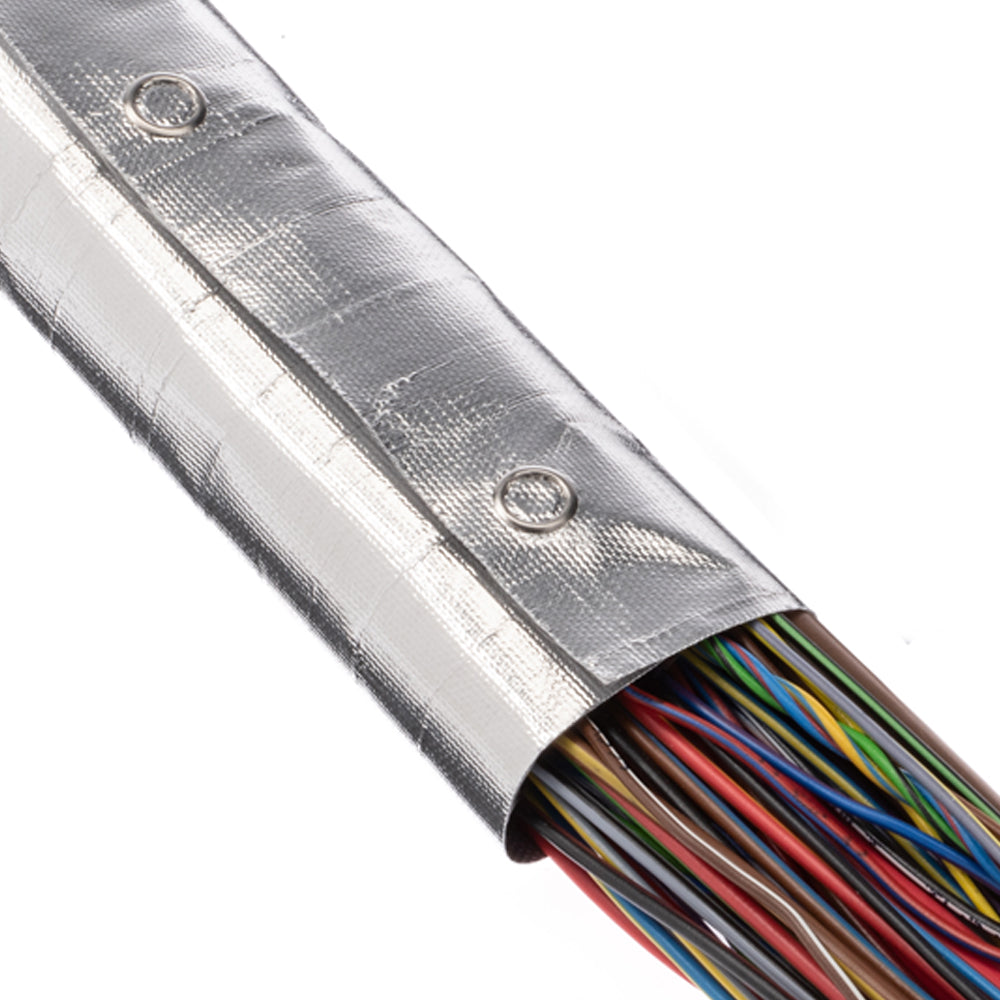

ZTDr-x-SAM_400_Detail_1

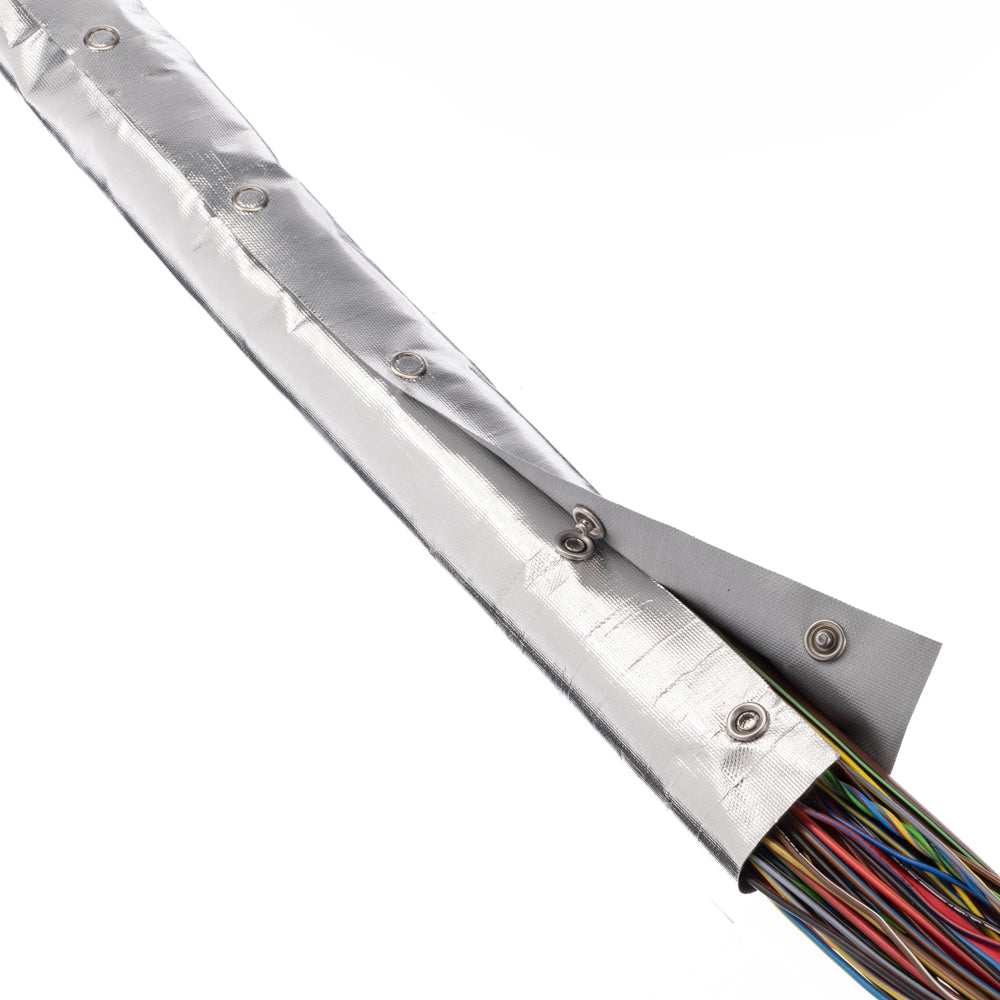

ZTDr-x-SAM_400_Ansicht_3

Advantages

  • High-quality heat protection and reliable cable protection up to 250°C (briefly up to 270°C)
  • Reusable, lockable design for flexible use
  • Tool-free assembly using stainless steel snap fasteners
  • Individual length adjustment possible

Application

  • Automotive and commercial vehicle industry
  • Mechanical and plant engineering
  • Electrical and cable protection solutions
