ZTDr-x-ZETREFLECTFELT® 3.0, cable bundling

Aluminium-laminated glass fabric with PSA felt and snap fastener for combined reflection and insulation of cable bundles.

Material Specification: zetreflectfelt 3

Part Number: auf Anfrage / on request

Select Product Options

Print Datasheet
View full details

Overview

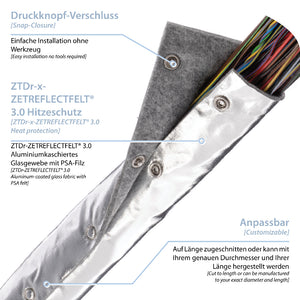

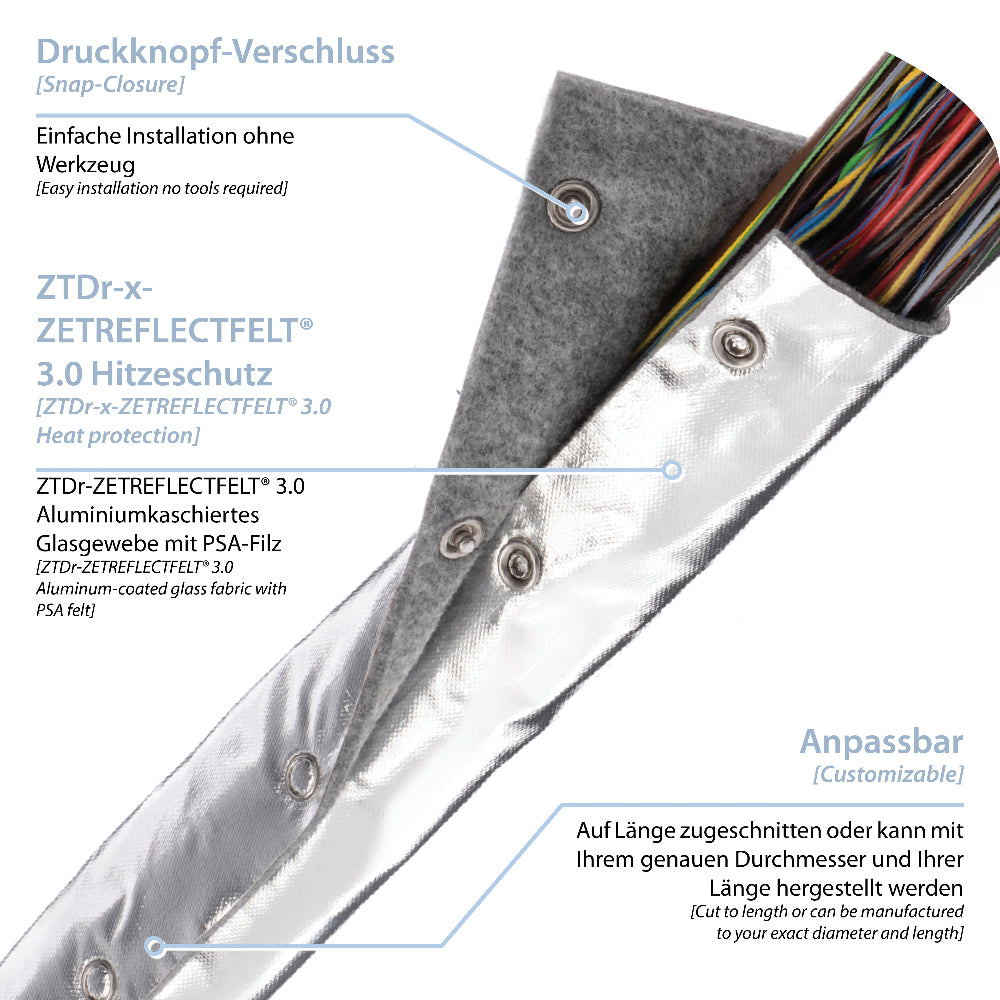

ZTDr-x-ZETREFLECTFELT_Info
Advantages
  • High-quality heat protection and reliable cable sheathing up to 270°C (briefly up to 300°C)
  • Reusable, lockable design for flexible use
  • Tool-free assembly using stainless steel snap fasteners
  • Individual length adjustment possible
Application
  • Automotive and commercial vehicle industry
  • Mechanical and plant engineering
  • Electrical and cable protection solutions

Aluminum foil laminated with ZT Flex-HT 260 silicone adhesive onto E-glass fabric, bonded on the back with 2.8 mm thick felt made of PSA fibers. Continuous operating temperature up to max. 270°C. Available in various diameters and with different closure systems. Typical applications: automotive, transportation.

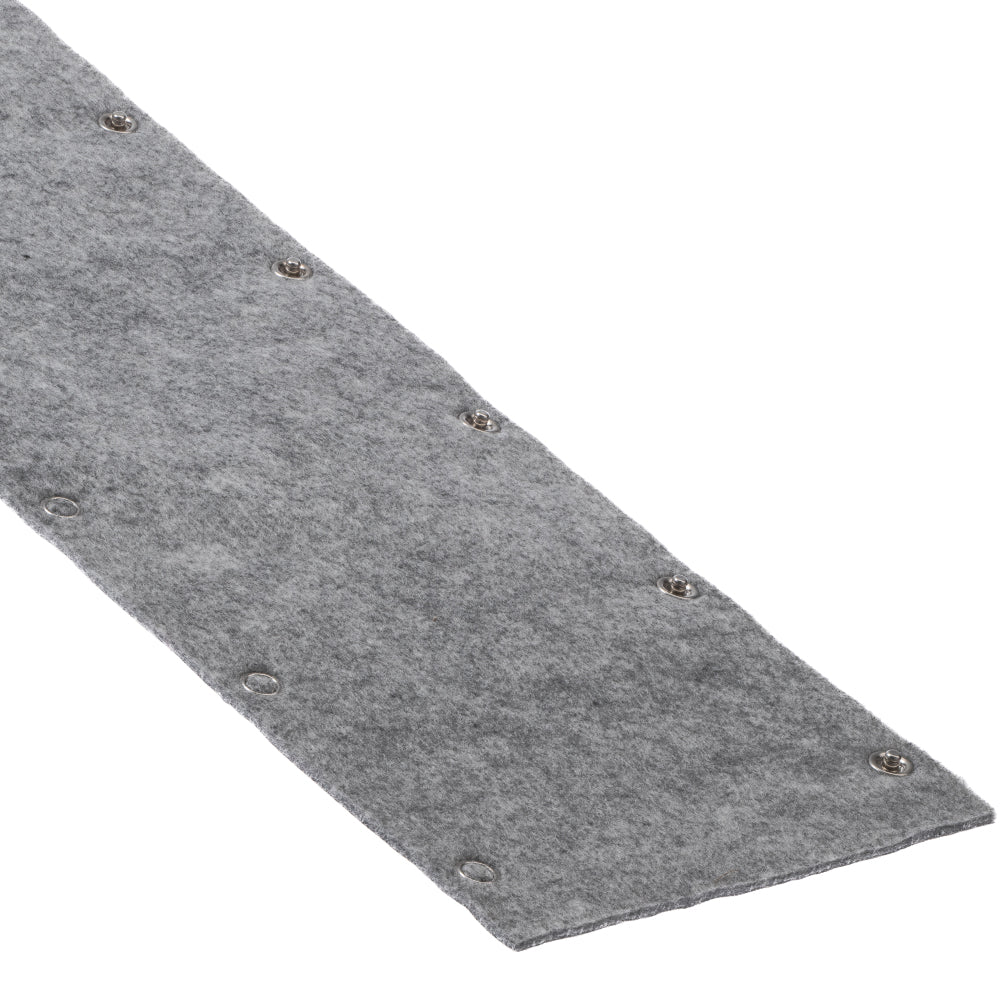

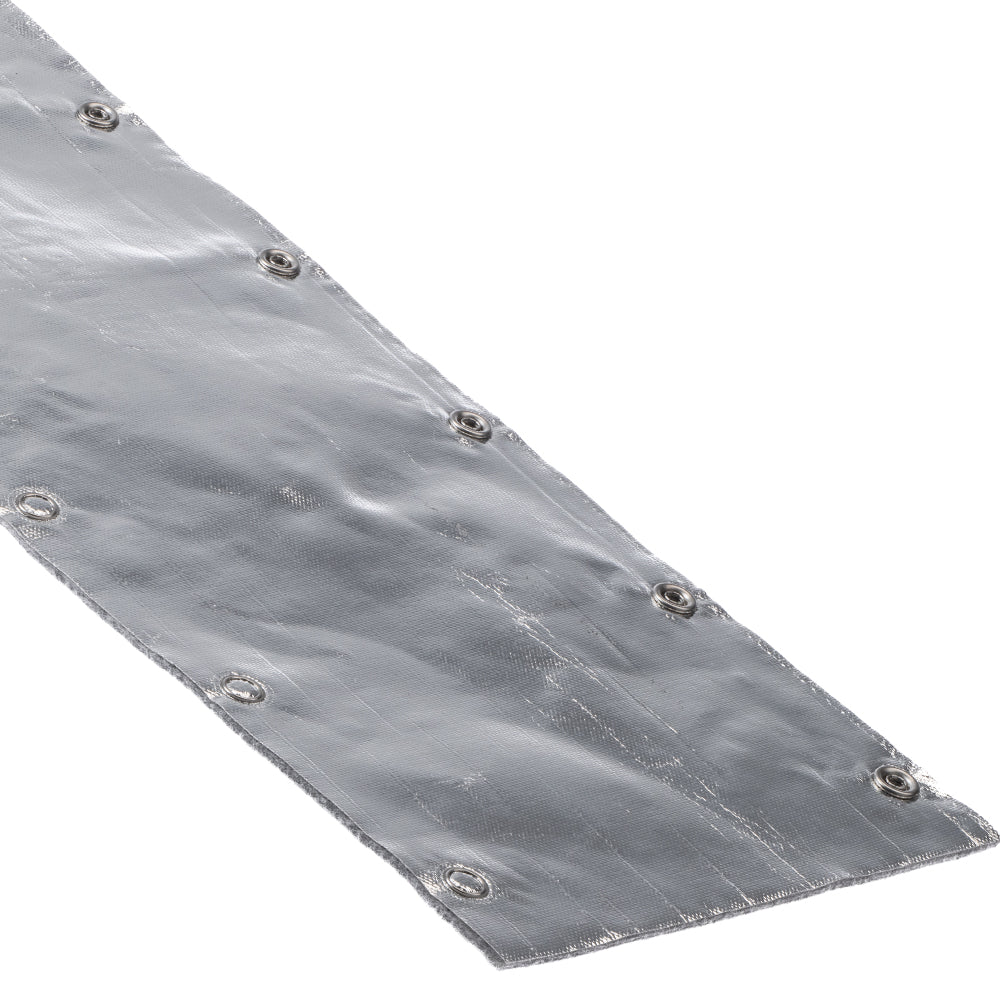

The ZTDr-X-ZETREFLECTFELT® 3.0 offers an effective heat protection and cable sheathing solution for thermally stressed cables and wires. The material consists of an aluminum foil laminated to E-glass fabric with ZT Flex-HT 260 silicone adhesive. The back is bonded with a 2.8 mm thick felt made of PSA fibers, providing additional thermal insulation and mechanical protection.

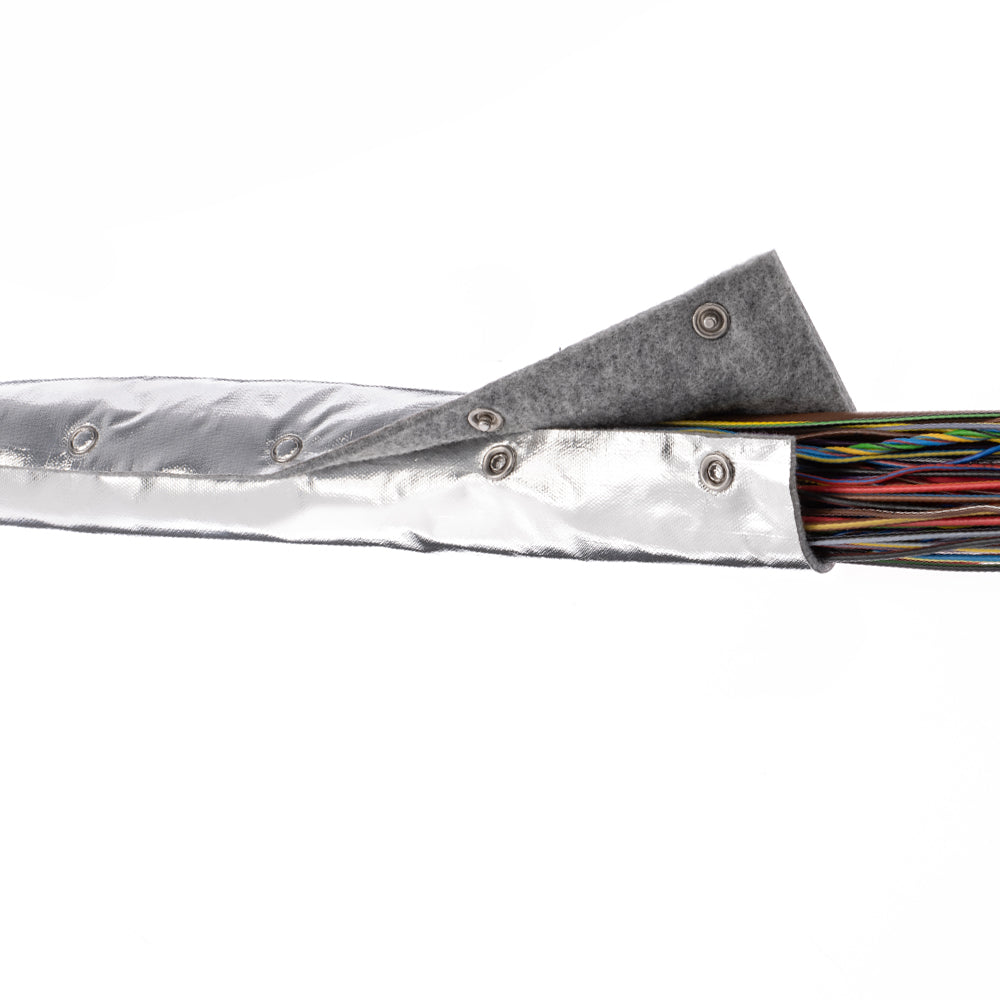

For easy handling and quick installation, the ZTDr-X-ZETREFLECTFELT® 3.0 is equipped with rustproof stainless steel snap fasteners. These enable tool-free installation, provide quick access to protected cables and wires, and allow individual cables to be routed without cutting the sheathing. The material can also be flexibly cut to the desired length.

With a continuous heat resistance of up to 270°C (briefly up to 300°C), ZTDr-X-ZETREFLECTFELT® 3.0 is ideally suited for protecting cables and electrical components in heat-stressed environments. This product is an optimal solution, especially for applications requiring easy retrofitting – without tools or time-consuming disassembly of existing systems. Furthermore, the material is self-extinguishing and resistant to all common operating fluids.

The ZTDr-X-ZETREFLECTFELT® 3.0 is available in diameters from 20 mm to 100 mm. Custom designs are available upon request. The operating temperature range extends from -50°C to 270°C, with short-term heat resistance up to 300°C.



Material Specification

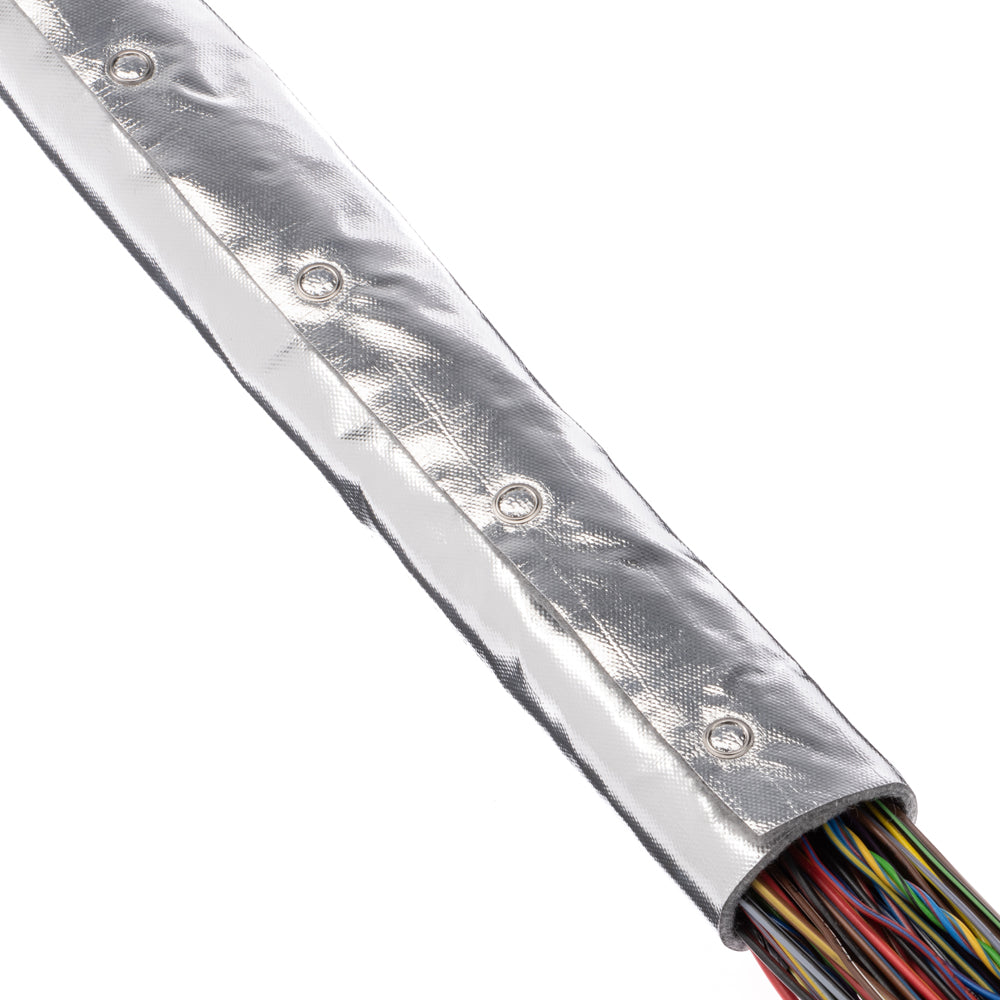

ZTDr-x-ZETREFLECTFELT_Ansicht_1

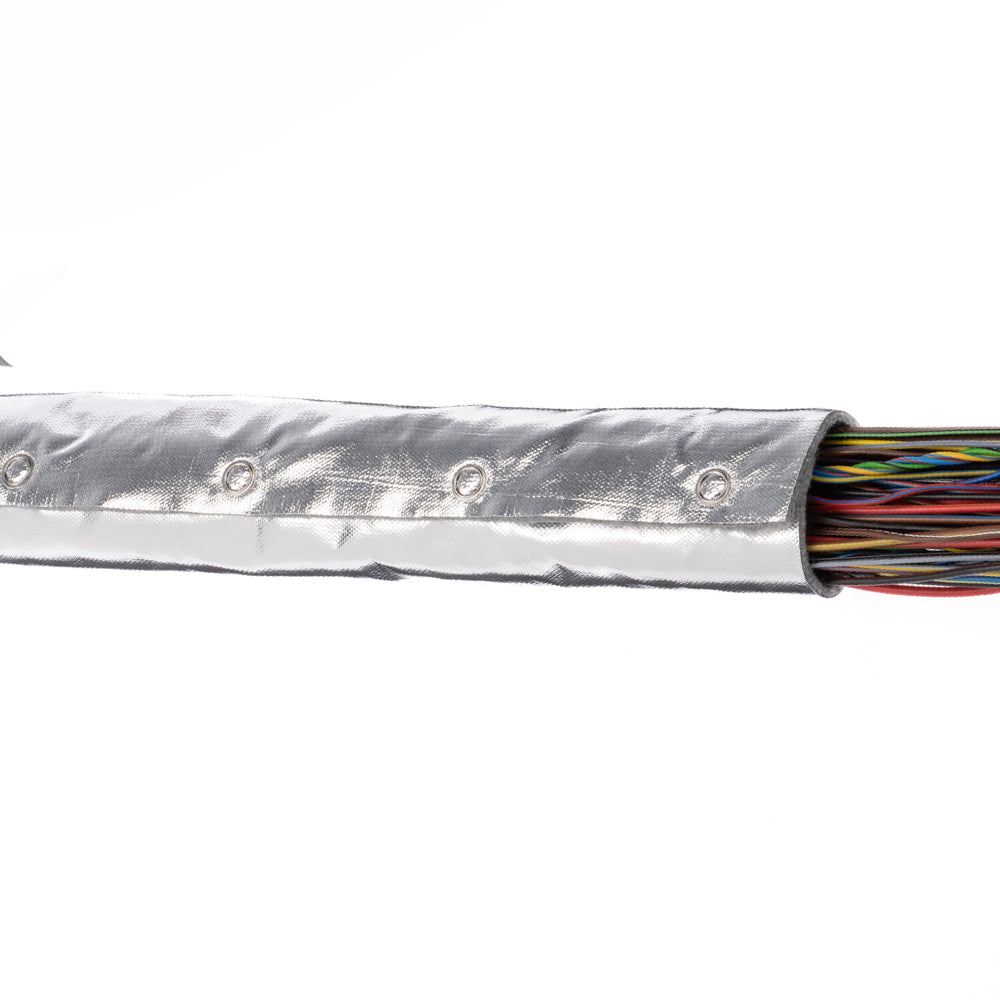

ZTDr-x-ZETREFLECTFELT_Ansicht_2

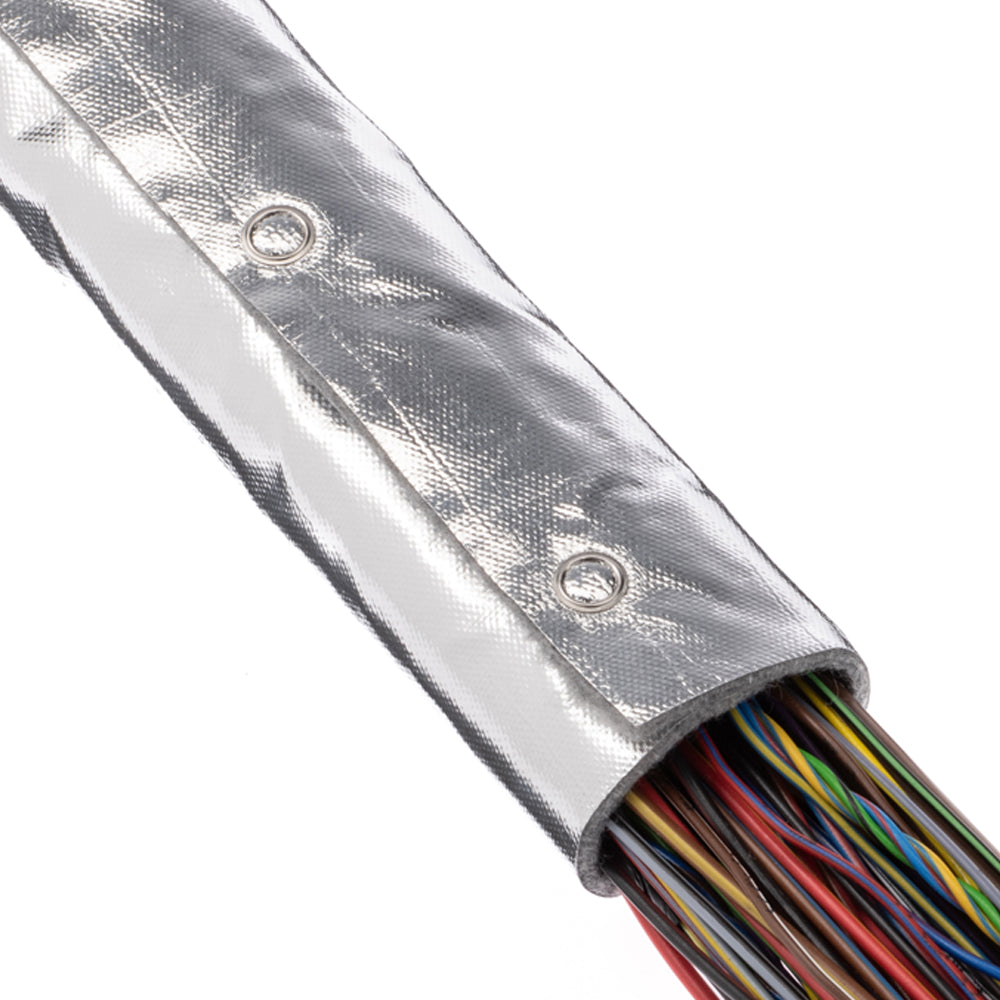

ZTDr-x-ZETREFLECTFELT_Detail_1

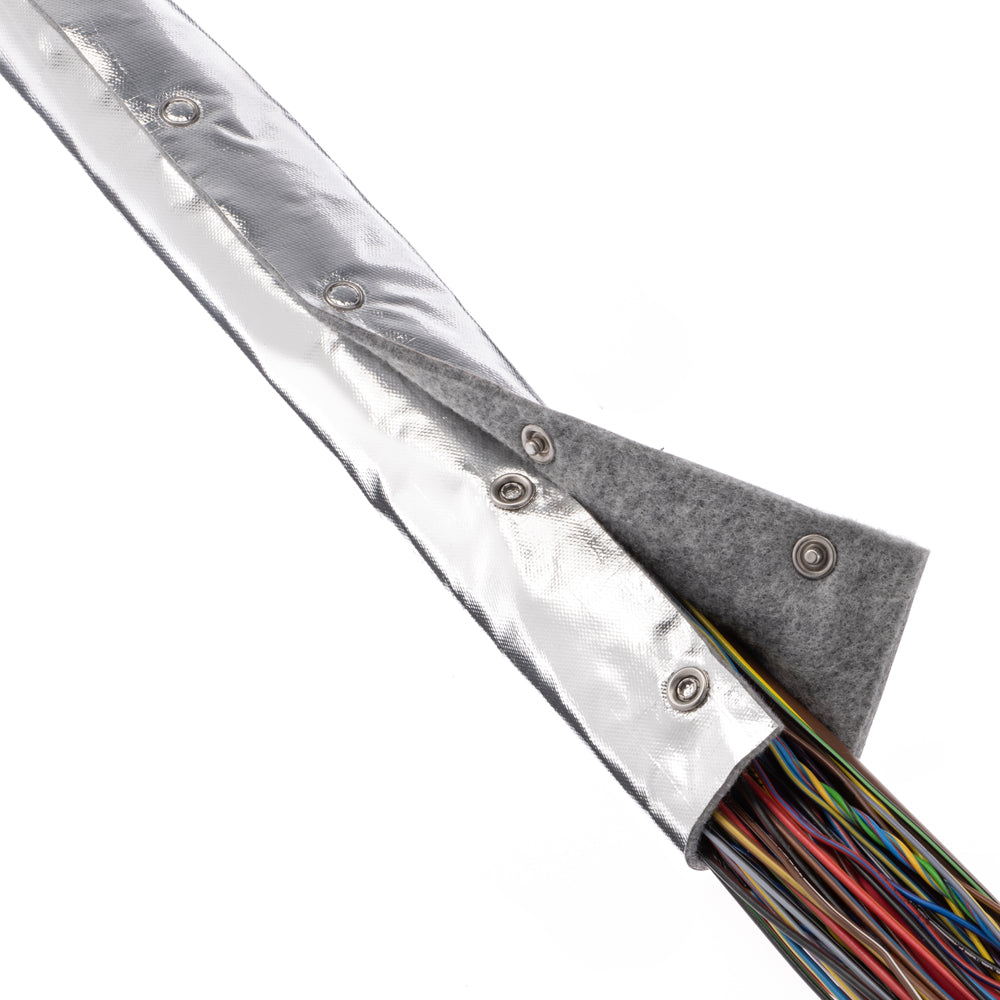

ZTDr-x-ZETREFLECTFELT_Ansicht_3

Advantages

  • High-quality heat protection and reliable cable sheathing up to 270°C (briefly up to 300°C)
  • Reusable, lockable design for flexible use
  • Tool-free assembly using stainless steel snap fasteners
  • Individual length adjustment possible

Application

  • Automotive and commercial vehicle industry
  • Mechanical and plant engineering
  • Electrical and cable protection solutions
