ZTZ-X-SH/CC-B, cable bundling with EMI shielding

Ni/Cu polyester fabric on a PVC base with Z-track closure for retrofittable EMC shielding of flexible cable bundles.

Material Specification: GPS 63,CC

Part Number: 0252

Select Product Options

Print Datasheet
View full details

Overview

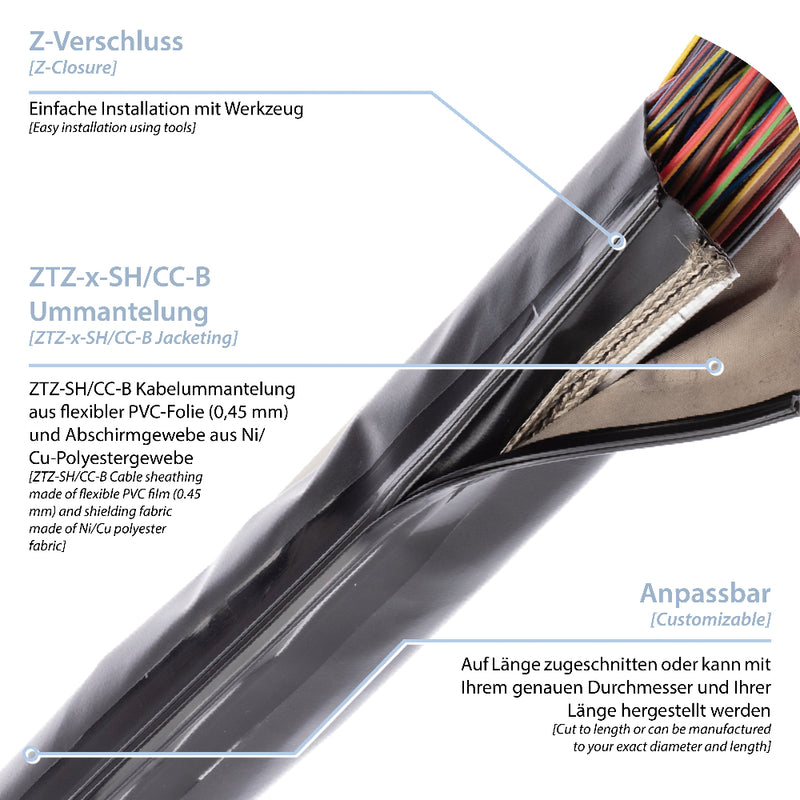

ZTZ-x-SH-CC-B_Info
Advantages
  • High EMC shielding performance (55–89 dB at 100 kHz – 50 GHz)
  • Lightweight Ni/Cu polyester fabric on a PVC backing
  • Continuous grounding wire for reliable contact
  • Temperature range -40°C to +105°C
  • Self-extinguishing and weather-resistant
  • Zipper for easy and reusable assembly
  • Standard diameter 20–100 mm, customizable to customer specifications
Application
  • EMC-compliant control cabinet construction
  • Cable protection in control systems
  • Cabling in high-frequency environments
  • Automation and plant engineering
  • Retrofit EMI shielding solutions

Lightweight RFI/EMI shielding sheathing specifically designed for applications requiring high flexibility. The base material is PVC-GPs/63 with Ni/Cu polyester fabric and continuous grounding braid, continuous operating temperature up to max. 105°C. Available in various diameters, with different carrier films, and also with overlap. Typical areas of application: automotive, transportation, robotics, energy, power and utilities, defense technology.

ZTZ-SH/CC-B-OL is an extremely flexible EMC shielding for reducing high-frequency electromagnetic interference in sensitive applications. It consists of a PVC-GPs/63 base material coated with a lightweight, conductive Ni/Cu polyester fabric. A continuous grounding braid ensures reliable EMC-compliant contact.

The sheathing offers high RFI/EMI attenuation in the frequency range from 100 kHz to 50 GHz with attenuation values between 55 and 89 dB. The design is self-extinguishing, weather-resistant, and rated for ambient temperatures from –40°C to +105°C.

The integrated zipper is made of robust polyester components and allows for easy and reusable installation – even when installed. Available in diameters from 20 to 100 mm; custom variants available on request.



Material Specification

ZTZ-x-SH-CC-B_Ansicht_3
ZTZ-x-SH-CC-B_Ansicht_4
ZTZ-x-SH-CC-B_Ansicht_1
ZTZ-x-SH-CC-B_Ansicht_2

Advantages

  • High EMC shielding performance (55–89 dB at 100 kHz – 50 GHz)
  • Lightweight Ni/Cu polyester fabric on a PVC backing
  • Continuous grounding wire for reliable contact
  • Temperature range -40°C to +105°C
  • Self-extinguishing and weather-resistant
  • Zipper for easy and reusable assembly
  • Standard diameter 20–100 mm, customizable to customer specifications

Application

  • EMC-compliant control cabinet construction
  • Cable protection in control systems
  • Cabling in high-frequency environments
  • Automation and plant engineering
  • Retrofit EMI shielding solutions

zipper-technik.com | +49 (0) 61 02 – 73 87-0

ZTZ-X-SH/CC-B, cable bundling with EMI shielding

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
