ZTZ-x-SHX 2/GP-05-B, cable bundling with EMI shielding

2-layer tinned copper wire strand on PVC-GP-05 with Z-lock for tool-assisted EMC cable bundling.

Material Specification: GPS, SHX 2

Part Number: 0198

Select Product Options

Print Datasheet
View full details

Overview

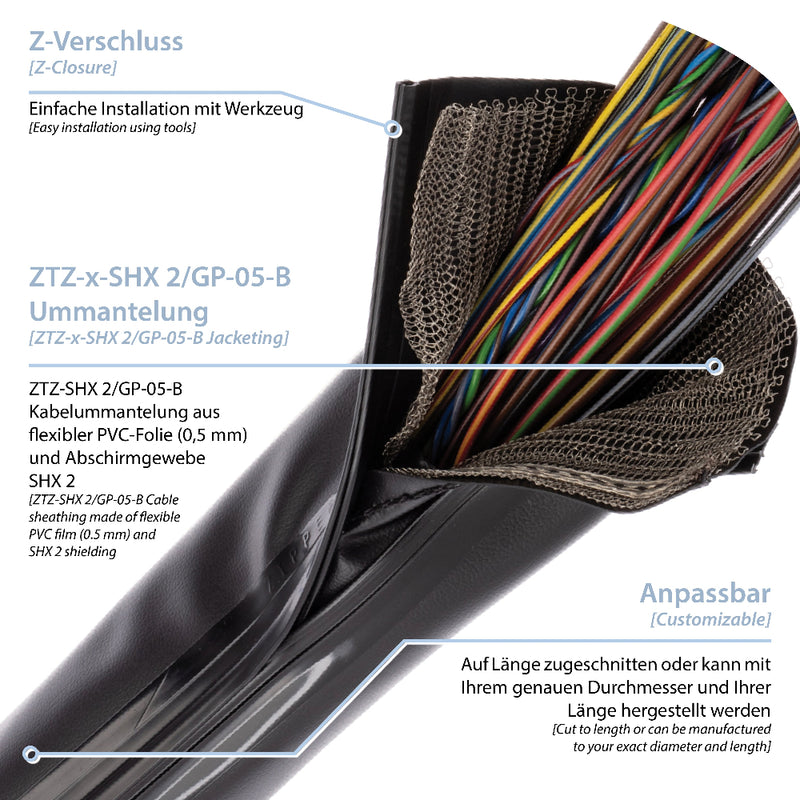

ZTZ-x-SHX2-GP-05-B_Info
Advantages
  • Two-layer copper braid with continuous EMC grounding wire
  • High shielding attenuation (40–80 dB at 100 kHz–1 GHz)
  • GP-05 sheathing: PVC, self-extinguishing, cadmium-free
  • Extruded Z-lock for permanent fixation
  • Temperature range -40°C to +105°C
  • Resistant to UV, ozone, liquids and abrasion
  • Available in Ø 20–100 mm, special lengths on request
Application
  • EMC-protected installations in machines and systems
  • Permanently installed power and signal cables in production environments
  • Control cabinet construction with shielded segments
  • Infrastructure systems with permanent protection requirements
  • arms industry
  • Building and energy technology

RF shielding made of two layers of tinned copper wire mesh and a continuous grounding wire. Soft PVC film, 0.5 mm thick, self-extinguishing, cadmium-free, continuous operating temperature up to 105°C. Available in various diameters, with different backing films, and also with overlap. Typical applications: automotive, transportation, robotics, energy, power, and utilities.

ZTZ-SHX2/GP-05-B-OL is a robust EMC shield for industrial applications with permanent cable runs and high electromagnetic compatibility requirements. The design combines a double-layered, tinned copper wire braided sleeving with a cadmium-free, self-extinguishing GP-05 PVC jacket. A continuous grounding wire ensures standard-compliant equipotential bonding along the entire cable length.

The product achieves an attenuation performance of up to 80 dB in the frequency range of 100 kHz to 1 GHz. The casing provides reliable protection against mechanical impacts, UV radiation, ozone, and environmental influences. The extruded Z-lock ensures a durable and secure seal – installation requires only simple tools.

ZTZ-SHX2/GP-05-B-OL is particularly suitable for permanently installed cable systems where no regular openings are planned. The shielding is available in diameters from 20 to 100 mm. Custom sizes are available upon request.

Material Specification

ZTZ-x-SHX2-GP-05-B_Ansicht_3
ZTZ-x-SHX2-GP-05-B_Ansicht_4
ZTZ-x-SHX2-GP-05-B_Ansicht_1
ZTZ-x-SHX2-GP-05-B_Ansicht_2

Advantages

  • Two-layer copper braid with continuous EMC grounding wire
  • High shielding attenuation (40–80 dB at 100 kHz–1 GHz)
  • GP-05 sheathing: PVC, self-extinguishing, cadmium-free
  • Extruded Z-lock for permanent fixation
  • Temperature range -40°C to +105°C
  • Resistant to UV, ozone, liquids and abrasion
  • Available in Ø 20–100 mm, special lengths on request

Application

  • EMC-protected installations in machines and systems
  • Permanently installed power and signal cables in production environments
  • Control cabinet construction with shielded segments
  • Infrastructure systems with permanent protection requirements
  • arms industry
  • Building and energy technology

zipper-technik.com | +49 (0) 61 02 – 73 87-0

ZTZ-x-SHX 2/GP-05-B, cable bundling with EMI shielding

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
